22331 (TX 420) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) Main Frame and Fuel Tank Assembly Parts Diagram

Dingo Compact Utility Loader

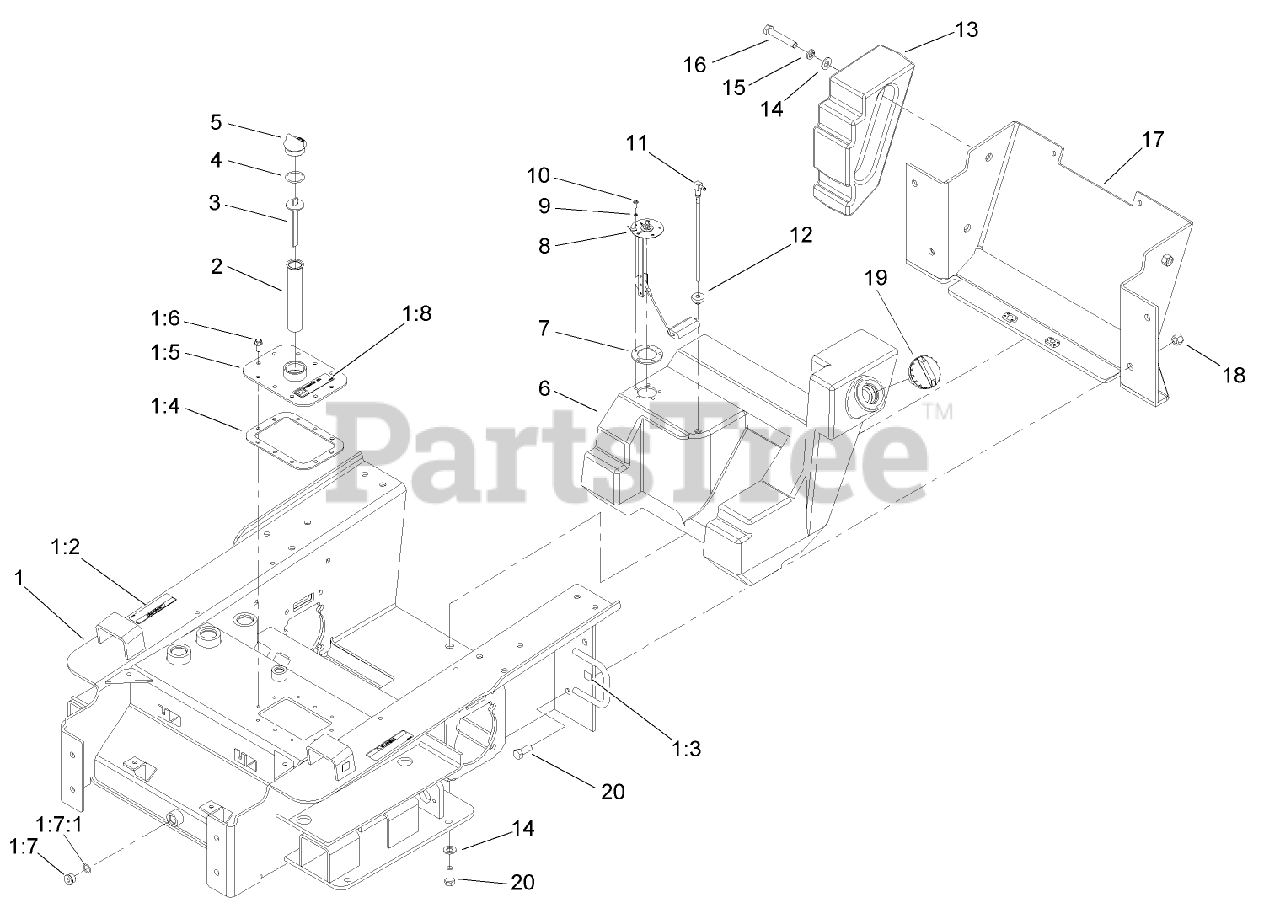

Main Frame and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 108-4640

DISCONTINUED

$

$

Not available

1:2

Toro 100-8821

DECAL-WARNING, PINCH

$11.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 100-1253

GASKET-COVER, ACCESS

$

$

Not available

1:5

Toro 104-8389-01

TANK COVER ASM

$

$

Not available

1:6

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, Qty 10

0

1:7

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

1:8

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

2

Toro 61-2790

FILTER-SCREEN

$77.99

$

Usually ships in 3-6 days

0

3

Toro 100-2097

DIPSTICK-OIL

$62.99

$

Usually ships in 3-6 days

0

4

Toro 237-123

O-RING
(Superseded to 237-101)

$3.99

$

Usually ships in 3-6 days

0

5

Toro 93-7498

PLUG-PLASTIC

$30.99

$

In Stock, only 4 left!

0

6

Toro 95-3619

See Supercession: 115-0799
(Superseded to 115-0799)

$501.99

$

Usually ships in 3-6 days

0

7

Toro 113372

GASKET-SENDER, FUEL

$4.49

$

In Stock, only 1 left!

0

8

Toro 100-1298

SENDER-FUEL

$197.99

$

Usually ships in 3-6 days

0

9

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

10

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 98-0185

PIPE-STAND

$45.99

$

In Stock, only 2 left!

0

12

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

13

Toro 99-6165-01

COUNTERWEIGHT-REAR

$508.99

$

Usually ships in 3-6 days

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

17

Toro 106-9388-01

REAR CHASSIS COVER ASM

$

$

Not available

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 93-7170

See Supercession: 115-5304
(Superseded to 115-5304)

$35.99

$

In Stock, Qty 16

0

20

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
