22333 (TX 525) - Toro Dingo Compact Utility Loader (SN: 280000001 - 280999999) (2008) Grill Assembly Parts Diagram

Dingo Compact Utility Loader

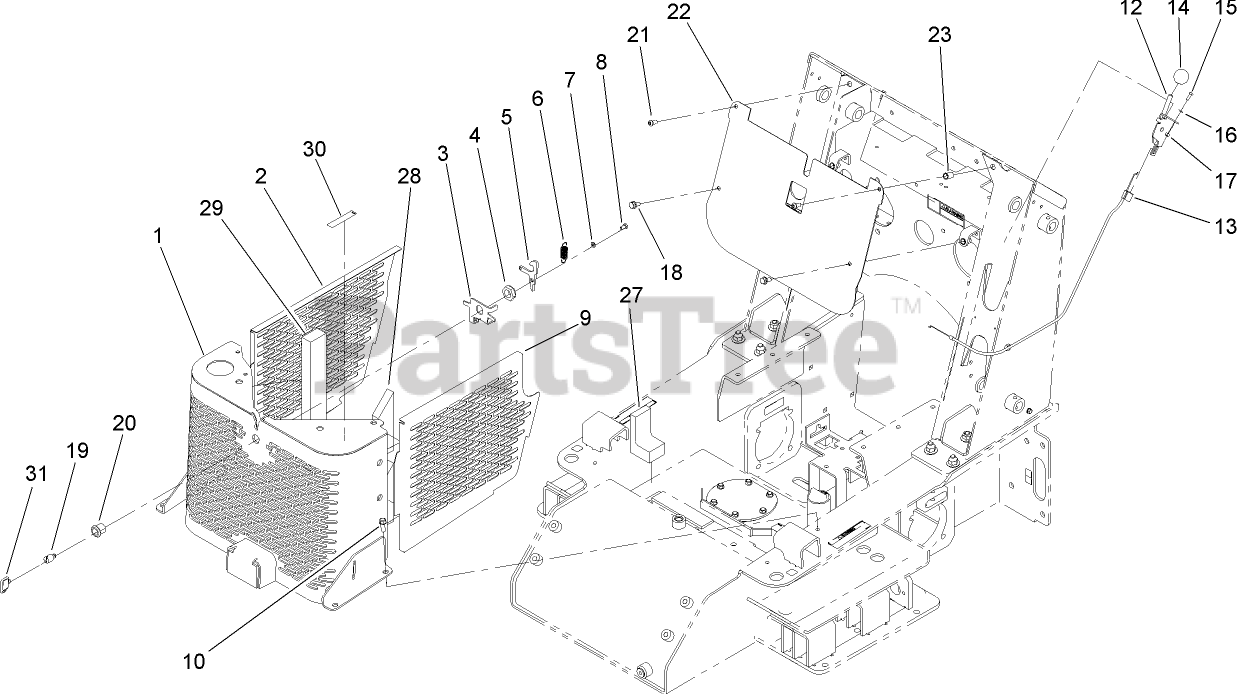

Grill Assembly Parts Diagram

  • Title

1

Toro 112-2402-03

GRILL ASM

$

$

Not available

2

Toro 108-6276-03

See Supercession: 117-9963-03
(Superseded to 117-9963-03)

$275.99

$

Usually ships in 3-6 days

0

3

Toro 106-5729-03

See Supercession: 106-5729
(Superseded to 106-5729)

$44.99

$

Usually ships in 3-6 days

0

4

Toro 3296-60

NUT-LOCK, NI

$5.99

$

In Stock, Qty 5

0

5

Toro 106-5728

CAM-LATCH

$14.99

$

Usually ships in 3-6 days

0

6

Toro 104-0869

SPRING

$14.99

$

Usually ships in 3-6 days

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

9

Toro 108-6277-03

See Supercession: 117-9964-03
(Superseded to 117-9964-03)

$275.99

$

Usually ships in 3-6 days

0

10

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Toro 108-9730

LEVER-CONTROL

$47.99

$

In Stock, only 2 left!

0

13

Toro 108-6337

CABLE-THROTTLE

$33.99

$

In Stock, only 2 left!

0

14

Toro 233-42

KNOB

$15.99

$

In Stock, only 2 left!

0

15

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

16

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-9336

INSERT-LATCH

$

$

Not available

20

Toro 106-9335

HOUSING-LATCH

$74.99

$

Usually ships in 3-6 days

0

21

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

22

Toro 108-6225

BAFFLE-ELECTRICAL

$151.99

$

Usually ships in 3-6 days

0

23

Toro 32148-8

NUT-CLINCH

$3.49

$

Usually ships in 3-6 days

0

27

Toro 108-6375

SEAL-FOAM

$38.99

$

Usually ships in 3-6 days

0

28

Toro 108-6371

SEAL-FOAM

$36.99

$

Usually ships in 3-6 days

0

29

Toro 108-6369

SEAL-FOAM

$36.99

$

Usually ships in 3-6 days

0

30

Toro 93-6681

DECAL-WARNING, FAN

$15.99

$

Usually ships in 3-6 days

0

31

Toro 99-8970

KEY-LATCH, HOOD

$24.99

$

Usually ships in 3-6 days

0
