22336 (320-D) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270999999) (2007) Starter Assembly Parts Diagram

Dingo Compact Utility Loader

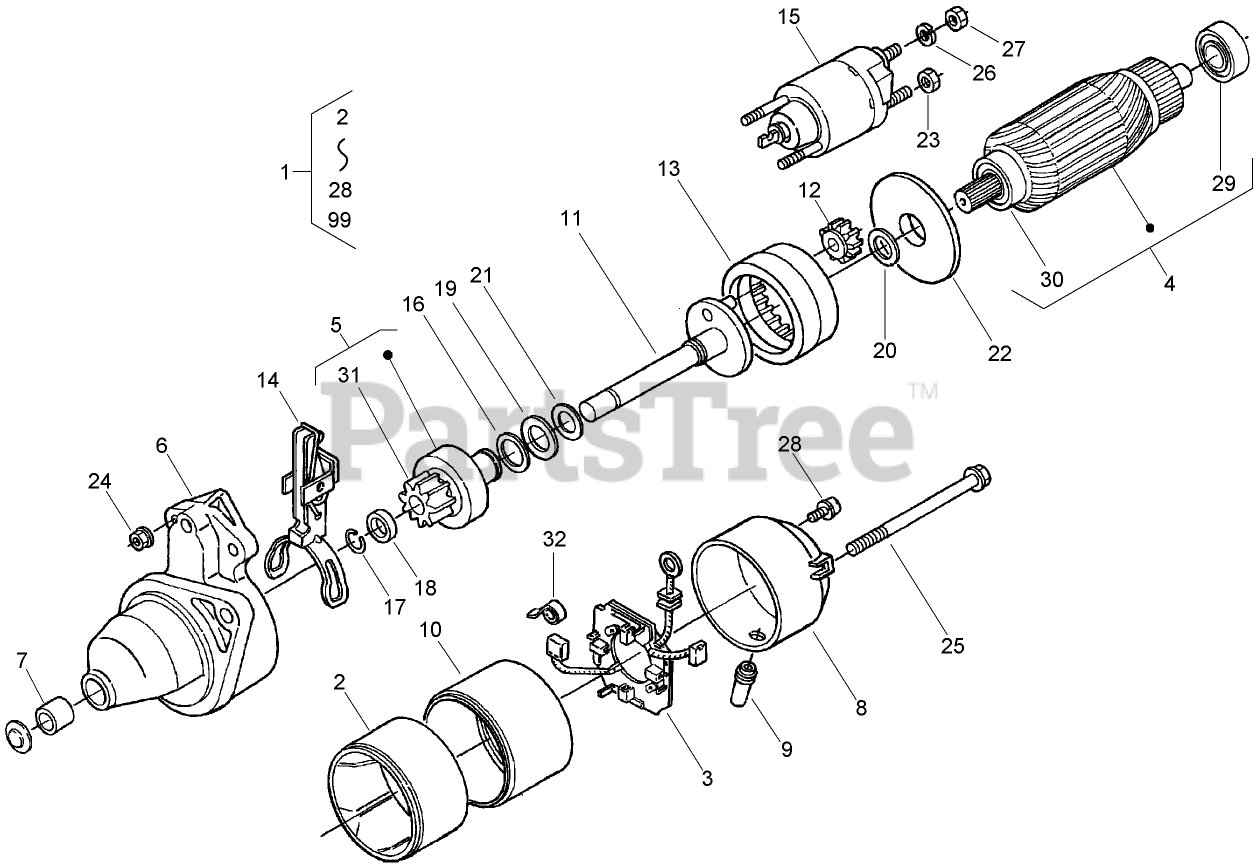

Starter Assembly Parts Diagram

  • Title

1

Toro 100-2179

STARTER ASM

$1582.99

$

Usually ships in 3-6 days

0

2

Toro 100-2181

STARTER YOKE ASM

$154.99

$

Usually ships in 3-6 days

0

3

Toro 100-2222

HOLDER ASM

$36.99

$

Usually ships in 3-6 days

0

4

Toro 100-2182

ARMATURE ASM

$308.99

$

Usually ships in 3-6 days

0

5

Toro 100-2185

STARTER CLUTCH ASM

$223.99

$

Usually ships in 3-6 days

0

6

Toro 100-2180

STARTER HOUSING ASM

$323.99

$

Usually ships in 3-6 days

0

7

Toro 100-2183

BEARING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 100-2186

FRAME ASM

$123.99

$

Usually ships in 3-6 days

0

9

Toro 100-2213

COVER

$8.49

$

Usually ships in 3-6 days

0

10

Toro 100-2223

BEARING ASM

$25.99

$

Usually ships in 3-6 days

0

11

Toro 100-2187

STARTER SHAFT ASM

$61.99

$

Usually ships in 3-6 days

0

12

Toro 100-2220

GEAR

$36.99

$

Usually ships in 3-6 days

0

13

Toro 100-2221

GEAR

$100.99

$

Usually ships in 3-6 days

0

14

Toro 100-2218

LEVER

$11.99

$

Usually ships in 3-6 days

0

15

Toro 100-2211

MAGNETIC SWITCH ASM

$415.99

$

Usually ships in 3-6 days

0

16

Toro 100-2219

RING-SNAP

$18.99

$

Usually ships in 3-6 days

0

17

Toro 100-2212

RING-SNAP

$11.99

$

Usually ships in 3-6 days

0

18

Toro 100-2216

COLLAR

$27.99

$

Usually ships in 3-6 days

0

19

Toro 100-2224

WASHER-PLAIN

$11.99

$

Usually ships in 3-6 days

0

20

Toro 100-2225

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

21

Toro 100-2226

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

22

Toro 100-2227

PLATE

$21.99

$

Usually ships in 3-6 days

0

23

Toro 100-2243

See Supercession: 99-8371
(Superseded to 99-8371)

$5.99

$

Usually ships in 3-6 days

0

24

Toro 100-1813

NUT

$3.99

$

Usually ships in 3-6 days

0

25

Toro 100-2210

BOLT-THROUGH

$5.99

$

Usually ships in 3-6 days

0

26

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

27

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

28

Toro 100-2188

SCREW

$4.99

$

Usually ships in 3-6 days

0

29

Toro 98-9412

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

30

Toro 98-9411

BEARING-BALL

$23.99

$

Usually ships in 3-6 days

0

31

Toro 112-2833

GEAR-PINION

$197.99

$

Usually ships in 3-6 days

0

32

Toro 98-7750

SPRING-BRUSH

$3.99

$

Usually ships in 3-6 days

0

99

Toro 99-1434

WIRE-LEAD

$81.99

$

Usually ships in 3-6 days

0
