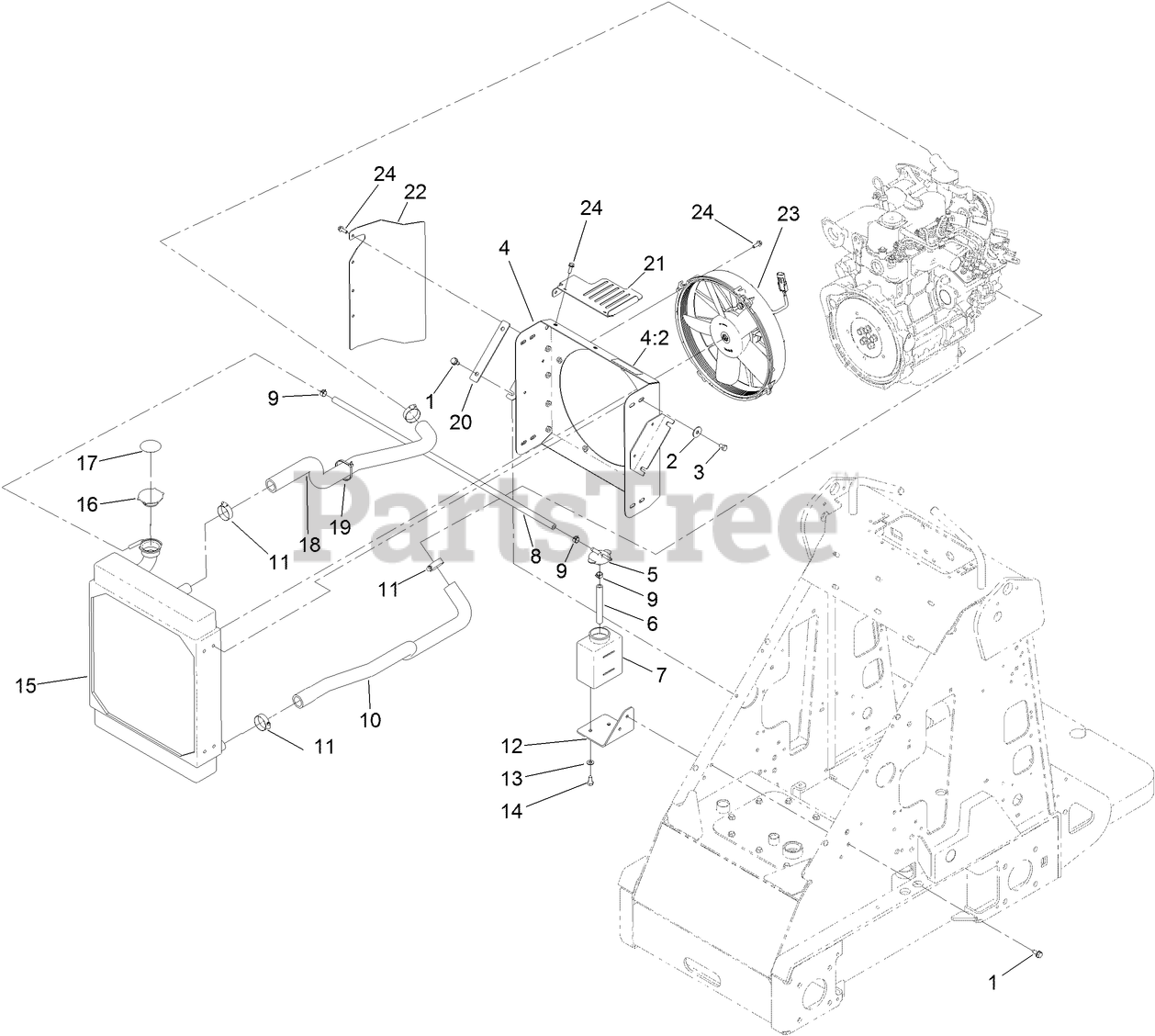

22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 401350000 - 404339999) Radiator and Fan Assembly Parts Diagram

Dingo Compact Utility Loader

Radiator and Fan Assembly Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

3

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

4

Toro 130-2832

MOUNT-RADIATOR

$344.99

$

Usually ships in 3-6 days

0

4:2

Toro 120-0627

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

5

Toro 93-2048

CAP-TANK, OVERFLOW

$

$

Not available

6

Toro 108-3283

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

7

Toro 93-2049

TANK-OVERFLOW

$119.99

$

Usually ships in 3-6 days

0

8

Toro 110-6186

HOSE-FUEL

$19.99

$

In Stock, only 1 left!

0

9

Toro 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

10

Toro 99-5042

HOSE-RADIATOR, LOWER

$154.99

$

Usually ships in 3-6 days

0

11

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

12

Toro 99-1446-01

MOUNT-TANK, OVERFLOW

$34.99

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0

15

Toro 99-5125

RADIATOR
(Superseded to 139-0771)

$1743.99

$

In Stock, only 1 left!

0

16

Toro 66-3240

CAP-RADIATOR

$29.99

$

In Stock, only 2 left!

0

17

Toro 106-5976

DECAL-WARNING
(Superseded to 117-3276)

$12.99

$

Usually ships in 3-6 days

0

18

Toro 99-5043

HOSE-RADIATOR, UPPER

$154.99

$

Usually ships in 3-6 days

0

19

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

20

Toro 108-9746-01

PLATE-CLAMP, RADIATOR

$19.99

$

Usually ships in 3-6 days

0

21

Toro 130-2831-03

FAN-GUARD

$71.99

$

Usually ships in 3-6 days

0

22

Toro 130-2833-03

PLATE-BAFFLE

$57.99

$

Usually ships in 3-6 days

0

23

Toro 131-0558

FAN

$527.99

$

Usually ships in 3-6 days

0

24

Toro 117-8304

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0
