22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 413000000 - 415299999) Cylinder Lock and Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

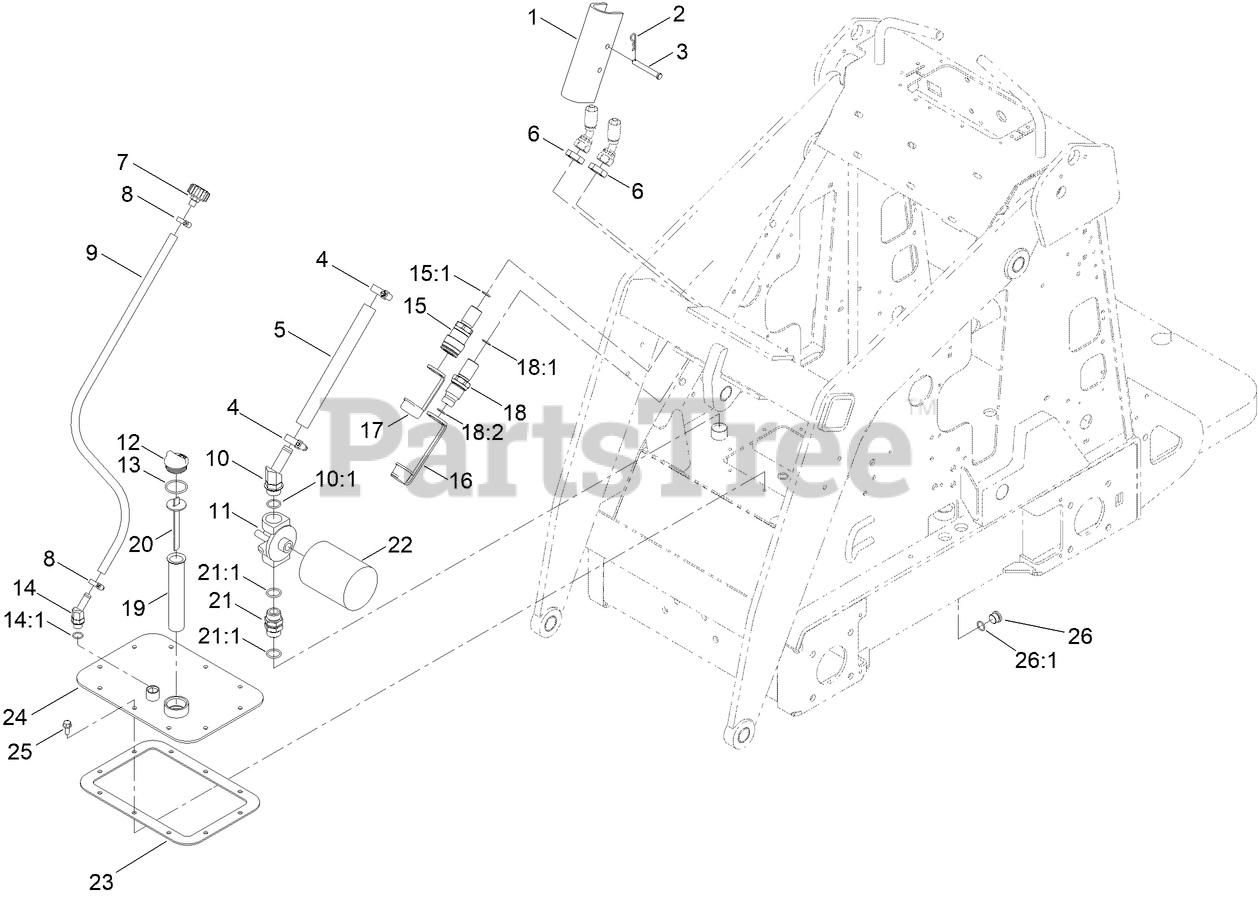

Cylinder Lock and Hydraulic Assembly Parts Diagram

  • Title

1

Toro 98-4675-01

LOCK-CYLINDER

$41.99

$

Usually ships in 3-6 days

0

2

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

3

Toro 283-52

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

4

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

5

Toro 98-4745

HOSE-HYD, SUCTION, HI

$69.99

$

Usually ships in 3-6 days

0

6

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

7

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

8

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

9

Toro 98-2708

HOSE-VENT

$53.99

$

Usually ships in 3-6 days

0

10

Toro 354-127

FITTING-ELBOW45

$88.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

11

Toro 92-5821

HEAD-FILTER

$217.99

$

Usually ships in 3-6 days

0

12

Toro 93-7498

PLUG-PLASTIC

$30.99

$

In Stock, only 4 left!

0

13

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

14

Toro 354-126

FITTING-ELBOW, 45

$57.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

15

Toro 105-8394

BULKHEAD COUPLER ASM

$338.99

$

In Stock, only 1 left!

0

15:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

16

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

0

17

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

0

18

Toro 105-8395

BULKHEAD NIPPLE ASM

$270.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

18:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

19

Toro 61-2790

FILTER-SCREEN

$77.99

$

Usually ships in 3-6 days

0

20

Toro 100-2097

DIPSTICK-OIL

$62.99

$

Usually ships in 3-6 days

0

21

Toro 98-9906

FITTING-THREAD, STRAIGHT

$73.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

22

Toro 54-0110

FILTER-OIL, TRANSMISSION

$16.99

$

In Stock, Qty 8

0

23

Toro 98-9927

GASKET-COVER

$78.99

$

Usually ships in 3-6 days

0

24

Toro 100-1713-01

COVER

$209.99

$

Usually ships in 3-6 days

0

25

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, Qty 10

0

26

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0
