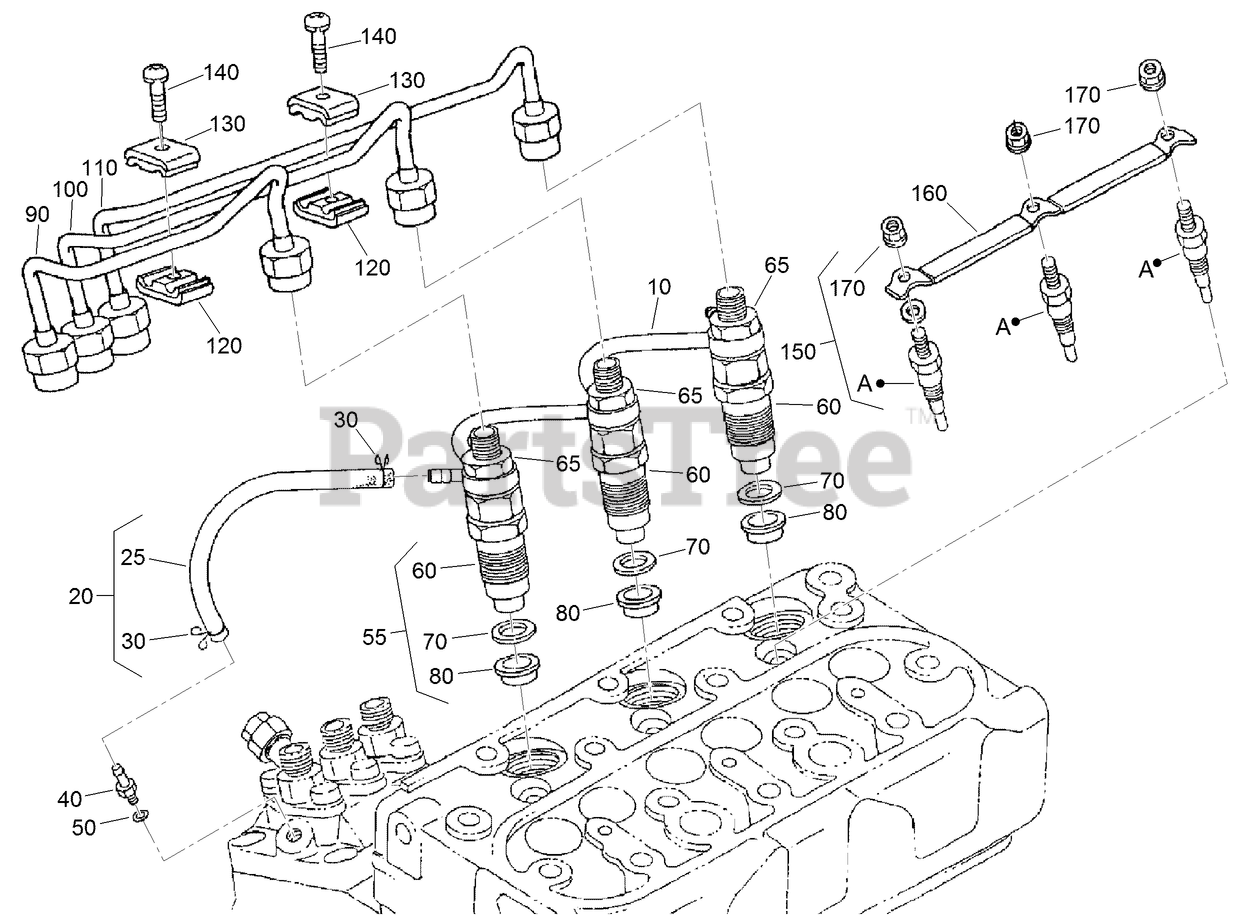

22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 413000000 - 415299999) Nozzle Holder and Glow Plug Assembly Parts Diagram

Dingo Compact Utility Loader

Nozzle Holder and Glow Plug Assembly Parts Diagram

  • Title

10

Toro 100-1960

OVER FLOW PIPE ASM

$87.99

$

Usually ships in 3-6 days

0

20

Toro 98-9420

OVERFLOW PIPE ASM

$6.49

$

Usually ships in 3-6 days

0

25

Toro 112-0182

PIPE-OVERFLOW

$6.49

$

Usually ships in 3-6 days

0

30

Toro 98-7671

CLIP-PIPE

$3.99

$

Usually ships in 3-6 days

0

40

Toro 98-9431

SCREW-BLEEDER, AIR

$22.99

$

Usually ships in 3-6 days

0

50

Toro 98-7654

GASKET

$13.99

$

Usually ships in 3-6 days

0

55

Toro 130-1305

NOZZLE HOLDER KIT

$648.99

$

Usually ships in 3-6 days

0

60

Toro 130-1303

NOZZLE HOLDER ASM

$588.99

$

Usually ships in 3-6 days

0

65

Toro 121-2411

NUT

$9.99

$

Usually ships in 3-6 days

0

70

Toro 98-7676

GASKET

$4.49

$

In Stock, Qty 8

0

80

Toro 98-7677

SEAL-HEAT

$15.99

$

In Stock, Qty 5

0

90

Toro 130-1414

PIPE-INJECTION

$31.99

$

Usually ships in 3-6 days

0

100

Toro 130-1415

PIPE-INJECTION

$31.99

$

Usually ships in 3-6 days

0

110

Toro 130-1416

PIPE-INJECTION

$25.99

$

Usually ships in 3-6 days

0

120

Toro 98-7682

CLAMP-PIPE

$9.99

$

Usually ships in 3-6 days

0

130

Toro 98-7683

CLAMP-PIPE

$5.99

$

Usually ships in 3-6 days

0

140

Toro 98-7684

SCREW (W/WASHER)

$0.99

$

Usually ships in 3-6 days

0

150

Toro 130-1411

PLUG-GLOW

$100.99

$

Usually ships in 3-6 days

0

160

Toro 100-2037

CORD-PLUG, GLOW

$17.99

$

Usually ships in 3-6 days

0

170

Toro 99-8377

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0
