22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 413000000 - 415299999) Switch, Hour Meter and Wire Harness Assembly Parts Diagram

Dingo Compact Utility Loader

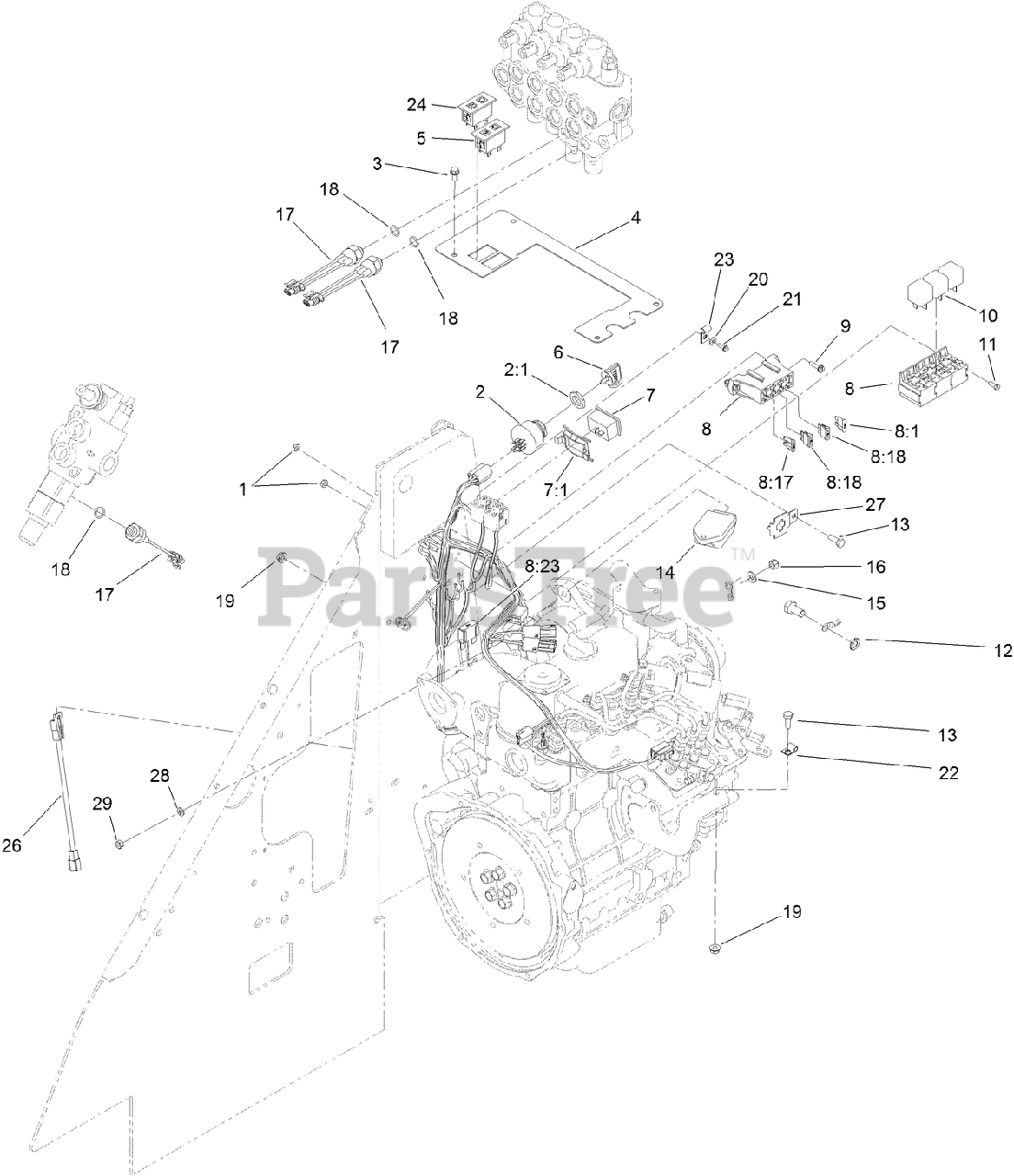

Switch, Hour Meter and Wire Harness Assembly Parts Diagram

  • Title

1

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 5

0

2

Toro 104-2541

SWITCH ASM

$43.99

$

In Stock, Qty 20+

0

2:1

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

2:2

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-8351-03

PLATE-COVER

$39.99

$

Usually ships in 3-6 days

0

5

Toro 100-8070

LAMP-WARNING

$46.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

7

Toro 104-7429

HOUR METER ASM

$343.99

$

Usually ships in 3-6 days

0

7:1

Toro 104-4234

CLIP-MOUNTING

$7.49

$

Usually ships in 3-6 days

0

8

Toro 131-5710

HARNESS-WIRE

$703.99

$

Usually ships in 3-6 days

0

8:1

Toro 99-6124

FUSE-40 AMP

$5.99

$

In Stock, Qty 9

0

8:17

Toro 114241

FUSE-BLADE, 7.5 AMP

$12.99

$

Usually ships in 3-6 days

0

8:18

Toro 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 8

0

8:23

Toro 94-8002

FUSE-BLADE, 50 AMP

$30.99

$

Usually ships in 3-6 days

0

9

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

10

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

11

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

12

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 107-9097

See Supercession: 98-7611
(Superseded to 98-7611)

$505.99

$

Usually ships in 3-6 days

0

15

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

16

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

17

Toro 72-4310

SWITCH-BALL

$112.99

$

Usually ships in 3-6 days

0

18

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

19

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 2412-31

CLAMP-BODEN

$2.49

$

Usually ships in 3-6 days

0

23

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

24

Toro 100-8071

LAMP-WARNING

$46.99

$

Usually ships in 3-6 days

0

26

Toro 112-2463

HARNESS-LINK, FUSIBLE

$26.99

$

Usually ships in 3-6 days

0

27

Toro 114-5502

CLIP-FUSE

$17.99

$

Usually ships in 3-6 days

0

28

Toro 43-5930

WASHER-LOCK, SPRING

$1.49

$

Usually ships in 3-6 days

0

29

Toro 43-2830

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0
