22342 HD (TX 427) - Toro Dingo Narrow Track Compact Utility Loader (SN: 413000000 - 414599999) Wire Harness, Temperature Sensor and Shield Assembly Parts Diagram

Dingo Narrow Track Compact Utility Loader

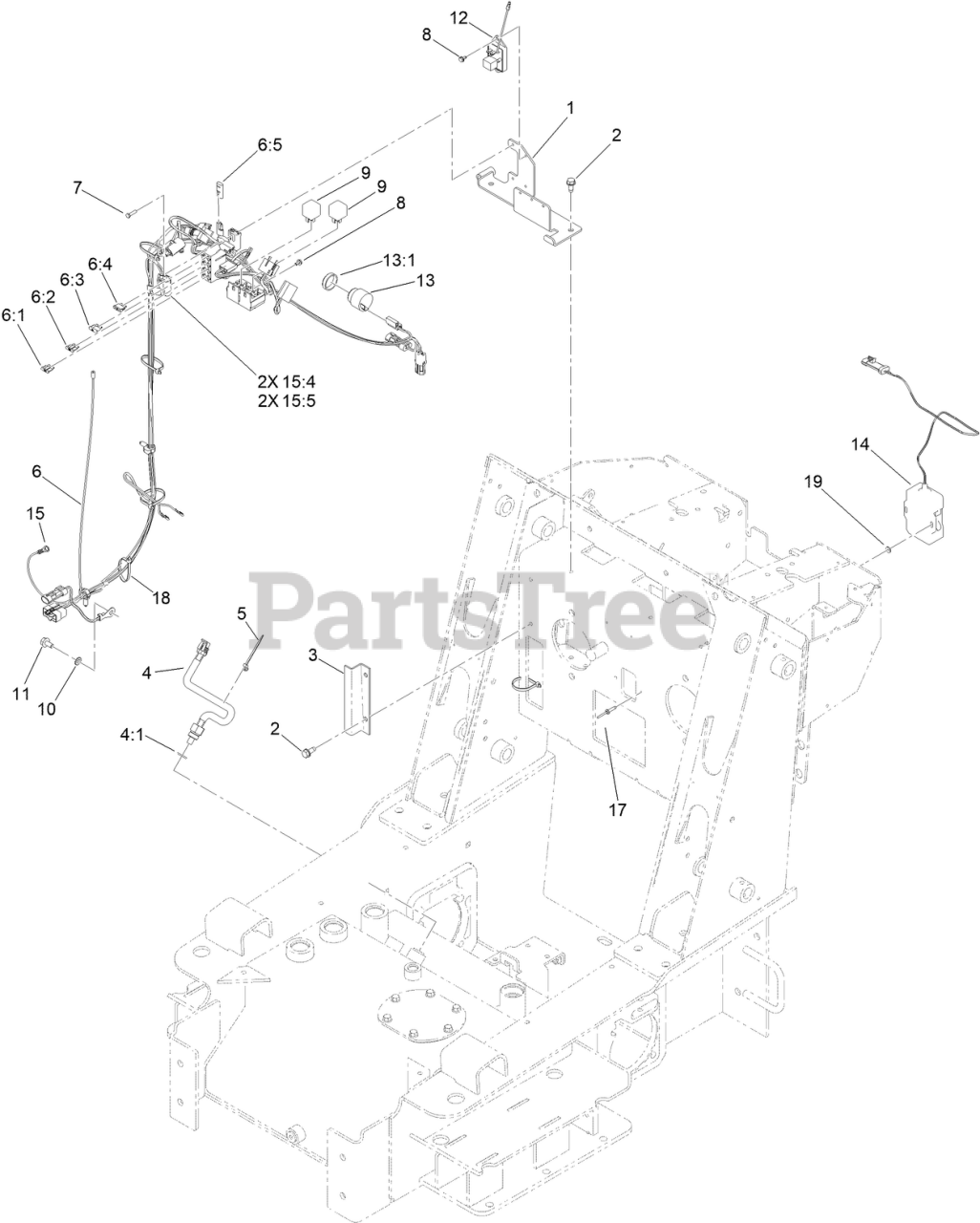

Wire Harness, Temperature Sensor and Shield Assembly Parts Diagram

  • Title

1

Toro 117-1735-03

BRACKET-FUSE/RELAY

$114.99

$

Usually ships in 3-6 days

0

2

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

3

Toro 100-6117-03

SHIELD-WIRING

$

$

Currently unavailable

4

Toro 98-2765

SWITCH-TEMPERATURE

$177.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5

Toro 3290-381

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

6

Toro 117-1732

HARNESS-WIRE

$469.99

$

Usually ships in 3-6 days

0

6:1

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

6:2

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

6:3

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, only 4 left!

0

6:4

Toro 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 8

0

6:5

Toro 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

7

Toro 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

8

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

9

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

10

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 33104-016

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

12

Toro 99-7422

MODULE-IGNITION DELAY

$56.99

$

In Stock, only 1 left!

0

13

Toro 80-9330

AUDIO ALARM ASM

$161.99

$

Usually ships in 3-6 days

0

13:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

14

Toro 131-0560

GPS ASM

$2721.99

$

Usually ships in 3-6 days

0

15

Toro 131-0567

HARNESS-WIRE, GPS

$113.99

$

Usually ships in 3-6 days

0

15:4

Toro 121-8864

FUSE-MINI BLADE, 5 AMP

$5.99

$

Usually ships in 3-6 days

0

15:5

Toro 32180-101

COVER-FUSE, SINGLE

$16.99

$

Usually ships in 3-6 days

0

17

Toro 3269-28

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0
