22351 (TX 700) - Toro Dingo Narrow Track Compact Utility Loader (SN: 417200000 - 999999999) Hood and Manual Tube Assembly Parts Diagram

Dingo Narrow Track Compact Utility Loader

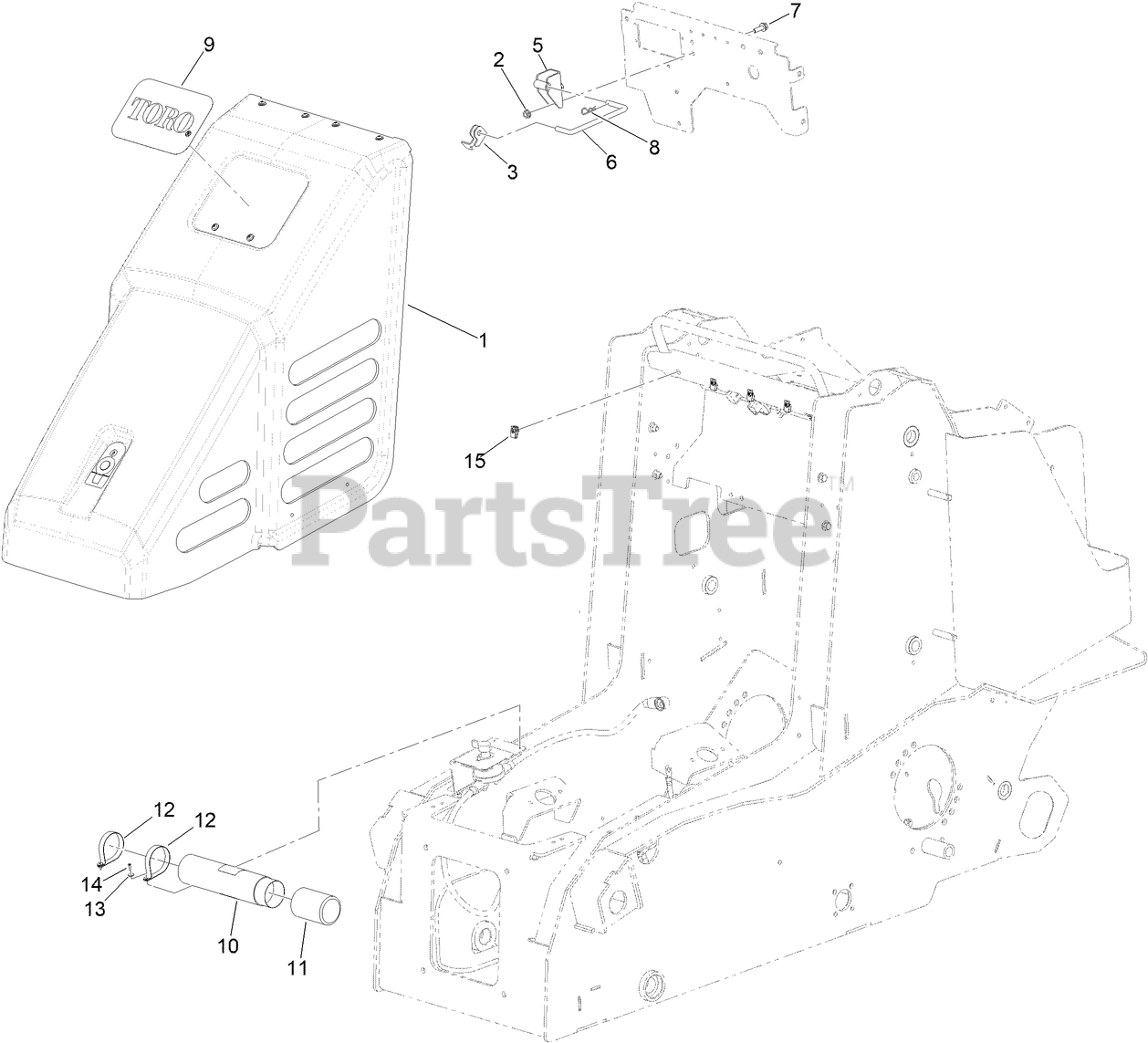

Hood and Manual Tube Assembly Parts Diagram

  • Title

1

Toro 140-2936

HOOD ASM

$1096.99

$

Usually ships in 3-6 days

0

2

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Toro 115-0714

BRACKET-LATCH, LOCKING

$28.99

$

In Stock, only 1 left!

0

5

Toro 161-2396-0P

BRACKET ASM, ROD

$

$

Currently unavailable

6

Toro 108-6357

ROD-SUPPORT, HOOD

$79.99

$

In Stock, only 2 left!

0

7

Toro 110-3144

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

8

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

9

Toro 92-1242

DECAL

$33.99

$

Usually ships in 3-6 days

0

10

Toro 104-7050

TUBE-MANUAL

$10.99

$

Usually ships in 3-6 days

0

11

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

12

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

13

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

14

Toro 3269-10

WASHER-BACK

$0.99

$

Usually ships in 3-6 days

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0
