22352 (TX 700) - Toro Dingo Wide Track Compact Utility Loader (SN: 415287954 - 415299999) Generator Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

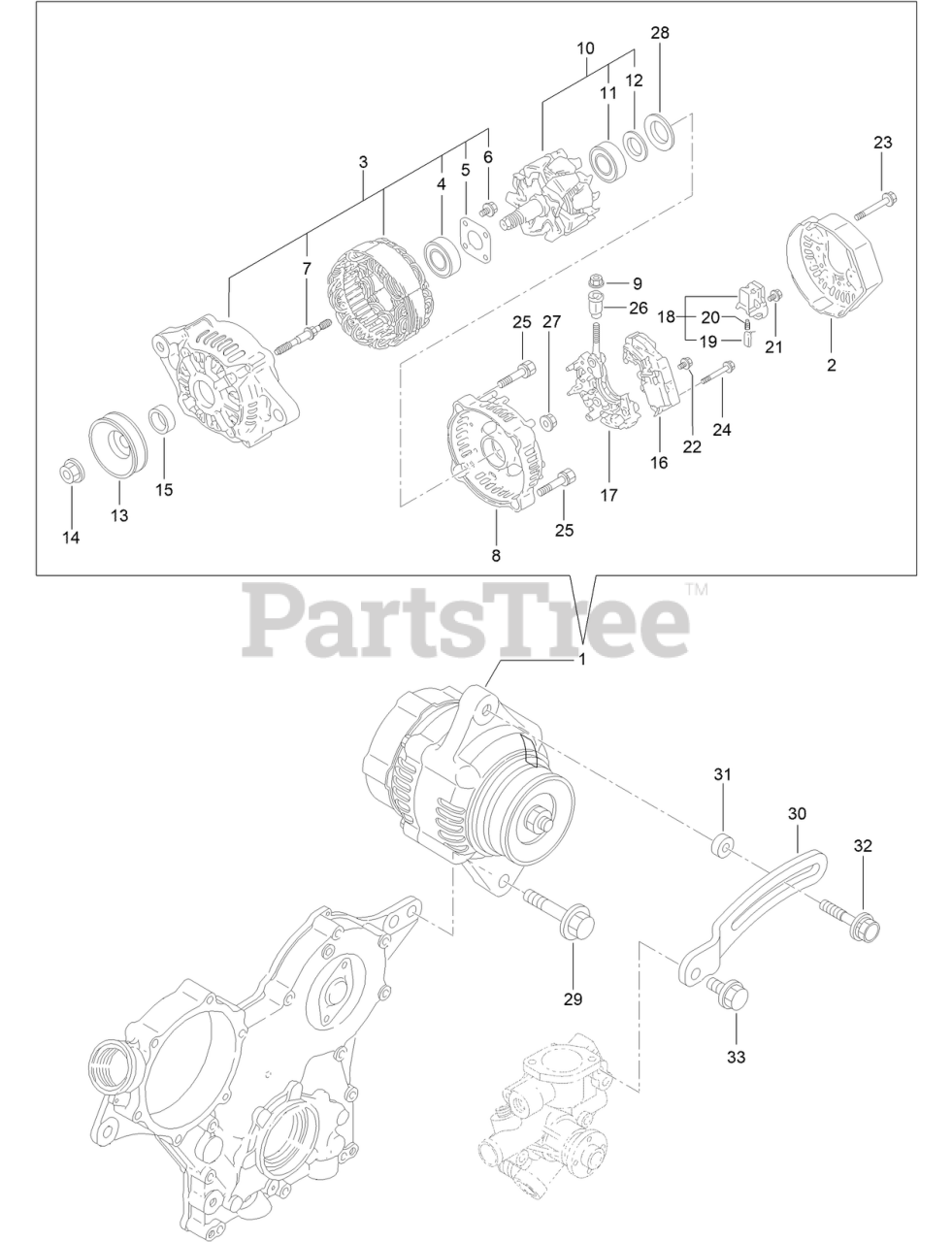

Generator Assembly Parts Diagram

  • Title

1

Toro 140-7162

ALTERNATOR (12V-40A)

$1024.99

$

Usually ships in 3-6 days

0

2

Toro 127-2999

COVER

$35.99

$

Usually ships in 3-6 days

0

3

Toro 135-4025

FRAME ASM

$993.99

$

Usually ships in 3-6 days

0

4

Toro 127-2958

BEARING-BALL

$34.99

$

Usually ships in 3-6 days

0

5

Toro 127-2959

PLATE-RETAINER

$

$

Currently unavailable

6

Toro 127-2960

SCREW

$

$

Currently unavailable

7

Toro 127-2961

STUD

$

$

Currently unavailable

8

Toro 140-7163

REAR FRAME ASM

$138.99

$

Usually ships in 3-6 days

0

9

Toro 127-3190

NUT

$5.99

$

Usually ships in 3-6 days

0

10

Toro 127-2951

ROTOR ASM

$

$

Currently unavailable

11

Toro 127-2983

BEARING-BALL

$31.99

$

Usually ships in 3-6 days

0

12

Toro 127-2962

COVER

$

$

Currently unavailable

13

Toro 127-2954

PULLEY

$81.99

$

Usually ships in 3-6 days

0

14

Toro 127-2955

NUT

$

$

Currently unavailable

15

Toro 127-2957

COLLAR

$19.99

$

Usually ships in 3-6 days

0

16

Toro 145-7881

REGULATOR ASSY

$965.99

$

Usually ships in 3-6 days

0

17

Toro 127-2963

HOLDER

$404.99

$

Usually ships in 3-6 days

0

18

Toro 127-2993

HOLDER

$114.99

$

Usually ships in 3-6 days

0

19

Toro 127-2956

BRUSH ASM

$14.99

$

Usually ships in 3-6 days

0

20

Toro 127-2964

SPRING

$5.49

$

Usually ships in 3-6 days

0

21

Toro 127-2965

SCREW

$

$

Currently unavailable

22

Toro 127-2966

SCREW

$

$

Currently unavailable

23

Toro 127-2967

BOLT

$

$

Currently unavailable

24

Toro 127-2968

SCREW

$5.99

$

Usually ships in 3-6 days

0

25

Toro 127-2969

BOLT

$

$

Currently unavailable

26

Toro 127-2970

BUSHING-INSULATION

$

$

Currently unavailable

27

Toro 127-2971

NUT

$

$

Currently unavailable

28

Toro 127-2972

WASHER

$

$

Currently unavailable

29

Toro 135-4277

BOLT

$3.99

$

Usually ships in 3-6 days

0

30

Toro 125-6947

SPACER

$25.99

$

Usually ships in 3-6 days

0

31

Toro 140-7166

SPACER-ADJUSTER

$23.99

$

Usually ships in 3-6 days

0

32

Toro 125-7134

BOLT

$30.99

$

Usually ships in 3-6 days

0

33

Toro 125-7595

BOLT

$2.99

$

Usually ships in 3-6 days

0
