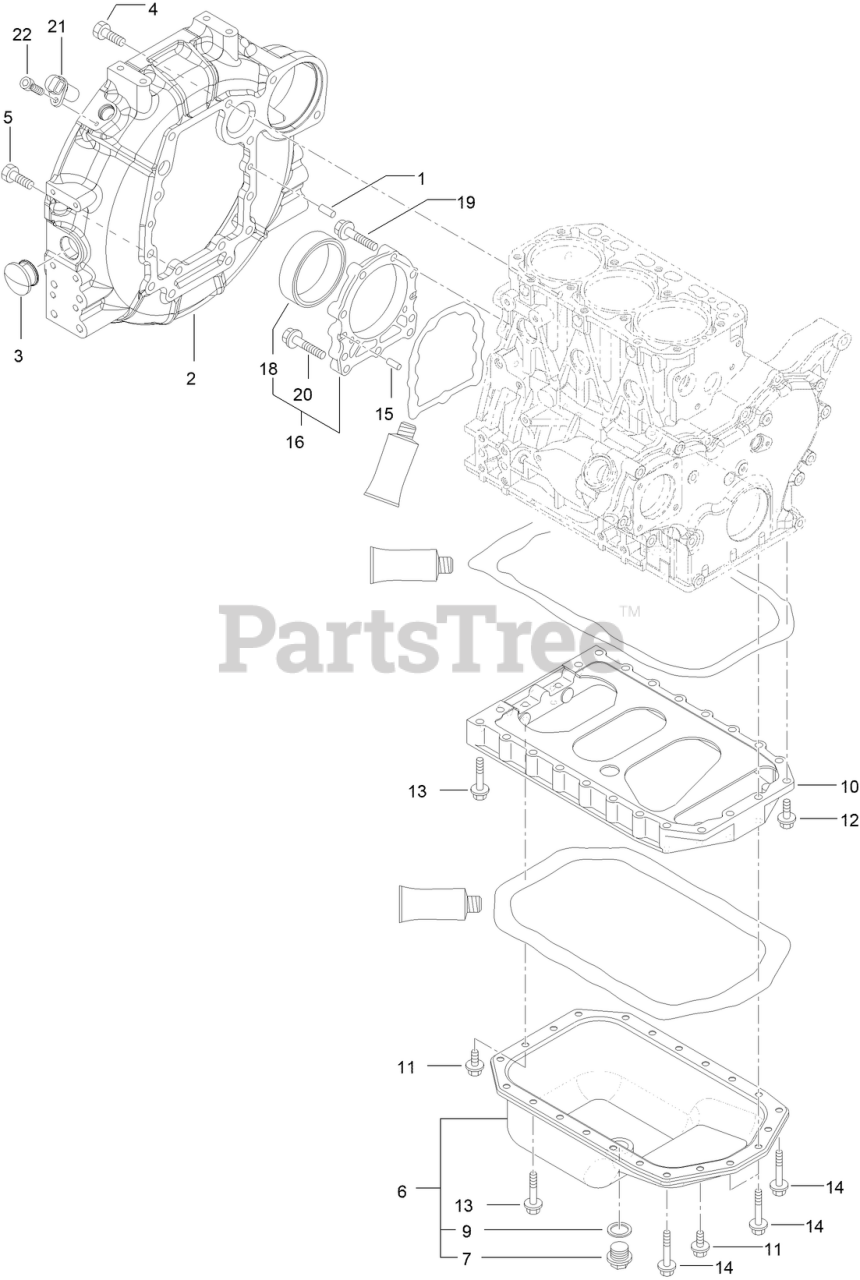

22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Flywheel Housing and Oil Sump Assembly Parts Diagram

Dingo Compact Utility Loader

Flywheel Housing and Oil Sump Assembly Parts Diagram

  • Title

1

Toro 125-6995

PIN

$6.49

$

Usually ships in 3-6 days

0

2

Toro 127-3025

HOUSING-FLYWHEEL

$

$

Currently unavailable

3

Toro 125-6910

CAP

$16.99

$

Usually ships in 3-6 days

0

4

Toro 125-7226

BOLT

$4.99

$

Usually ships in 3-6 days

0

5

Toro 125-7227

BOLT

$5.99

$

Usually ships in 3-6 days

0

6

Toro 127-3755

OIL PAN ASM

$746.99

$

Usually ships in 3-6 days

0

7

Toro 125-6912

PLUG-DRAIN

$31.99

$

Usually ships in 3-6 days

0

9

Toro 125-7177

WASHER-SEAL

$8.49

$

Usually ships in 3-6 days

0

10

Toro 127-3756

SPACER

$715.99

$

Usually ships in 3-6 days

0

11

Toro 100-6928

BOLT
(Superseded to 125-7214)

$4.49

$

Usually ships in 3-6 days

0

12

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

13

Toro 125-7219

BOLT

$5.49

$

Usually ships in 3-6 days

0

14

Toro 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0

15

Toro 125-6995

PIN

$6.49

$

Usually ships in 3-6 days

0

16

Toro 125-6996

CASE ASM

$410.99

$

Usually ships in 3-6 days

0

18

Toro 125-7106

SEAL-OIL

$30.99

$

Usually ships in 3-6 days

0

19

Toro 125-7045

BOLT

$6.99

$

Usually ships in 3-6 days

0

20

Toro 125-7217

BOLT

$5.49

$

Usually ships in 3-6 days

0

21

Toro 127-3062

SENSOR-REV, FLYWHEEL

$193.99

$

Usually ships in 3-6 days

0

22

Toro 127-3184

BOLT

$5.49

$

Usually ships in 3-6 days

0
