22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Fuel Line Assembly Parts Diagram

Dingo Compact Utility Loader

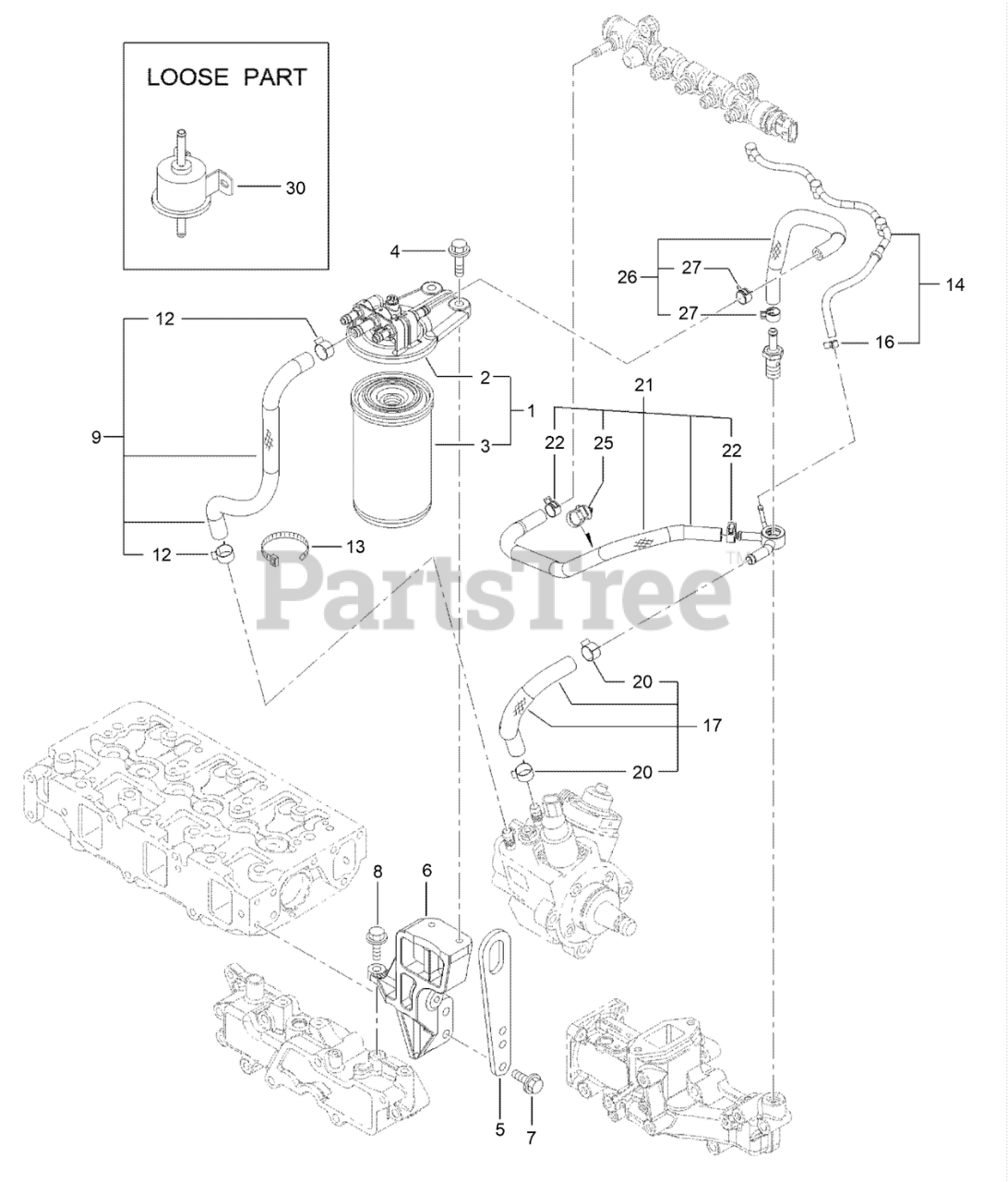

Fuel Line Assembly Parts Diagram

  • Title

1

Toro 139-6016

FUEL/OIL FILTER ASM

$179.99

$

Usually ships in 3-6 days

0

2

Toro 127-3076

FUEL/OIL FILTER BRACKET ASM

$135.99

$

Usually ships in 3-6 days

0

3

Toro 139-6017

FILTER-FUEL

$73.99

$

In Stock, Qty 5

0

4

Toro 125-7216

BOLT

$4.49

$

Usually ships in 3-6 days

0

5

Toro 125-7111

LIFTER

$10.99

$

Usually ships in 3-6 days

0

6

Toro 127-3815

FILTER BRACKET ASM

$95.99

$

Usually ships in 3-6 days

0

7

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

8

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

9

Toro 127-3077

FUEL PIPE ASM

$114.99

$

Usually ships in 3-6 days

0

12

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

13

Toro 127-2981

BAND

$

$

Currently unavailable

14

Toro 131-2729

JOINT-HOSE, 4 WAY

$251.99

$

Usually ships in 3-6 days

0

16

Toro 127-3172

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

17

Toro 127-3078

FUEL PIPE ASM

$146.99

$

Usually ships in 3-6 days

0

20

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

21

Toro 127-3817

FUEL PIPE ASM

$186.99

$

Usually ships in 3-6 days

0

22

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

25

Toro 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

26

Toro 127-3079

FUEL PIPE ASM

$106.99

$

Usually ships in 3-6 days

0

27

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

30

Toro 121-5613

PUMP-FUEL, ELECTRIC

$369.99

$

Usually ships in 3-6 days

0
