22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Main Frame Assembly Parts Diagram

Dingo Compact Utility Loader

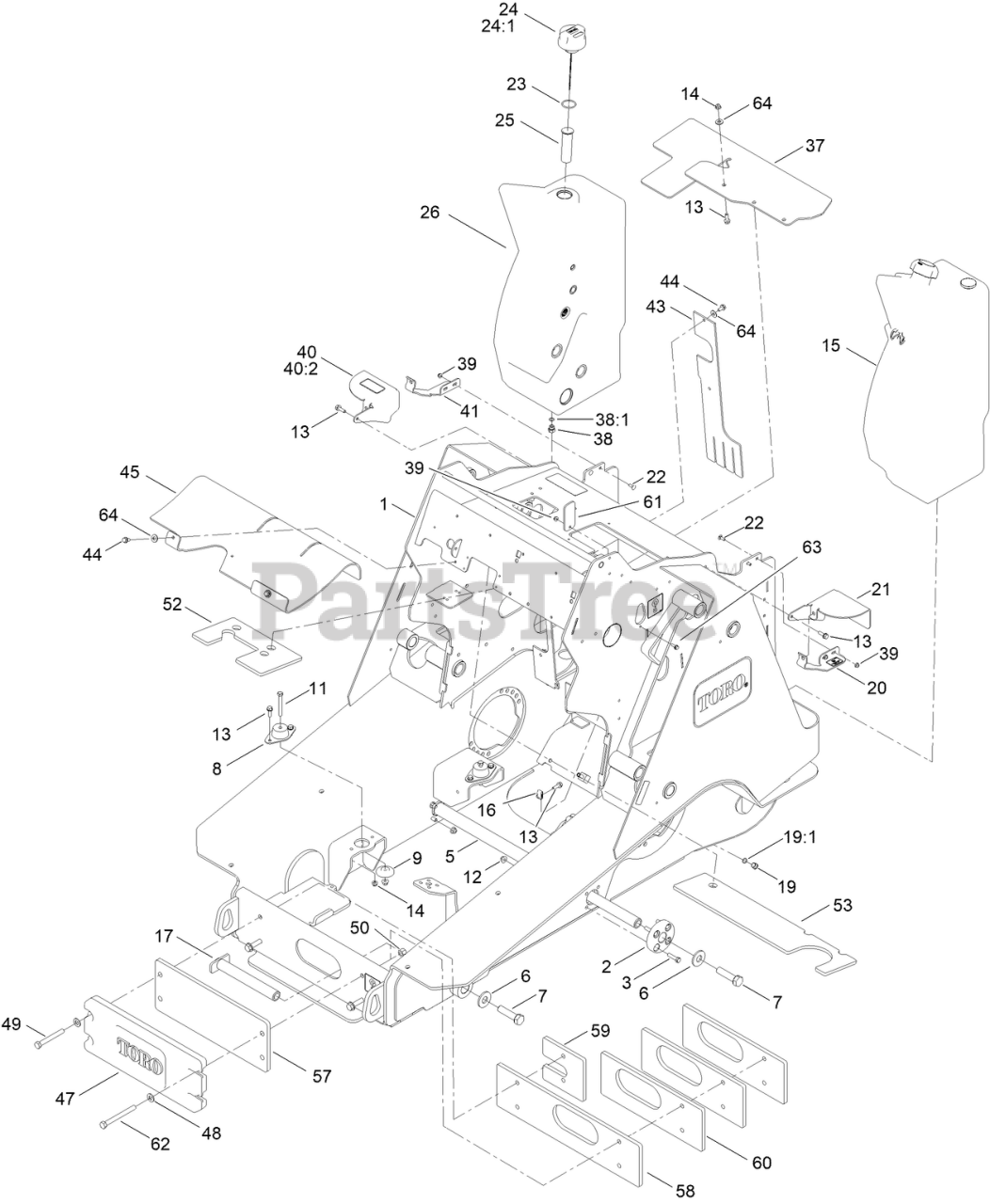

Main Frame Assembly Parts Diagram

  • Title

1

Toro 139-4750

MAIN FRAME ASM,

$18988.99

$

Usually ships in 3-6 days

0

2

Toro 132-9074

HUB-SHAFT

$148.99

$

Usually ships in 3-6 days

0

3

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 138-2426

SHAFT-TRACK
(Superseded to 161-7270)

$368.99

$

Usually ships in 3-6 days

0

6

Toro 99-2659

WASHER

$12.99

$

Usually ships in 3-6 days

0

7

Toro 328-25

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

8

Toro 125-5244

MOUNT-ENGINE

$54.99

$

Usually ships in 3-6 days

0

9

Toro 138-6462

SUPPORT-ISOLATOR

$6.99

$

Usually ships in 3-6 days

0

11

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 140-1679

TANK ASM

$563.99

$

Usually ships in 3-6 days

0

16

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

17

Toro 140-1687

SHAFT-FRONT,TRACK

$105.99

$

Usually ships in 3-6 days

0

19

Toro 353-989

PLUG-HEX, HOLLOW

$26.99

$

In Stock, only 1 left!

0

19:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

20

Toro 144-0723

BRACKET-TANK,(SERVICE)

$64.99

$

Usually ships in 3-6 days

0

21

Toro 144-0722-03

BRACKET-TANK

$42.99

$

Usually ships in 3-6 days

0

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 94-8166

O-RING

$5.49

$

Usually ships in 3-6 days

0

24

Toro 117-0193

CAP-HYDRAULIC, VENTED BREATHER

$139.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

25

Toro 61-2790

FILTER-SCREEN

$77.99

$

Usually ships in 3-6 days

0

26

Toro 140-1775

HYDRAULIC TANK W/INSERTS

$1158.99

$

Usually ships in 3-6 days

0

37

Toro 140-1772

BAFFLE-RUBBER

$50.99

$

Usually ships in 3-6 days

0

38

Toro 353-508

PLUG-HH

$9.49

$

In Stock, only 2 left!

0

38:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

39

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Toro 145-4284

BRACKET-HYD TANK

$119.99

$

Usually ships in 3-6 days

0

40:2

Toro 125-8483

DECAL-HYD FLUID

$19.99

$

Usually ships in 3-6 days

0

41

Toro 144-0724-03

BRACKET-TANK, RH

$48.99

$

Usually ships in 3-6 days

0

43

Toro 144-0732

BAFFLE-SIDE

$18.99

$

Usually ships in 3-6 days

0

44

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

45

Toro 144-0733

BAFFLE-CONSOLE

$65.99

$

Usually ships in 3-6 days

0

47

Toro 99-6166-01

COUNTERWEIGHT-FRONT

$

$

Not available

48

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Toro 325-17

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

50

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

52

Toro 144-4370

FOAM-HEAT SHIELD

$11.99

$

Usually ships in 3-6 days

0

53

Toro 144-4371

FOAM-HEAT SHIELD

$18.99

$

Usually ships in 3-6 days

0

57

Toro 144-0773-03

PLATE-WEIGHT

$195.99

$

Usually ships in 3-6 days

0

58

Toro 144-0779-03

PLATE-WEIGHT

$252.99

$

Usually ships in 3-6 days

0

59

Toro 144-0780-03

PLATE-WEIGHT

$108.99

$

Usually ships in 3-6 days

0

60

Toro 144-0781-03

PLATE-WEIGHT

$156.99

$

Usually ships in 3-6 days

0

61

Toro 145-4272

COVER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

62

Toro 325-19

SCREW-HH

$9.49

$

In Stock, Qty 12

0

63

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

64

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0
