Toro 22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Manifold Hydraulic Assembly Parts Lookup with Diagrams

1

Toro 150-2410

MANIFOLD-QDC

$735.99

$

Usually ships in 3-6 days

2

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

2:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

3

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

4

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

5

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

5:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

6

Toro 117-9881

FITTING-HYD, TEE

$115.99

$

Usually ships in 3-6 days

6:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

6:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

7

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

7:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

7:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

8

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

8:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

9

Toro 140-4462

HYD HOSE ASM

$134.99

$

Usually ships in 3-6 days

10

Toro 140-5976

HYD HOSE ASM

$142.99

$

Usually ships in 3-6 days

11

Toro 140-4469

HYD HOSE ASM

$266.99

$

Usually ships in 3-6 days

12

Toro 140-4470

HYD HOSE ASM

$243.99

$

Usually ships in 3-6 days

13

Toro 340-86

FITTING-TEE

$46.99

$

Usually ships in 3-6 days

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

13:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

14

Toro 137-5275

CLAMP-HOSE

$8.99

$

Usually ships in 3-6 days

15

Toro 127-8424

PLATE-CLAMP, RETAINER

$3.49

$

Usually ships in 3-6 days

16

Toro 321-13

SCREW-HH

$5.49

$

In Stock, only 3 left!

17

Toro 140-5902

WRAP-HOSE

$129.99

$

Usually ships in 3-6 days

18

Toro 140-5985

HYD TUBE ASM

$139.99

$

Usually ships in 3-6 days

19

Toro 140-5986

HYD TUBE ASM

$132.99

$

Usually ships in 3-6 days

20

Toro 137-0146

BLOCK-HARDLINE

$34.99

$

Usually ships in 3-6 days

21

Toro 133-1619

HYD HOSE ASM

$83.99

$

Usually ships in 3-6 days

22

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

23

Toro 140-5911

HYD HOSE ASM

$73.99

$

Usually ships in 3-6 days

24

Toro 140-5912

HYD HOSE ASM

$97.99

$

Usually ships in 3-6 days

25

Toro 140-5913

HYD HOSE ASM

$66.99

$

Usually ships in 3-6 days

26

Toro 140-5914

HYD HOSE ASM

$91.99

$

Usually ships in 3-6 days

27

Toro 140-5915

HYD HOSE ASM

$77.99

$

Usually ships in 3-6 days

28

Toro 140-6031

HYD HOSE ASM

$79.99

$

Usually ships in 3-6 days

29

Toro 158-627

SOLENOID VALVE

Note: Not illustrated

$341.99

$

Usually ships in 3-6 days

30

Toro 32105-18

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

31

Toro 140-5964

HYD HOSE ASM

$115.99

$

Usually ships in 3-6 days

32

Toro 145-4331

HYD TUBE ASM

$119.99

$

Usually ships in 3-6 days

33

Toro 145-4332

HYD TUBE ASM

$119.99

$

Usually ships in 3-6 days

34

Toro 139-4848

SWITCH-PRESSURE,

$885.99

$

Usually ships in 3-6 days

35

Toro 140-5969

HYD TUBE ASM

$50.99

$

Usually ships in 3-6 days

36

Toro 140-6007

CLAMP-HOSE

$23.99

$

Usually ships in 3-6 days

37

Toro 140-6008

CLAMP-HOSE

$28.99

$

Usually ships in 3-6 days

38

Toro 140-6045-03

PLATE-BACKER

$9.49

$

Usually ships in 3-6 days

39

Toro 3234-41

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

40

Toro 140-5987

HYD HOSE ASM

$56.99

$

Usually ships in 3-6 days

41

Toro 140-6075

MOUNT-QC

$143.99

$

Usually ships in 3-6 days

41:2

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

41:3

Toro 139-1173

DECAL-WARNING, HYD PRESSURE

$6.49

$

Usually ships in 3-6 days

42

Toro 104-3779

CONNECTOR-SWIVEL, STRAIGHT

$30.99

$

Usually ships in 3-6 days

42:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

43

Toro 139-4856

VALVE-SEQUENCE

$454.99

$

Usually ships in 3-6 days

44

Toro 114-7783

FITTING-STRAIGHT

$80.99

$

Usually ships in 3-6 days

44:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

44:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

45

Toro 340-94

ADAPTER

$49.99

$

Usually ships in 3-6 days

45:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

45:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

46

Toro 140-5970

HYD HOSE ASM

$54.99

$

Usually ships in 3-6 days

47

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

48

Toro 140-6058

GUIDE-HOSES

$38.99

$

Usually ships in 3-6 days

49

Toro 145-4333

VALVE-CHECK

$96.99

$

Usually ships in 3-6 days

50

Toro 99-3477

FITTING-TEE

Note: Not illustrated

$76.99

$

Usually ships in 3-6 days

50:1

Toro 237-21

O-RING

Note: Not illustrated

$0.99

$

In Stock, Qty 10

51

Toro 144-4255

CLAMP-BAND/SCREW

$4.99

$

Usually ships in 3-6 days

52

Toro 133-8572

TRIM-SEAL

$11.99

$

Usually ships in 3-6 days

53

Toro 340-153

FITTING-ELBOW, 90 DEG

$103.99

$

Usually ships in 3-6 days

53:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

53:2

Toro 237-151

O-RING

$2.49

$

In Stock, only 2 left!

54

Toro 144-4369-03

BRACKET-MOUNT, VALVE

$14.99

$

Usually ships in 3-6 days

55

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

56

Toro 133-8571

TRIM-SEAL

$8.99

$

Usually ships in 3-6 days

57

Toro 131-6069

CAP-DUST, NIPPLE

$13.99

$

Usually ships in 3-6 days

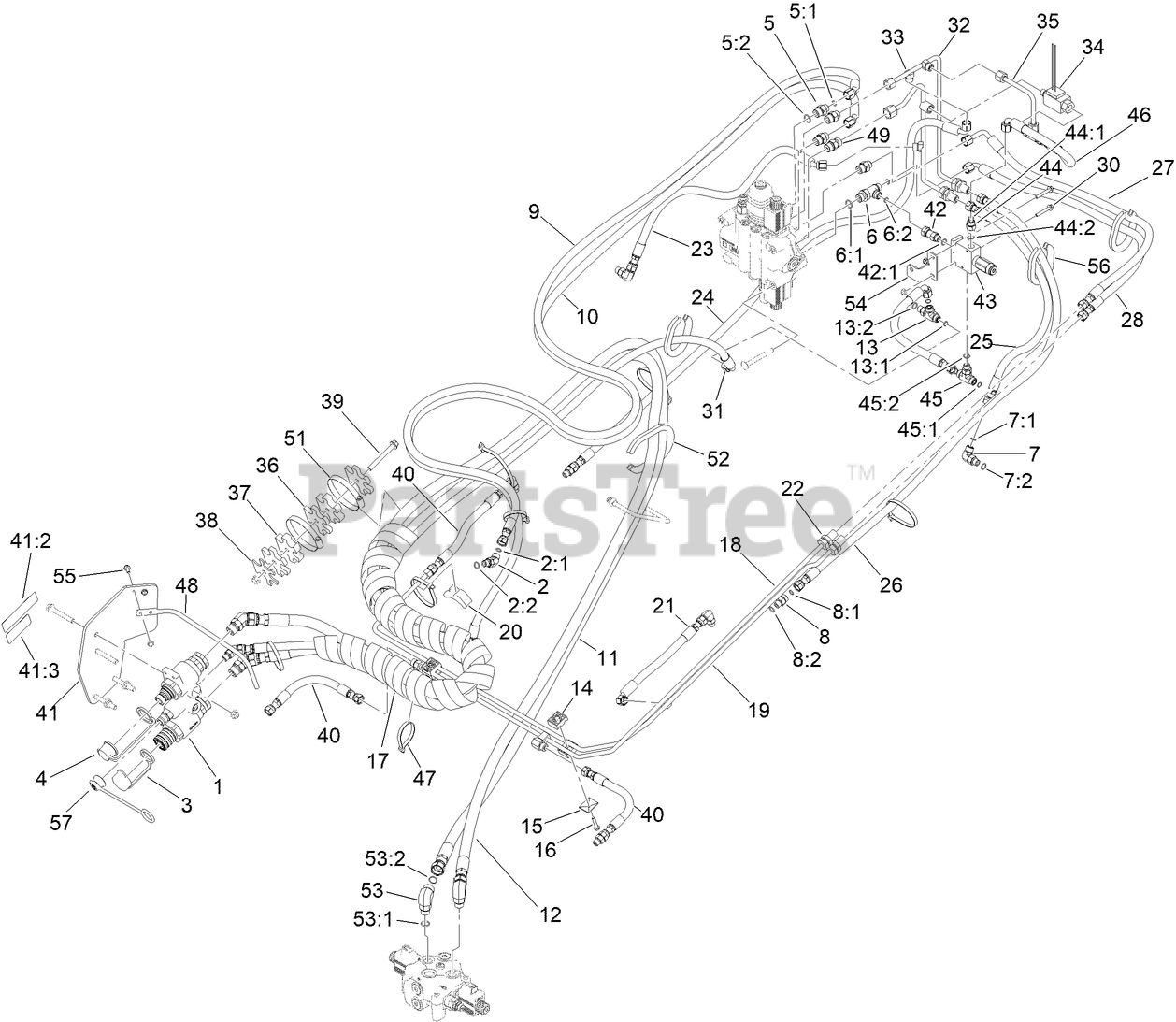

22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Manifold Hydraulic Assembly Parts Diagram

Manifold Hydraulic Assembly Parts Diagram
