22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 418000000 - 418099999) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

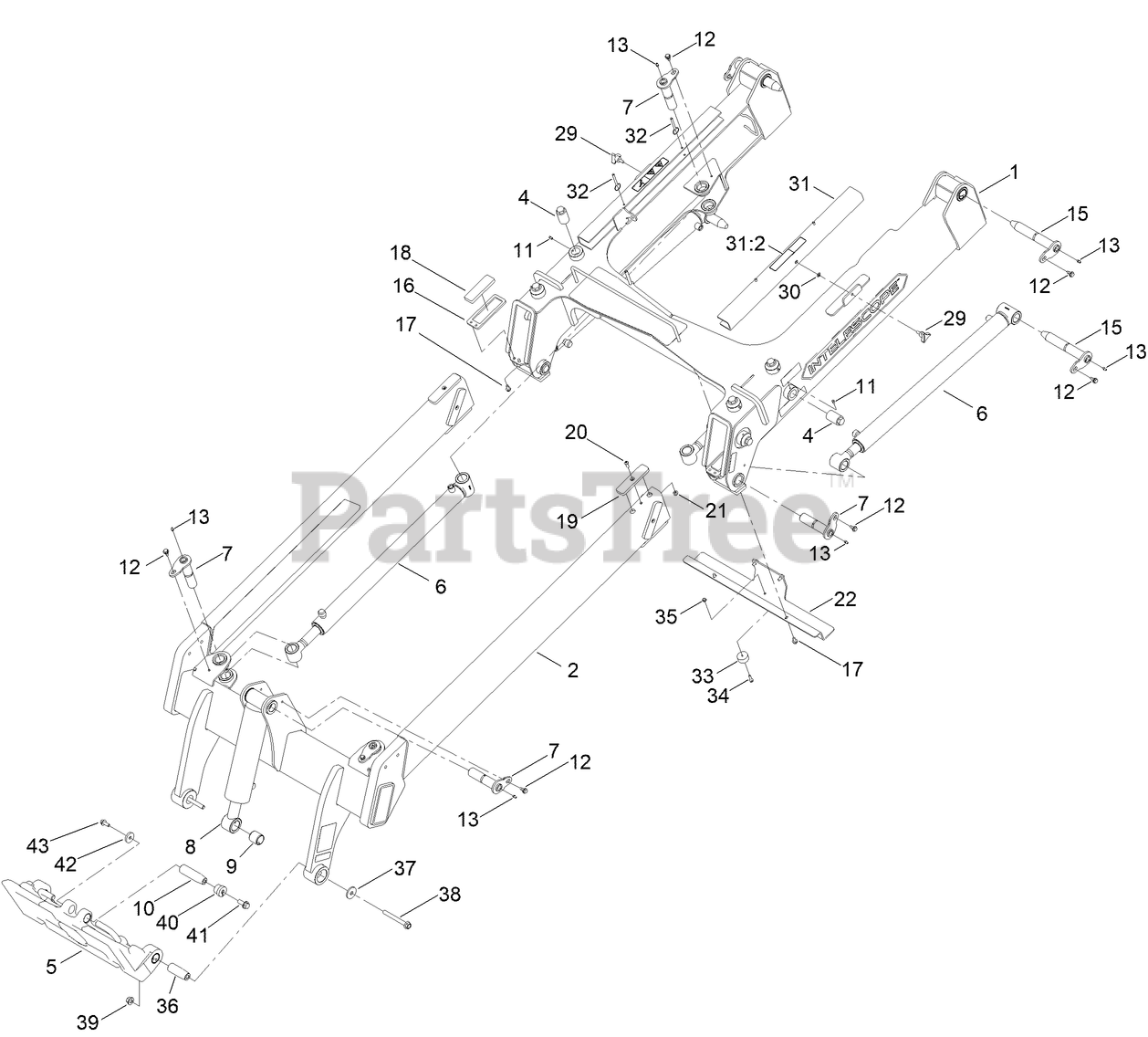

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 140-6062

LOADER ARM-UPPER, ASM

$8584.99

$

Usually ships in 3-6 days

0

2

Toro 140-6063

LOADER ARM-LOWER, ASM

$7297.99

$

Usually ships in 3-6 days

0

4

Toro 132-8479

SCREW-SLIDE,ADJUSTMENT

$42.99

$

Usually ships in 3-6 days

0

5

Toro 140-6017

ATTACHMENT PLATE ASM

$1552.99

$

Usually ships in 3-6 days

0

6

Toro 140-4528

HYD CYLINDER ASM

$791.99

$

Usually ships in 3-6 days

0

7

Toro 137-0134

FLAG PIN ASM

$123.99

$

Usually ships in 3-6 days

0

8

Toro 140-5951

CYL-HYD

$1080.99

$

Usually ships in 3-6 days

0

8:1

Toro 161-9430

KIT, SEAL

Note: Not illustrated

$

$

Currently unavailable

9

Toro 139-5737

BUSHING-SPRING

$28.99

$

Usually ships in 3-6 days

0

10

Toro 140-6076

PIN-TAPERED

$87.99

$

Usually ships in 3-6 days

0

11

Toro 126-3824

SCREW-SET, SQH

$2.99

$

Usually ships in 3-6 days

0

12

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

13

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

15

Toro 137-0132

PIVOT PIN ASM

$134.99

$

Usually ships in 3-6 days

0

16

Toro 140-4544-05

RETAINER-PAD

$

$

Currently unavailable

17

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

18

Toro 140-4545

STRIP-SLIDE,LOWER

$14.99

$

Usually ships in 3-6 days

0

19

Toro 140-4546

STRIP-SLIDE,

$19.99

$

Usually ships in 3-6 days

0

20

Toro 3274-32

SCREW-HSBH

$5.99

$

Usually ships in 3-6 days

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 140-4547-05

GUARD-HYDRAULICS

$

$

Currently unavailable

29

Toro 109-3351

KNOB

$7.49

$

Usually ships in 3-6 days

0

30

Toro 109-5667

RING-RETAINING, BOLT

$7.99

$

In Stock, only 2 left!

0

31

Toro 140-6064

LOCK-ARM

$200.99

$

Usually ships in 3-6 days

0

31:2

Toro 115-4858

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

32

Toro 108-0094

PIN-COTTERLESS

$5.49

$

Usually ships in 3-6 days

0

33

Toro 94-4548

BUMPER-RECESSED

$7.49

$

Usually ships in 3-6 days

0

34

Toro 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

35

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

36

Toro 140-6019

PIN-LINK,TAPER

$71.99

$

Usually ships in 3-6 days

0

37

Toro 106-2008

WASHER-THRUST

$8.49

$

Usually ships in 3-6 days

0

38

Toro 117-3176

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

39

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

40

Toro 181-1002

INSERT-TAPERED

$35.99

$

Usually ships in 3-6 days

0

41

Toro 137-4653

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

42

Toro 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

43

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0
