22400 - Toro Auger Head for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Auger Head Assembly Parts Diagram

Auger Head for Dingo Compact Utility Loader

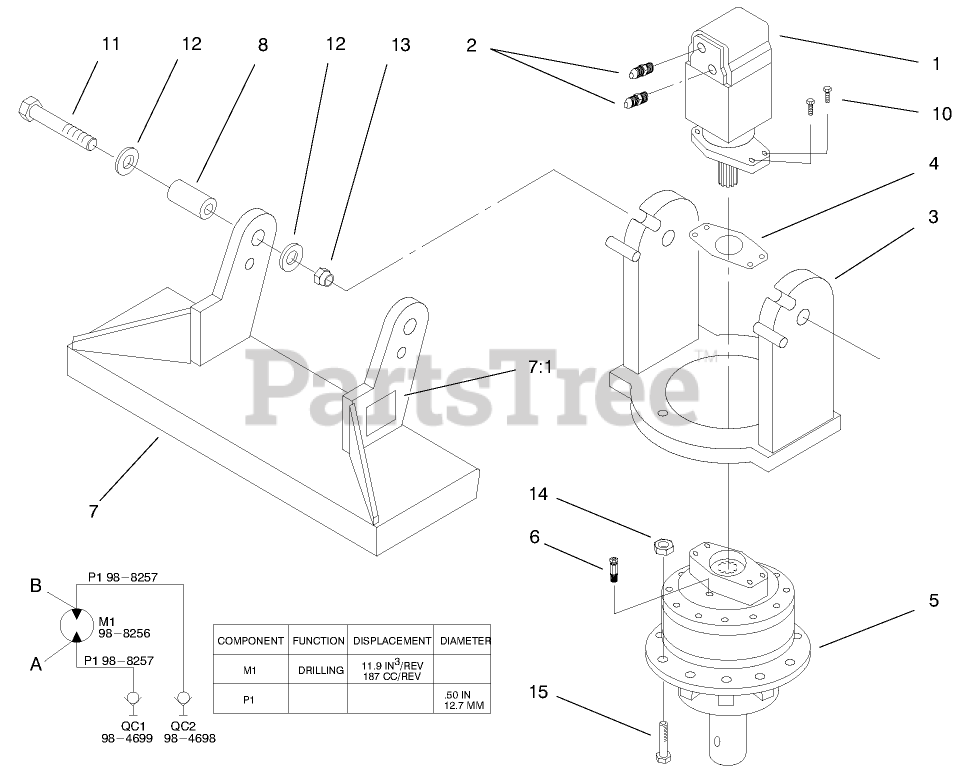

Auger Head Assembly Parts Diagram

  • Title

1

Toro 98-8256

HYDRAULIC MOTOR ASM

$3089.99

$

Usually ships in 3-6 days

0

Toro 56-6890

SEAL KIT

Note: Not illustrated

$158.99

$

Usually ships in 3-6 days

0

2

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

3

Toro 98-8258

DISCONTINUED

$

$

Not available

4

Toro 99-5032

GASKET

$45.99

$

Usually ships in 3-6 days

0

5

Toro 98-8260

DRIVE-GEAR, PLANETARY

$13027.99

$

Usually ships in 3-6 days

0

6

Toro 98-8261

DISCONTINUED

$

$

Not available

7

Toro 98-2705

DISCONTINUED

$

$

Not available

7:1

Toro 99-9942

DECAL-WARNING

$

$

Not available

8

Toro 99-1406

PIN - PIVOT

$34.99

$

Usually ships in 3-6 days

0

10

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

11

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 98-2703

See Supercession: 99-4371
(Superseded to 99-4371)

$5.49

$

Usually ships in 3-6 days

0

15

Toro 326-1

SCREW-HH

$

$

Not available

Toro 98-8257

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 98-4698

MALE-DISCONNECT, QUICK

Note: Not illustrated

$74.99

$

In Stock, only 1 left!

0

Toro 98-4699

FEMALE-DISCONNECT, QUICK

Note: Not illustrated

$181.99

$

In Stock, only 2 left!

0
