22414 - Toro 48" Hydraulic Blade for Dingo Compact Utility Loader (SN: 404000000 - 411899999) Hydraulic Blade Assembly Parts Diagram

48" Hydraulic Blade for Dingo Compact Utility Loader

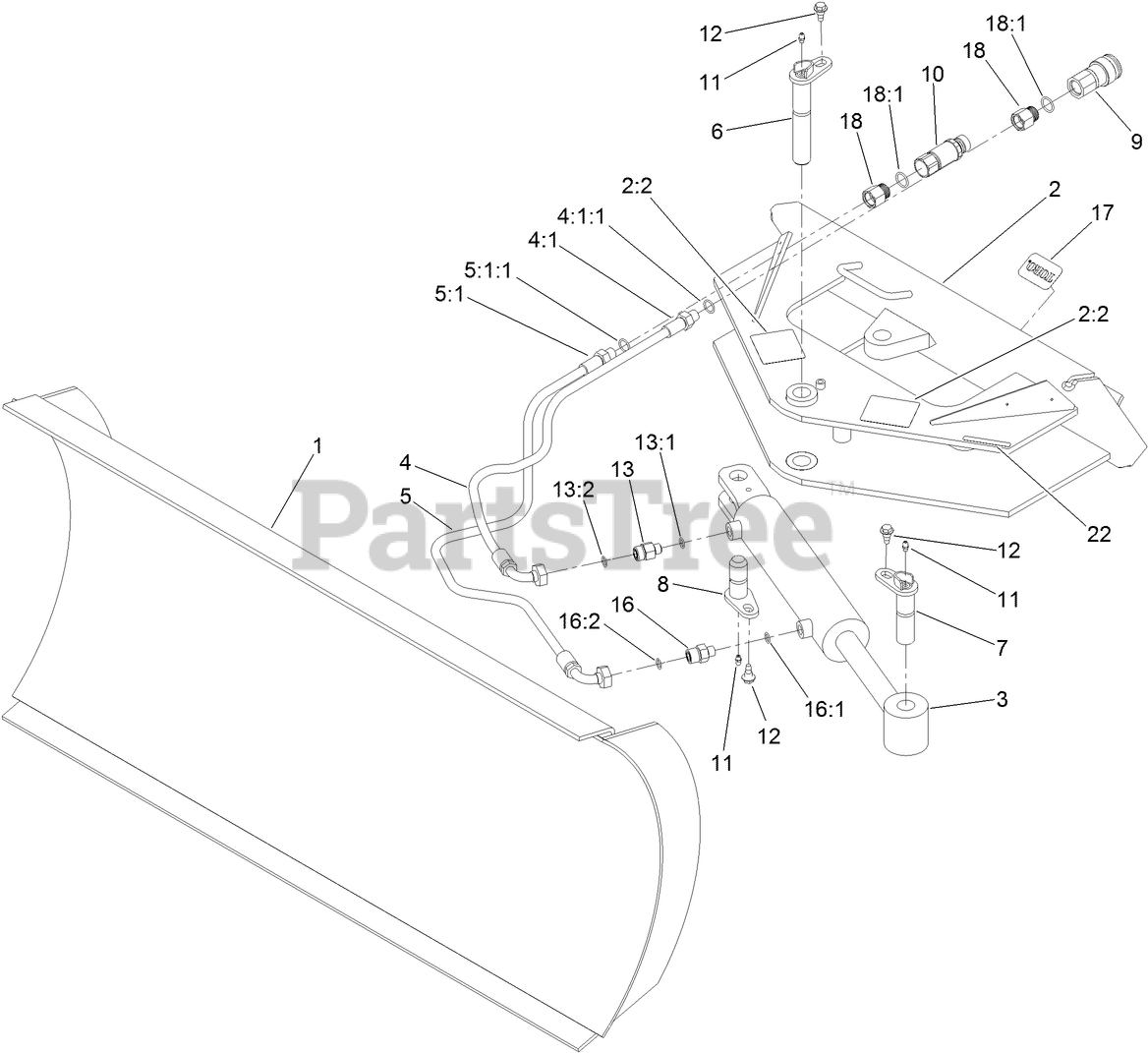

Hydraulic Blade Assembly Parts Diagram

  • Title

1

Toro 98-8240-03

BLADE ASM

$5670.99

$

Usually ships in 3-6 days

0

2

Toro 99-4306

BLADE PIVOT ASM

$4767.99

$

Usually ships in 3-6 days

0

2:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

3

Toro 98-9942

CYLINDER-HYD

$1646.99

$

Usually ships in 3-6 days

0

4

Toro 99-1651

HYD HOSE ASM

$383.99

$

Usually ships in 3-6 days

0

4:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

4:1:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5

Toro 99-1652

HYD HOSE ASM

$474.99

$

Usually ships in 3-6 days

0

5:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

5:1:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

6

Toro 94-1598

PIN-PIVOT

$424.99

$

Usually ships in 3-6 days

0

7

Toro 94-9797

PIN-PIVOT

$196.99

$

Usually ships in 3-6 days

0

8

Toro 112-2609

PIN-PIVOT

$121.99

$

In Stock, only 2 left!

0

9

Toro 104-6134

COUPLER-FACE, FLUSH

$300.99

$

Usually ships in 3-6 days

0

10

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

10:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

11

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

12

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

13

Toro 340-5

FITTING-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 99-1650

FITTING-STR,ORIF

$361.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

16:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

18

Toro 100-4617

ADAPTER-HYD

$20.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

22

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
