22415 - Toro Rotary Broom for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Rotor Assembly Parts Diagram

Rotary Broom for Dingo Compact Utility Loader

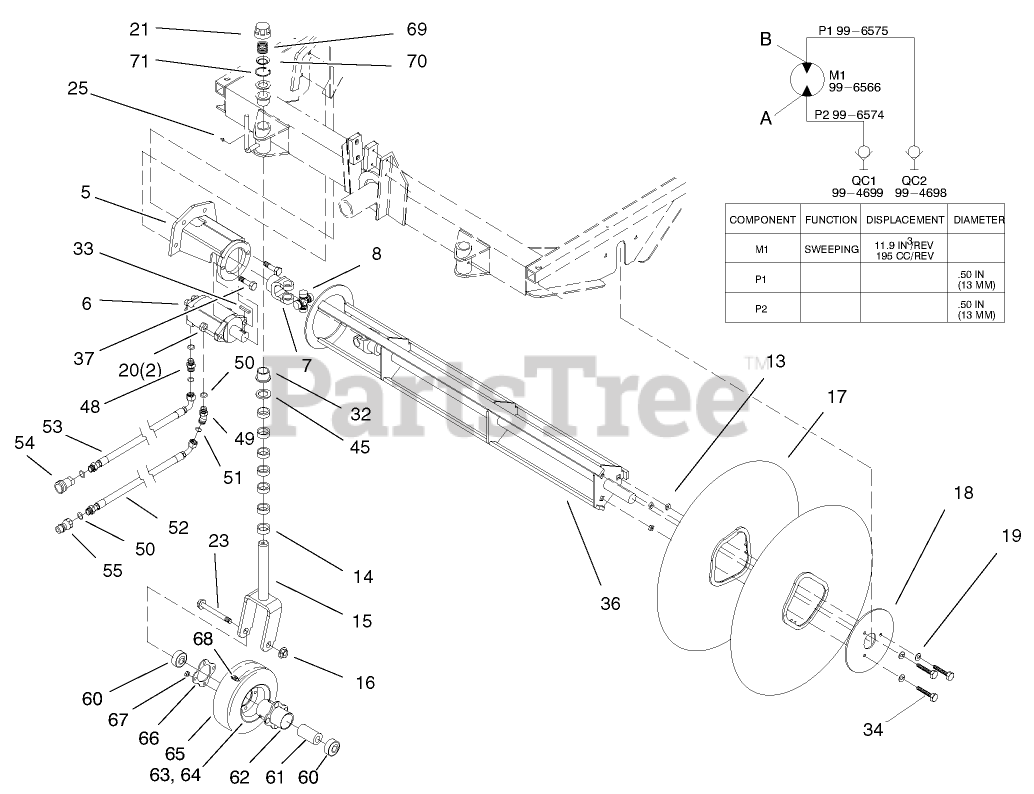

Rotor Assembly Parts Diagram

  • Title

5

Toro 99-6564

See Supercession: 127-6518-03
(Superseded to 127-6518-03)

$672.99

$

Usually ships in 3-6 days

0

6

Toro 99-6566

MOTOR-HYDRAULIC

$

$

Not available

7

Toro 99-6569

DISCONTINUED - SEE PB 959

$

$

Not available

8

Toro 99-6570

See Supercession: 54-9180
(Superseded to 54-9180)

$71.99

$

In Stock, only 4 left!

0

13

Toro 99-6585

DISCONTINUED

$

$

Not available

14

Toro 63-0070

SPACER

$2.49

$

In Stock, Qty 10

0

15

Toro 93-8431

See Supercession: 93-8431-01
(Superseded to 93-8431-01)

$383.99

$

Usually ships in 3-6 days

0

16

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

17

Toro 94-7372

ELEMENT-BRUSH, POLY

$53.99

$

Usually ships in 3-6 days

0

Toro 95-5942

ELEMENT-BRUSH, WIRE (OPTIONAL)

Note: Not illustrated

$75.99

$

Usually ships in 3-6 days

0

18

Toro 99-6563

DISCONTINUED

$

$

Not available

19

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0

20

Toro 32146-13

NUT-HEX

$4.99

$

In Stock, only 2 left!

0

21

Toro 92-8862

HOC CAP ASM

$83.99

$

Usually ships in 3-6 days

0

23

Toro 327-24

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

25

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

32

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$12.99

$

In Stock, only 3 left!

0

33

Toro 99-6567

KEY-STEP

$

$

Not available

34

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 93-9938

WHEEL ASM

Note: Not illustrated

$230.99

$

Usually ships in 3-6 days

0

36

Toro 99-6562

ROTOR FRAME ASM

$

$

Not available

37

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

45

Toro 99-6582

DISCONTINUED

$

$

Not available

48

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

49

Toro 340-14

FITTING-HYD, 45 DEG

$56.99

$

Usually ships in 3-6 days

0

50

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

51

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

52

Toro 99-6575

HOSE ASM

$

$

Not available

53

Toro 99-6574

HOSE ASM

$

$

Not available

54

Toro 98-4699

FEMALE-DISCONNECT, QUICK

$181.99

$

In Stock, only 2 left!

0

55

Toro 98-4698

MALE-DISCONNECT, QUICK

$74.99

$

In Stock, only 1 left!

0

60

Toro 93-4237

See Supercession: 120-5378
(Superseded to 120-5378)

$18.99

$

In Stock, Qty 20+

0

61

Toro 93-4241

SPACER-BEARING, INNER

$35.99

$

Usually ships in 3-6 days

0

62

Toro 93-5980

HUB

$89.99

$

Usually ships in 3-6 days

0

63

Toro 93-4239

RIM-WHEEL, HALF

$34.99

$

Usually ships in 3-6 days

0

64

Toro 95-2741

RIM-WHEEL, HALF

$29.99

$

Usually ships in 3-6 days

0

65

Toro 93-9939

TIRE

$52.99

$

Usually ships in 3-6 days

0

66

Toro 93-4242

PLATE

$14.99

$

Usually ships in 3-6 days

0

67

Toro 32128-16

NUT-HHF

$0.99

$

Usually ships in 3-6 days

0

68

Toro 68-8950

TUBE-INNER (W/VALVE)

$36.99

$

Usually ships in 3-6 days

0

69

Toro 92-5584

SPRING-COMPRESSION

$18.99

$

In Stock, only 2 left!

0

70

Toro 92-5583

WASHER-CAP

$10.99

$

In Stock, only 3 left!

0

71

Toro 92-5581

RING-RETAINING

$3.99

$

In Stock, Qty 10

0
