22420 - Toro Bore Drive Head Attachment for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) Bore Drive Head Assembly Parts Diagram

Bore Drive Head Attachment for Dingo Compact Utility Loader

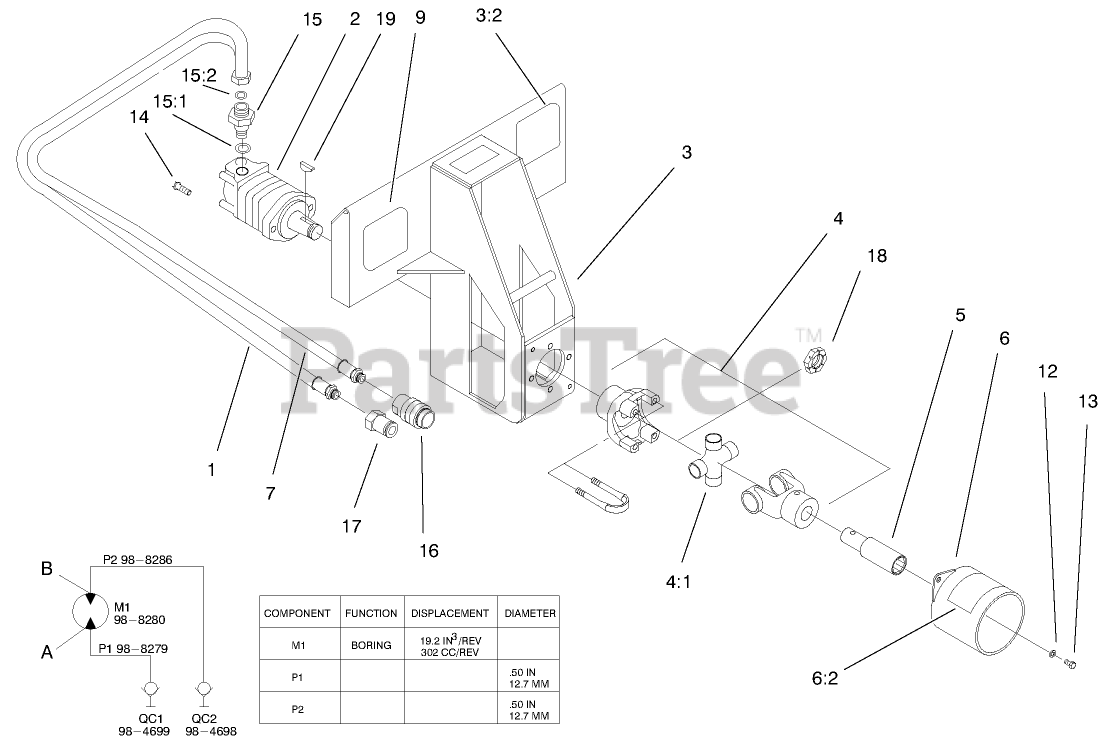

Bore Drive Head Assembly Parts Diagram

  • Title

1

Toro 98-8286

HOSE - HYDRAULIC

$

$

Not available

2

Toro 98-8280

MOTOR-HYDRAULIC

$6531.99

$

Usually ships in 3-6 days

0

3

Toro 99-4305

FRAME ASM

$5503.99

$

Usually ships in 3-6 days

0

3:2

Toro 99-9945

DECAL-WARNING

$60.99

$

Usually ships in 3-6 days

0

4

Toro 98-8282

JOINT - UNIVERSAL

$

$

Not available

4:1

Toro 99-4300

U-JOINT

$

$

Not available

5

Toro 98-8283

COUPLER - SPLINE

$

$

Not available

6

Toro 99-4304

See Supercession: 104-1895
(Superseded to 104-1895)

$434.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-9945

DECAL-WARNING

$60.99

$

Usually ships in 3-6 days

0

7

Toro 98-8279

DISCONTINUED

$

$

Not available

9

Toro 98-4680

DECAL - SIDE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

13

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0

14

Toro 98-9063

SCREW

$

$

Not available

15

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

15:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 98-4699

FEMALE-DISCONNECT, QUICK

$181.99

$

In Stock, only 2 left!

0

17

Toro 98-4698

MALE-DISCONNECT, QUICK

$74.99

$

In Stock, only 1 left!

0

18

Toro 98-4301

Nut-Shaft

$

$

Currently unavailable

19

Toro 99-4302

KEY - SHAFT

$

$

Not available
