22425 - Toro Power Box Rake for Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) Mounting Assembly Parts Diagram

Power Box Rake for Dingo Compact Utility Loader

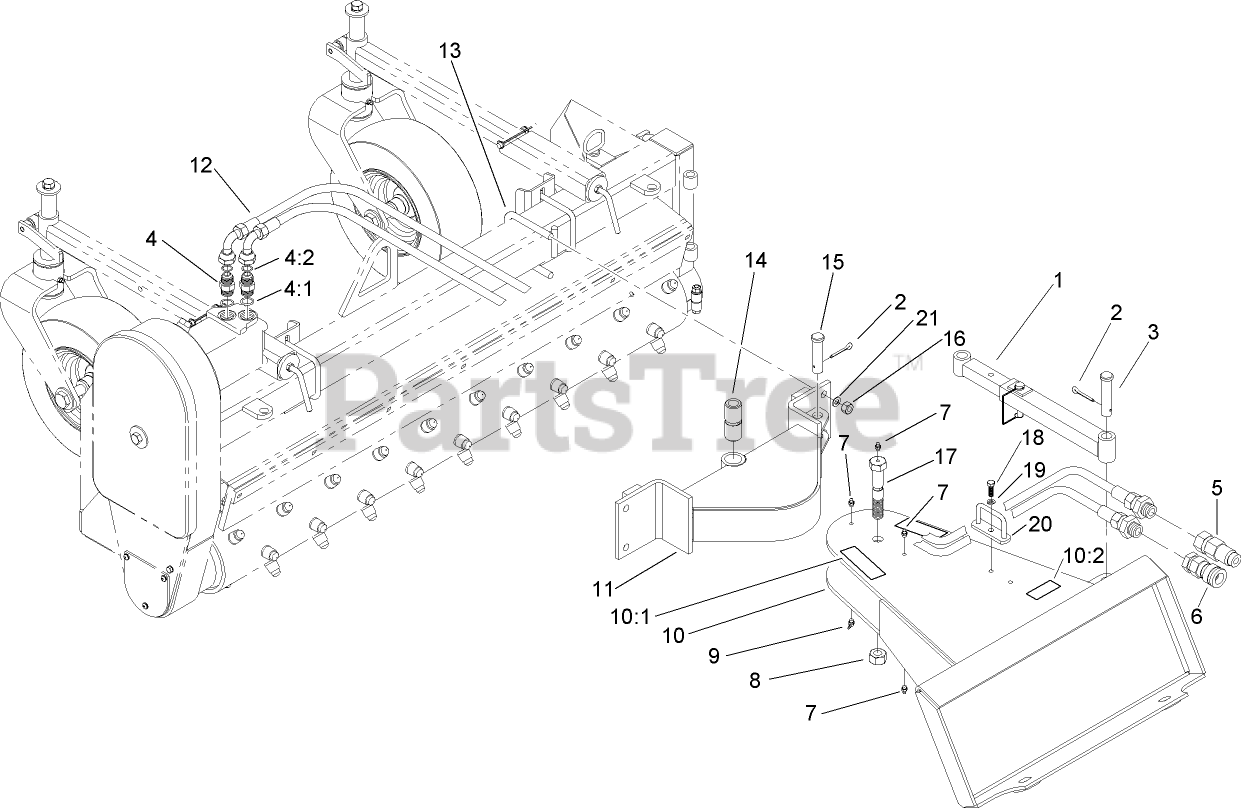

Mounting Assembly Parts Diagram

  • Title

1

Toro 107-9427

BAR-ADJUSTMENT

$

$

Not available

2

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 107-9457

PIN-CLEVIS

$

$

Not available

4

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

4:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

5

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

5:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

6

Toro 104-6134

COUPLER-FACE, FLUSH

$300.99

$

Usually ships in 3-6 days

0

7

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

8

Toro 97-1208

LOCKNUT-STOVER

$9.49

$

Usually ships in 3-6 days

0

9

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

10

Toro 107-9426

ATTACHMENT MOUNT ASM

$

$

Not available

10:1

Toro 93-9367

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

10:2

Toro 100-4708

DECAL-WARNING

$57.99

$

Usually ships in 3-6 days

0

11

Toro 107-9425

MOUNT-PIVOT

$

$

Not available

12

Toro 107-9439

HYD HOSE ASM

$

$

Not available

13

Toro 107-9458

U-BOLT

$41.99

$

Usually ships in 3-6 days

0

14

Toro 107-9428

BUSHING-PIVOT

$351.99

$

Usually ships in 3-6 days

0

15

Toro 107-9456

PIN-CLEVIS

$64.99

$

Usually ships in 3-6 days

0

16

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 107-9429

BOLT-PIVOT

$211.99

$

Usually ships in 3-6 days

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 107-9431

LOOP-HOSE

$

$

Not available

21

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0
