22429 - Toro Stump Grinder for Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) Hydraulic Cylinder Assembly No. 104-6094 Parts Diagram

Stump Grinder for Dingo Compact Utility Loader

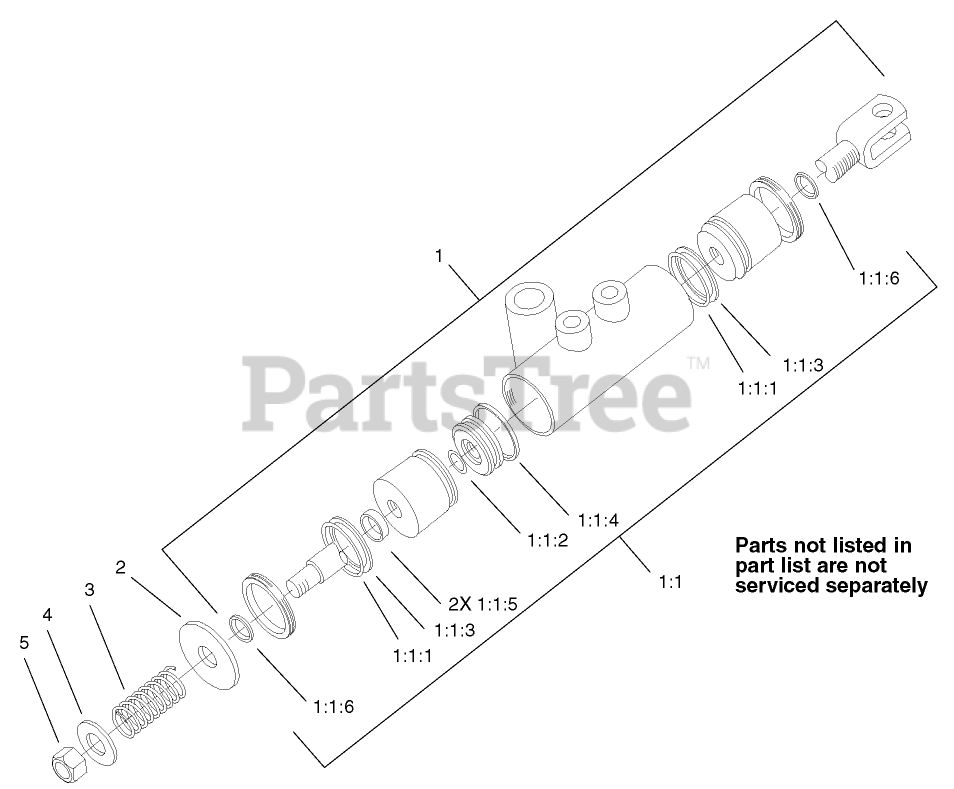

Hydraulic Cylinder Assembly No. 104-6094 Parts Diagram

  • Title

1

Toro 104-6093

HYDRAULIC CYLINDER ASM

$856.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-5847

SEAL KIT

$274.99

$

Usually ships in 3-6 days

0

1:1:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:5

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:6

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2

Toro 104-5837

WASHER-CYLINDER

$

$

Not available

3

Toro 66-9010

SPRING-COMPRESSION

$29.99

$

Usually ships in 3-6 days

0

4

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

5

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
