22429 - Toro Stump Grinder for Dingo Compact Utility Loader (SN: 404320000 - 415090381) Shield and Guard Assembly Parts Diagram

Stump Grinder for Dingo Compact Utility Loader

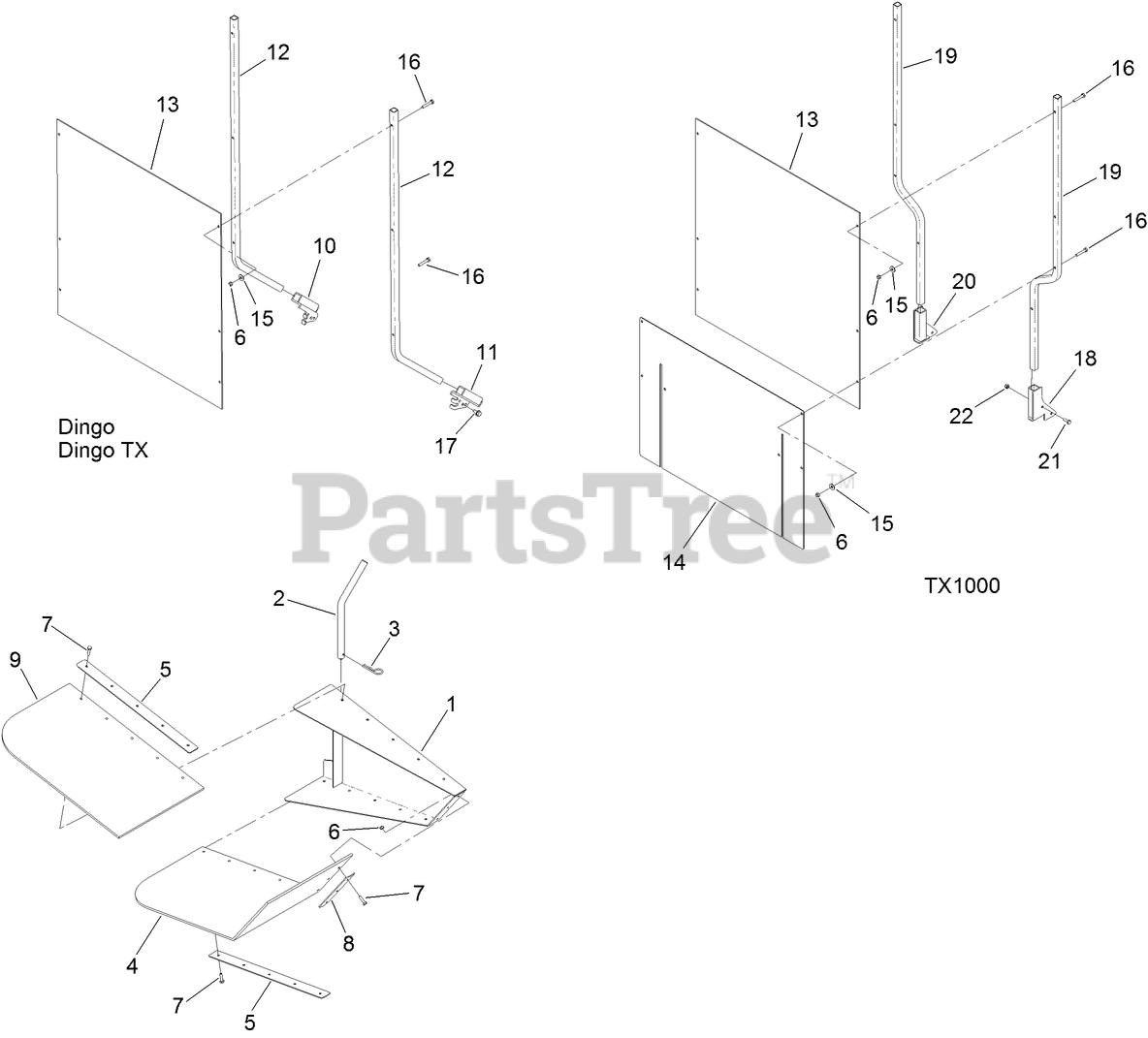

Shield and Guard Assembly Parts Diagram

  • Title

1

Toro 104-2012-03

CHIPPER GUARD ASM

$1005.99

$

Usually ships in 3-6 days

0

2

Toro 104-2018

PIN-HINGE

$139.99

$

Usually ships in 3-6 days

0

3

Toro 3290-343

PIN-HAIR

$1.49

$

In Stock, only 3 left!

0

4

Toro 104-2022

GUARD-SKIRT, REAR

$317.99

$

Usually ships in 3-6 days

0

5

Toro 104-2019-03

CLAMP-SKIRT

$42.99

$

Usually ships in 3-6 days

0

6

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

7

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

8

Toro 104-2021-03

CLAMP-SKIRT

$33.99

$

Usually ships in 3-6 days

0

9

Toro 104-2023

GUARD-SKIRT, FRONT

$243.99

$

Usually ships in 3-6 days

0

10

Toro 104-5818-03

BRACKET-SUPPORT, RH

$111.99

$

Usually ships in 3-6 days

0

11

Toro 104-5817-03

BRACKET-SUPPORT, LH

$111.99

$

Usually ships in 3-6 days

0

12

Toro 104-5815-03

SUPPORT-SHIELD

$154.99

$

Usually ships in 3-6 days

0

13

Toro 136-4553

SHIELD-LEXAN

$433.99

$

Usually ships in 3-6 days

0

14

Toro 136-4554

SKIRT-PROTECTOR

$206.99

$

Usually ships in 3-6 days

0

15

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

16

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 132-8623-03

BRACKET-SUPPORT, LH

$106.99

$

Usually ships in 3-6 days

0

19

Toro 136-4558-03

SUPPORT-TUBE, SHIELD

$138.99

$

Usually ships in 3-6 days

0

20

Toro 132-8624-03

BRACKET-SUPPORT, RH

$106.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
