22445 - Toro 40" Tiller for Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) Tiller Assembly Parts Diagram

40" Tiller for Dingo Compact Utility Loader

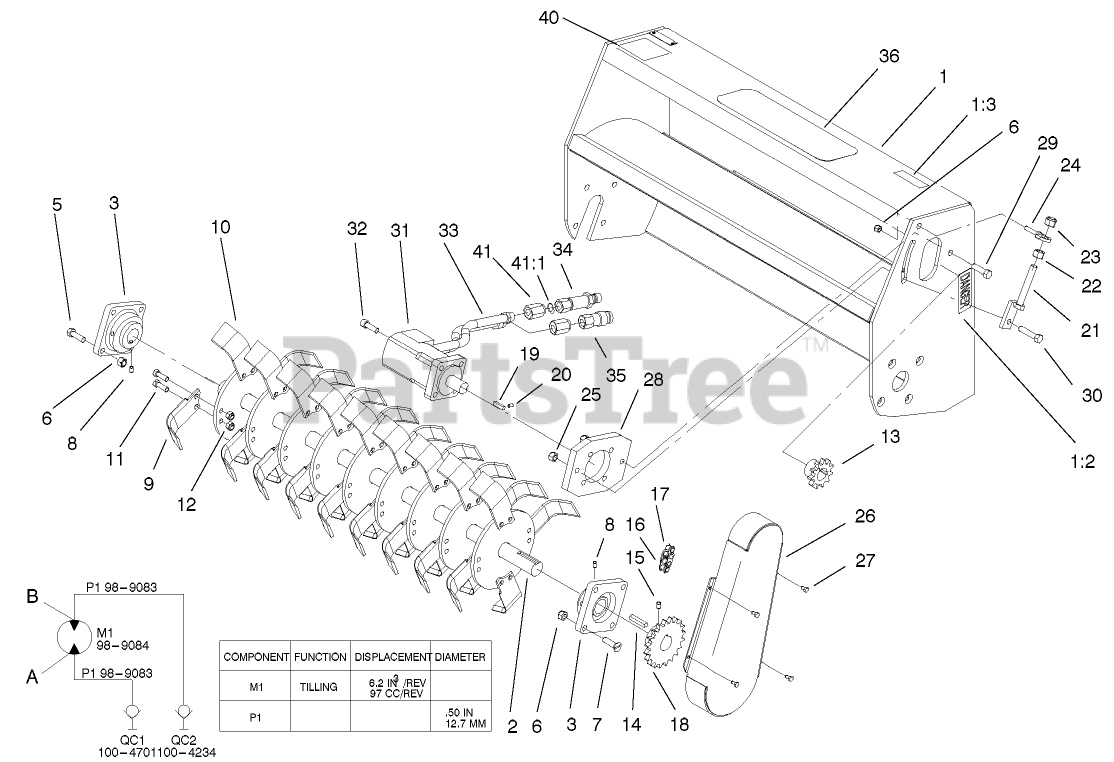

Tiller Assembly Parts Diagram

  • Title

1

Toro 99-5046

TILLER FRAME ASM

$

$

Not available

1:2

Toro 93-7321

DECAL-DANGER

$33.99

$

Usually ships in 3-6 days

0

1:3

Toro 100-4708

DECAL-WARNING

$57.99

$

Usually ships in 3-6 days

0

2

Toro 98-9087

SHAFT-TINE

$2809.99

$

Usually ships in 3-6 days

0

3

Toro 99-9979

BEARING ASM

$697.99

$

Usually ships in 3-6 days

0

5

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 98-9931

BOLT

$3.99

$

Usually ships in 3-6 days

0

8

Toro 3246-4

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

9

Toro 104-2043

TINE-RH

$28.99

$

Usually ships in 3-6 days

0

10

Toro 104-2044

TINE-LH

$28.99

$

Usually ships in 3-6 days

0

11

Toro 324-29

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

12

Toro 32146-7

NUT-LOCK, INSERT
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

13

Toro 98-9085

SPROCKET-11 TOOTH

$535.99

$

Usually ships in 3-6 days

0

14

Toro 98-9935

KEY-SQUARE

$11.99

$

Usually ships in 3-6 days

0

15

Toro 3247-3

SCREW-SET

$9.49

$

In Stock, only 2 left!

0

16

Toro 98-9088

CHAIN-ROLLER

$302.99

$

Usually ships in 3-6 days

0

17

Toro 98-9089

LINK-CONNECTING

$20.99

$

In Stock, only 1 left!

0

18

Toro 98-9086

SPROCKET-20 TOOTH

$434.99

$

In Stock, only 1 left!

0

19

Toro 98-9934

See Supercession: AUH415604
(Superseded to AUH415604)

$15.99

$

Usually ships in 3-6 days

0

20

Toro 3246-4

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

21

Toro 98-9082

CHAIN ADJUSTMENT ASM

$296.99

$

Usually ships in 3-6 days

0

22

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

23

Toro 3296-41

NUT-LOCK NI

$6.99

$

In Stock, only 1 left!

0

24

Toro 99-5044

HOLDER-ADJUSTMENT

$95.99

$

Usually ships in 3-6 days

0

25

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 98-9071

COVER-CHAIN, TILLER

$807.99

$

Usually ships in 3-6 days

0

27

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

28

Toro 98-9070

PLATE-MOUNT, MOTOR

$725.99

$

Usually ships in 3-6 days

0

29

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

30

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

31

Toro 98-9084

MOTOR-HYD

$2589.99

$

Usually ships in 3-6 days

0

32

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

33

Toro 98-9083

See Supercession: 104-6207
(Superseded to 104-6207)

$553.99

$

Usually ships in 3-6 days

0

34

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

34:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

35

Toro 100-4234

See Supercession: 104-6134
(Superseded to 104-6134)

$300.99

$

Usually ships in 3-6 days

0

35:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$

$

Not available

36

Toro 100-8828

DECAL-DINGO, FRONT

$

$

Not available

40

Toro 98-3269

DECAL

$46.99

$

Usually ships in 3-6 days

0

41

Toro 100-4618

DISCONTINUED

$

$

Not available

41:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0
