22456 - Toro Snow Thrower for Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) Hydraulic Hose And Pump Assembly Parts Diagram

Snow Thrower for Dingo Compact Utility Loader

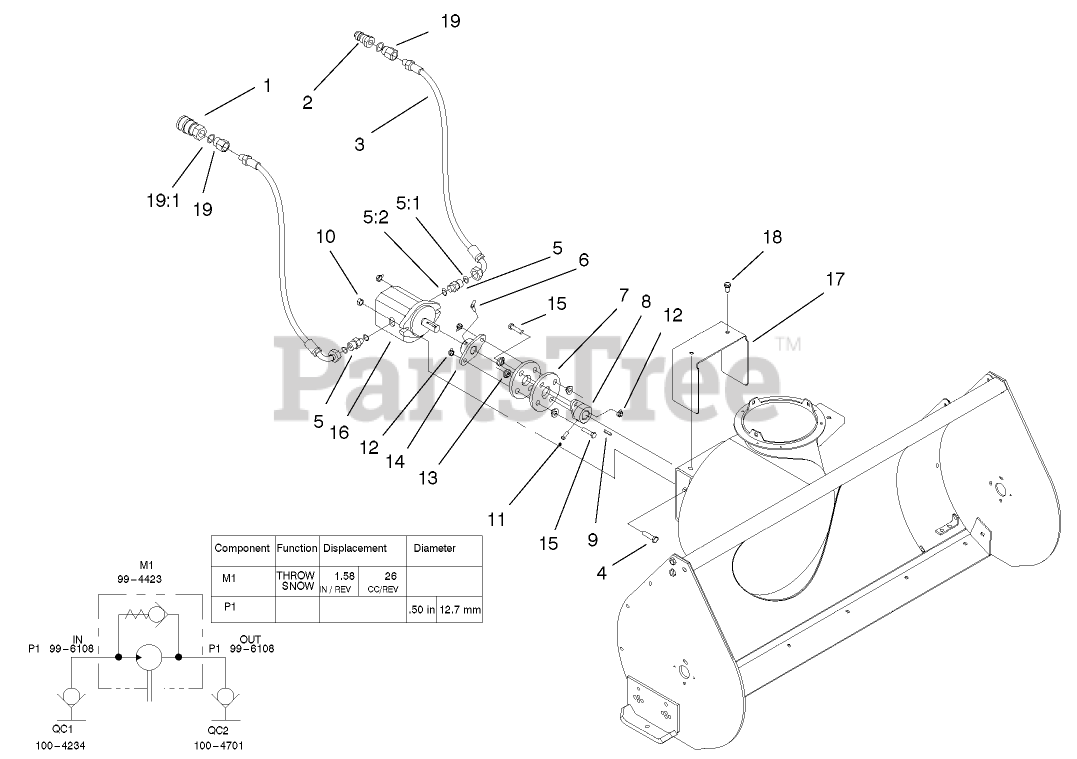

Hydraulic Hose And Pump Assembly Parts Diagram

  • Title

1

Toro 100-4234

See Supercession: 104-6134
(Superseded to 104-6134)

$300.99

$

Usually ships in 3-6 days

0

1:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$

$

Not available

2

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

3

Toro 99-6108

HOSE-HYD

$332.99

$

Usually ships in 3-6 days

0

4

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

5

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

5:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

6

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

7

Toro 44-2230

See Supercession: 115-4523
(Superseded to 115-4523)

$61.99

$

In Stock, Qty 13

0

8

Toro 49-6710

See Supercession: 117-1311
(Superseded to 117-1311)

$120.99

$

Usually ships in 3-6 days

0

9

Toro 6366

KEY

$5.99

$

Usually ships in 3-6 days

0

10

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 71-4411

SPACER

$3.49

$

In Stock, only 2 left!

0

14

Toro 49-9600

See Supercession: 110-9695
(Superseded to 110-9695)

$73.99

$

In Stock, only 1 left!

0

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 99-4423

MOTOR-HYDRAULIC

$2555.99

$

Usually ships in 3-6 days

0

16:1

Toro 100-4629

SEAL KIT

Note: Not illustrated

$312.99

$

Usually ships in 3-6 days

0

17

Toro 100-4626-01

SHIELD-MOTOR

$81.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 100-4617

ADAPTER-HYD

$20.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0
