22456 - Toro Snow Thrower for Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) Crank and Mounting Assembly Parts Diagram

Snow Thrower for Dingo Compact Utility Loader

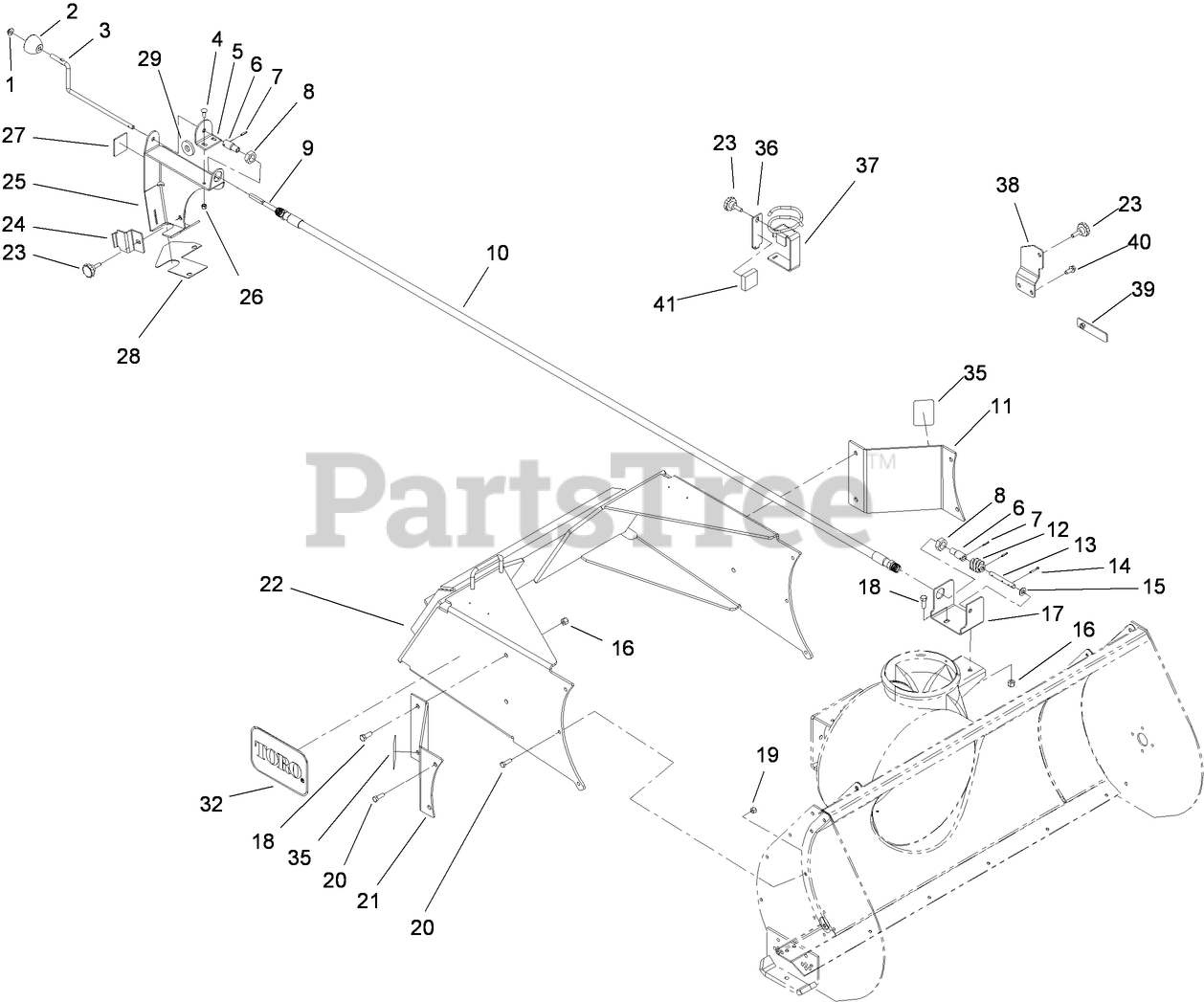

Crank and Mounting Assembly Parts Diagram

  • Title

1

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, only 2 left!

0

2

Toro 61-4890

KNOB-CHUTE

$

$

Not available

3

Toro 99-5906

ROD-CONTROL, CHUTE

$204.99

$

Usually ships in 3-6 days

0

4

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

5

Toro 99-5904-01

BRACKET-ROD, SUPPORT

$84.99

$

Usually ships in 3-6 days

0

6

Toro 61-4940

COUPLER

$94.99

$

Usually ships in 3-6 days

0

7

Toro 32121-50

PIN-SPRING

$3.99

$

In Stock, only 3 left!

0

8

Toro 353-955

LOCKNUT

$25.99

$

Usually ships in 3-6 days

0

9

Toro 99-4978

SHAFT-FLEXIBLE

$283.99

$

Usually ships in 3-6 days

0

10

Toro 99-4979

HOSE ASM

$379.99

$

Usually ships in 3-6 days

0

11

Toro 100-4603-01

See Supercession: 133-1626-01
(Superseded to 133-1626-01)

$85.99

$

Usually ships in 3-6 days

0

12

Toro 8-8600

GEAR-WORM, CHUTE

$151.99

$

Usually ships in 3-6 days

0

13

Toro 61-4950

SHAFT-GEAR, WORM

$96.99

$

Usually ships in 3-6 days

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 6

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 99-5319-01

See Supercession: 133-1644-01
(Superseded to 133-1644-01)

$42.99

$

Usually ships in 3-6 days

0

18

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 100-4604-01

PLATE-EXTENSION, RH

$

$

Not available

22

Toro 99-4424-01

SNOWTHROWER MOUNT ASM

$

$

Not available

23

Toro 99-6137

KNOB-CONTROL, CHUTE

$36.99

$

Usually ships in 3-6 days

0

24

Toro 99-5907-01

BRACKET-CLAMP

$67.99

$

Usually ships in 3-6 days

0

25

Toro 99-5909-01

BRACKET-CONTROL, CHUTE

$340.99

$

Usually ships in 3-6 days

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 63-3510

DECAL-CHUTE DIRECTION

$6.49

$

Usually ships in 3-6 days

0

28

Toro 99-6139

FOAM-CHUTE, CONTROL

$19.99

$

Usually ships in 3-6 days

0

29

Toro 83-1040

WASHER-FLAT

$4.49

$

In Stock, Qty 8

0

32

Toro 62-7400

DECAL

$28.99

$

Usually ships in 3-6 days

0

35

Toro 100-4627

REFLECTOR

$22.99

$

Usually ships in 3-6 days

0

36

Toro 112-2615-03

BRACKET-RETAINER

$13.99

$

Usually ships in 3-6 days

0

37

Toro 112-2617-03

RETAINER-HOSE

$232.99

$

Usually ships in 3-6 days

0

38

Toro 100-4620-01

BRACKET,CLAMP

$72.99

$

Usually ships in 3-6 days

0

39

Toro 100-4621-01

PLATE-RETAINER

$94.99

$

Usually ships in 3-6 days

0

40

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

41

Toro 112-2616

PAD-RETAINER, BRACKET

$5.99

$

Usually ships in 3-6 days

0
