22473 - Toro High-Torque Trencher Head for Dingo Compact Utility Loader (SN: 402000000 - 404309999) High-Torque Trencher Head Assembly Parts Diagram

High-Torque Trencher Head for Dingo Compact Utility Loader

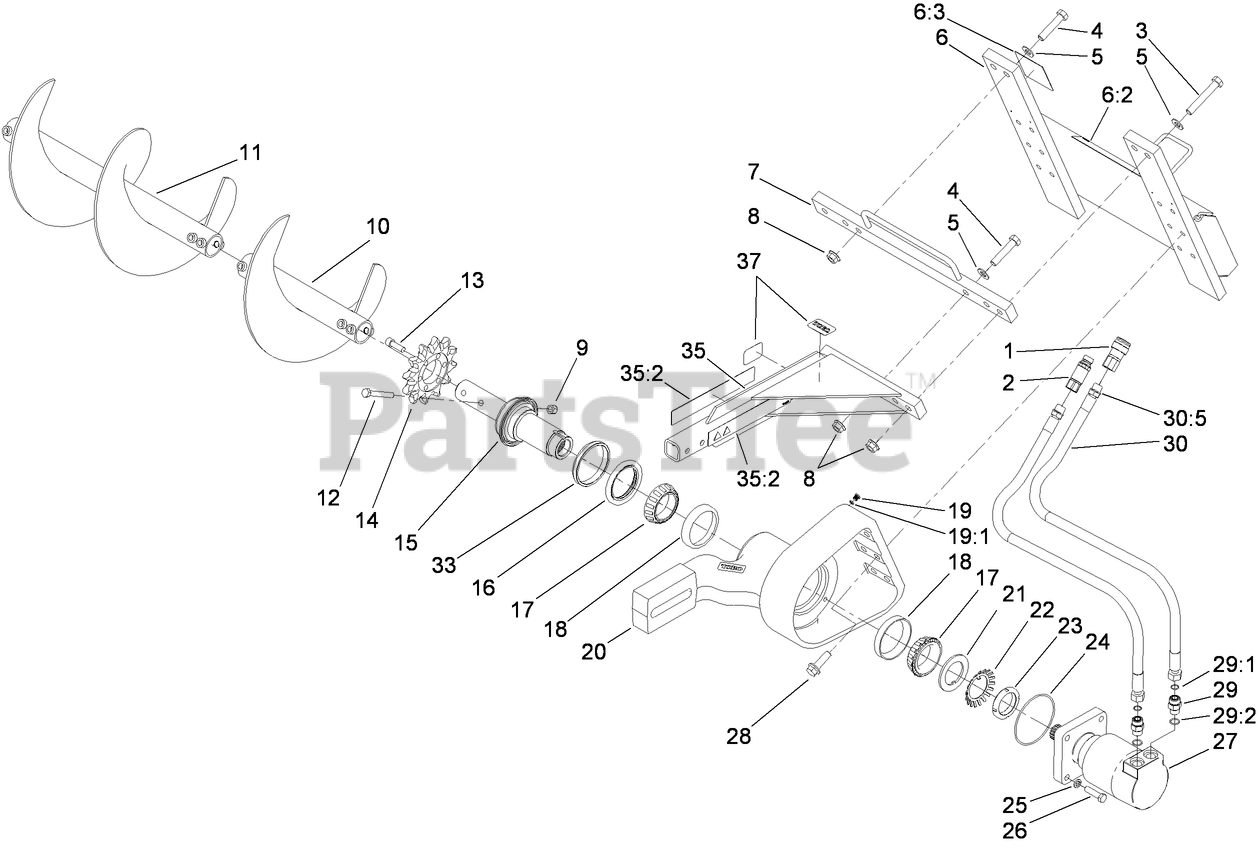

High-Torque Trencher Head Assembly Parts Diagram

  • Title

1

Toro 104-6134

COUPLER-FACE, FLUSH

$300.99

$

Usually ships in 3-6 days

0

2

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-6120

SEAL KIT

$117.99

$

In Stock, only 2 left!

0

3

Toro 104-5877

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

4

Toro 104-5895

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

5

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-1938

MOUNT ASM

$2273.99

$

Usually ships in 3-6 days

0

6:2

Toro 99-9952

DECAL-DANGER

$23.99

$

Usually ships in 3-6 days

0

6:3

Toro 99-9953

DECAL-DANGER

$46.99

$

Usually ships in 3-6 days

0

7

Toro 104-5894-03

CROSSBAR ASM

$495.99

$

Usually ships in 3-6 days

0

8

Toro 32128-50

NUT-FLANGE

$5.99

$

In Stock, Qty 20+

0

9

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-5912-03

AUGER ASM

$848.99

$

Usually ships in 3-6 days

0

11

Toro 117-3433-03

AUGER ASM

$976.99

$

Usually ships in 3-6 days

0

12

Toro 325-35

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

13

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

14

Toro 104-1964

SPROCKET-TRENCHER

$345.99

$

In Stock, only 2 left!

0

15

Toro 104-1969

SHAFT-TRENCHER

$1999.99

$

Usually ships in 3-6 days

0

16

Toro 104-1967

SEAL-SHAFT

$332.99

$

Usually ships in 3-6 days

0

17

Toro 104-1966

CONE-BEARING

$183.99

$

Usually ships in 3-6 days

0

18

Toro 104-1965

CUP-BEARING

$272.99

$

Usually ships in 3-6 days

0

19

Toro 353-990

PLUG ASM

$13.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

20

Toro 104-1931-03

MOUNT-BOOM

$4799.99

$

Usually ships in 3-6 days

0

21

Toro 104-1972

WASHER-TONGUED

$75.99

$

Usually ships in 3-6 days

0

22

Toro 104-5915

WASHER-LOCK, BEARING

$72.99

$

Usually ships in 3-6 days

0

23

Toro 104-1973

NUT-LOCK, BEARING

$93.99

$

Usually ships in 3-6 days

0

24

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

25

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

27

Toro 107-9350

MOTOR-HYD, HIGH TORQUE

$5464.99

$

Usually ships in 3-6 days

0

28

Toro 104-5870

SCREW

$17.99

$

Usually ships in 3-6 days

0

29

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

29:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

29:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

30

Toro 104-1932

HOSE ASM

$448.99

$

Usually ships in 3-6 days

0

30:5

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

33

Toro 104-5935

SPACER
(Superseded to 145-3334)

$23.99

$

Usually ships in 3-6 days

0

35

Toro 117-3444

SAFETY RAIL ASM

$890.99

$

Usually ships in 3-6 days

0

35:2

Toro 99-9952

DECAL-DANGER

$23.99

$

Usually ships in 3-6 days

0

37

Toro 98-3206

DECAL

$2.49

$

In Stock, only 1 left!

0
