225 E - Husqvarna Handheld Edger (1997-02) CARBURETOR & AIR FILTER Parts Diagram

Handheld Edger

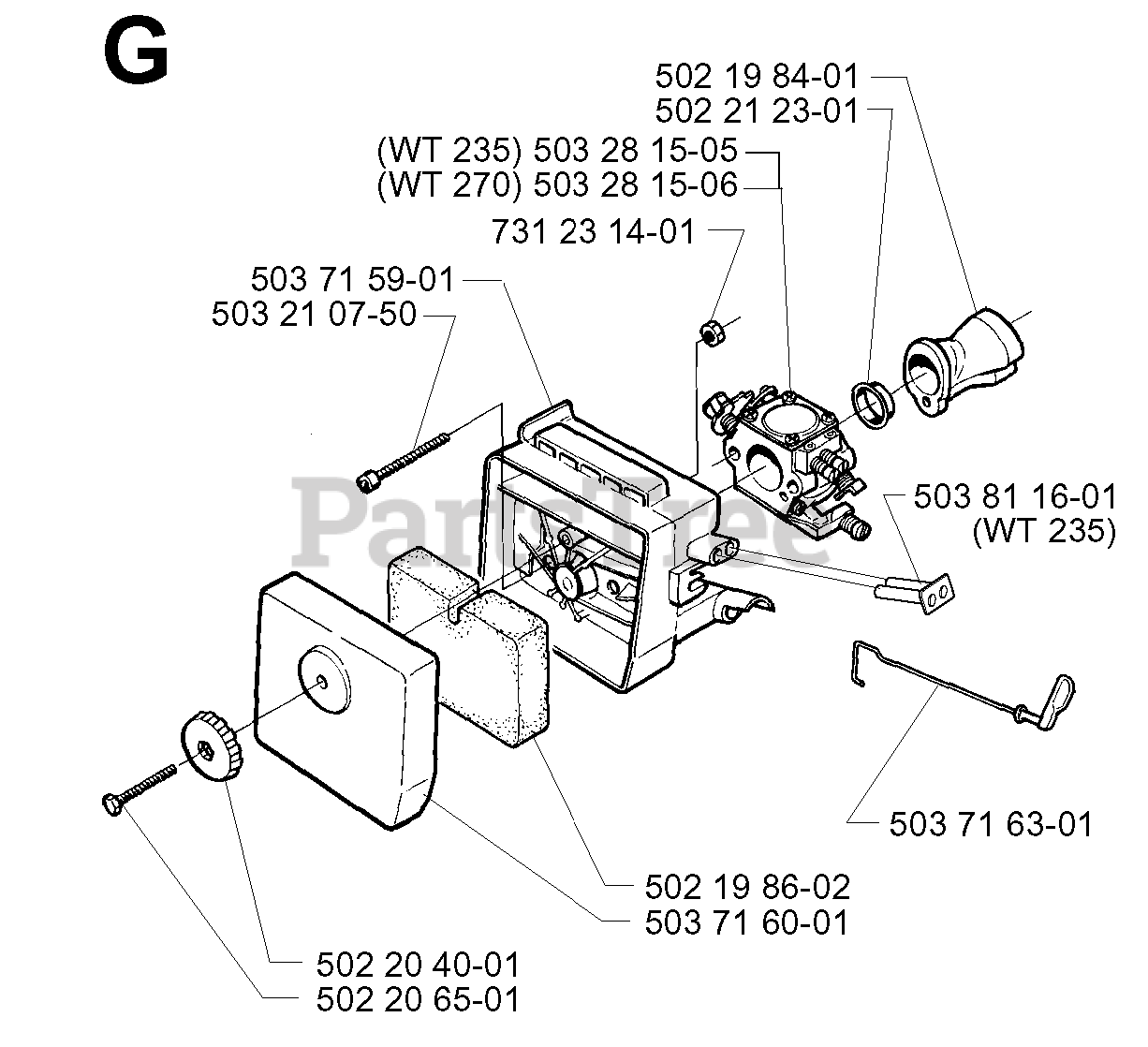

CARBURETOR & AIR FILTER Parts Diagram

  • Title

502 20 40-01

Husqvarna 502204001

KNOB

$5.99

$

In Stock, Qty 10

0

502 21 23-01

Husqvarna 502212301

GUIDE

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

Usually ships in 3-10 days

0

502 19 86-02

Husqvarna 502198602

AIR FILTER

$7.49

$

In Stock, Qty 8

0

502 19 84-01

Husqvarna 502198401

INDUCTION PIPE

$23.99

$

In Stock, only 2 left!

0

503 71 59-01

Husqvarna 503715901

HOLDER
(Superseded to 537024901)

$

$

Not available

503 28 15-05

Husqvarna 503281505

CARBURETOR
(Superseded to 577133001)

Note: WT 235

$95.99

$

In Stock, only 1 left!

0

503 71 63-01

Husqvarna 503716301

CHOKE CONTROL

$

$

Not available

503 71 60-01

Husqvarna 503716001

AIR FILTER COVER

$

$

Not available

503 81 16-01

Husqvarna 503811601

GUIDE SLEEVE

Note: WT 235

$

$

Not available

503 21 07-50

Husqvarna 503210750

SCREW

$3.99

$

In Stock, Qty 15

0

503 28 15-06

Husqvarna 503281506

CARBURETOR
(Superseded to 577133001)

Note: WT 270

$95.99

$

In Stock, only 1 left!

0

502 20 65-01

Husqvarna 502206501

SCREW 25MM THREAD LENGTH

$3.49

$

In Stock, only 2 left!

0
