22521 - Toro Grapple Rake for Dingo Compact Utility Loader (SN: 280000001 - 280999999) (2008) Grapple Rake Assembly Parts Diagram

Grapple Rake for Dingo Compact Utility Loader

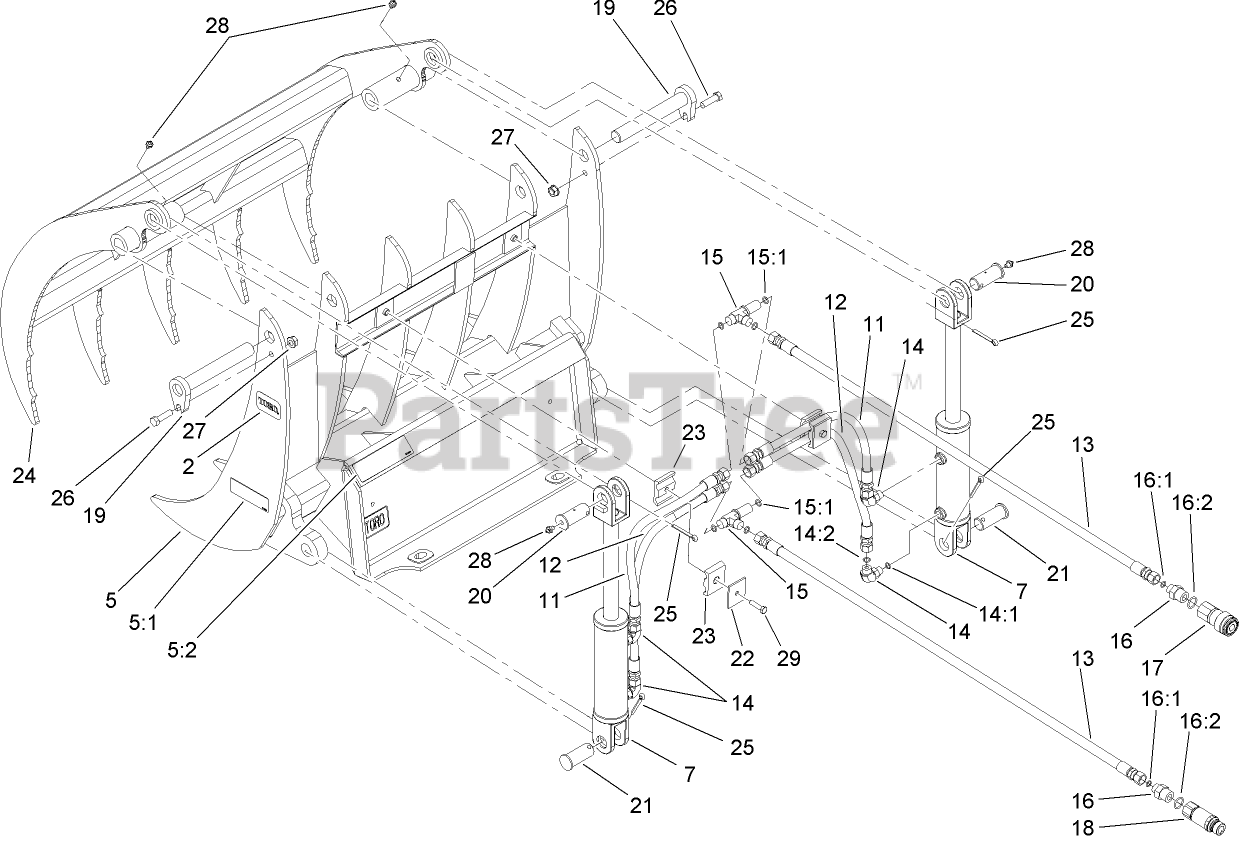

Grapple Rake Assembly Parts Diagram

  • Title

2

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

5

Toro 114-1298

BOTTOM GRAPPLE RAKE ASM

$

$

Currently unavailable

5:1

Toro 114-1281

DECAL-WARNING

$19.99

$

Usually ships in 3-6 days

0

5:2

Toro 114-1280

DECAL-CAPACITY

$28.99

$

Usually ships in 3-6 days

0

7

Toro 114-1302

See Supercession: 121-4470
(Superseded to 121-4470)

$1464.99

$

Usually ships in 3-6 days

0

11

Toro 114-1309

HOSE ASM-HYD

$

$

Not available

12

Toro 114-1310

HOSE ASM-HYD

$143.99

$

Usually ships in 3-6 days

0

13

Toro 114-1311

HOSE ASM-HYD

$198.99

$

Usually ships in 3-6 days

0

14

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

14:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 15

0

15

Toro 340-68

FITTING-TEE, BULKHEAD

$57.99

$

In Stock, only 2 left!

0

15:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

16

Toro 340-141

FITTING-STR

$33.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

16:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

17

Toro 104-6134

COUPLER-FACE, FLUSH

$300.99

$

Usually ships in 3-6 days

0

18

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$317.99

$

Usually ships in 3-6 days

0

18:1

Toro 100-6120

SEAL KIT

$117.99

$

In Stock, only 2 left!

0

19

Toro 114-1312

PIN-FLAG
(Superseded to 138-7188)

$86.99

$

Usually ships in 3-6 days

0

20

Toro 114-1313

PIN-CYLINDER, GREASEABLE
(Superseded to 140-5307)

$95.99

$

Usually ships in 3-6 days

0

21

Toro 114-1314

PIN-CYLINDER

$

$

Not available

22

Toro 114-1315

See Supercession: 115-4564
(Superseded to 115-4564)

$40.99

$

Usually ships in 3-6 days

0

23

Toro 114-1316

See Supercession: 115-4564
(Superseded to 115-4564)

$40.99

$

Usually ships in 3-6 days

0

24

Toro 114-1301

TINES-GRAPPLE, TOP
(Superseded to 138-7199-03)

$1863.99

$

Usually ships in 3-6 days

0

25

Toro 3272-33

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

26

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

28

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

29

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0
