22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 405540000 - 406499999) Radiator and Fan Assembly Parts Diagram

Dingo Compact Utility Loader

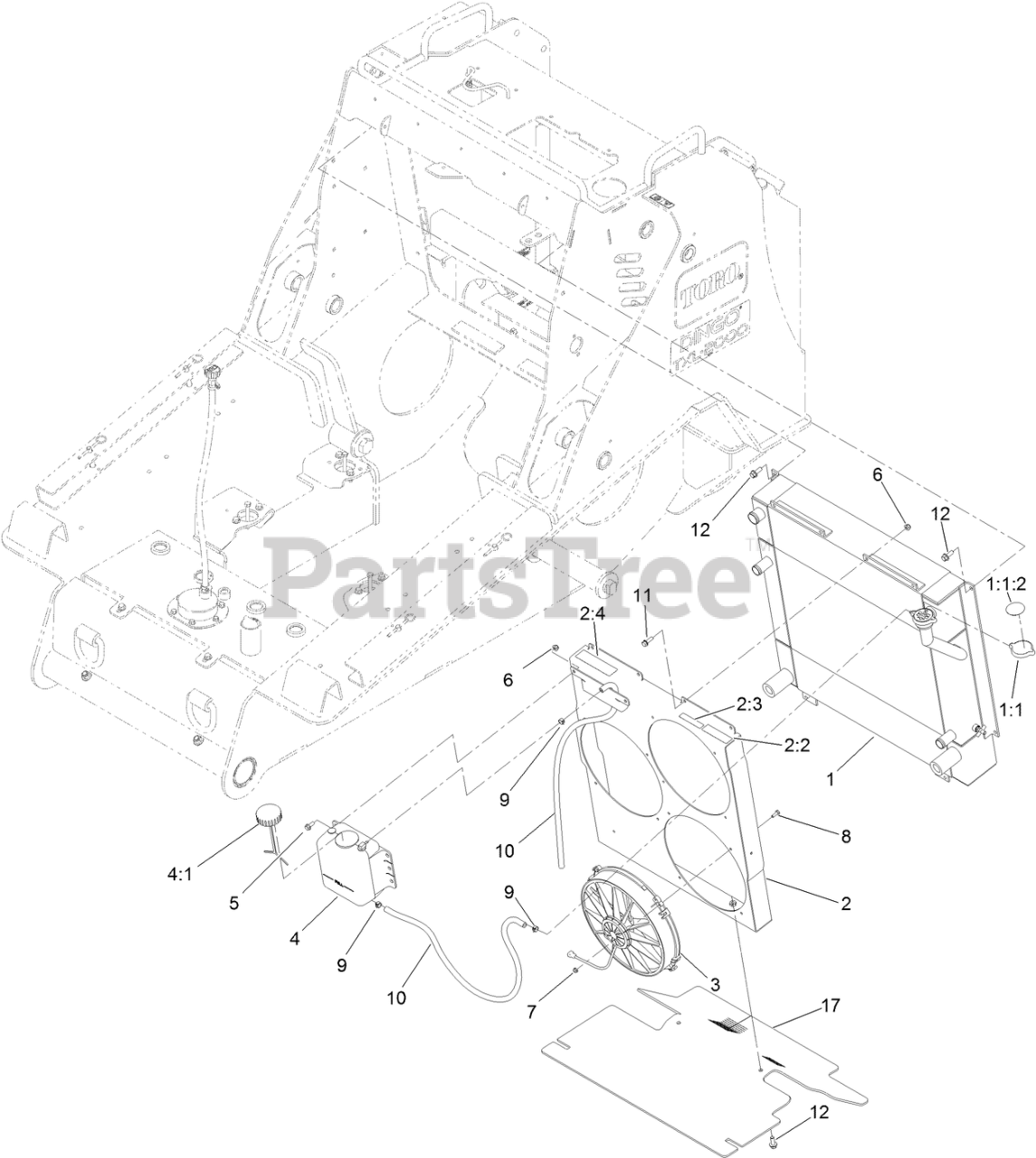

Radiator and Fan Assembly Parts Diagram

  • Title

1

Toro 136-4705

RADIATOR/COOLER ASM

$3881.99

$

Usually ships in 3-6 days

0

1:1

Toro 119-1430

RADIATOR CAP ASM
(Superseded to 117-5138)

$42.99

$

In Stock, only 4 left!

0

1:1:2

Toro 117-3276

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

2

Toro 138-4727

COOLER SHROUD ASM

$523.99

$

Usually ships in 3-6 days

0

2:2

Toro 115-4865

DECAL-RADIATOR FILL

$13.99

$

Usually ships in 3-6 days

0

2:3

Toro 93-6681

DECAL-WARNING, FAN

$15.99

$

Usually ships in 3-6 days

0

2:4

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

3

Toro 1-633831

FAN

$691.99

$

Usually ships in 3-6 days

0

4

Toro 120-5571

COOLANT RESERVOIR ASM

$201.99

$

In Stock, only 1 left!

0

4:1

Toro 87-7050

CAP-RESERVOIR

$25.99

$

In Stock, Qty 5

0

5

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

10

Toro 136-6096

HOSE-FUEL

$25.99

$

Usually ships in 3-6 days

0

11

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

12

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

17

Toro 139-5713

BAFFLE

$173.99

$

Usually ships in 3-6 days

0
