22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Alternator Components Assembly Parts Diagram

Dingo Compact Utility Loader

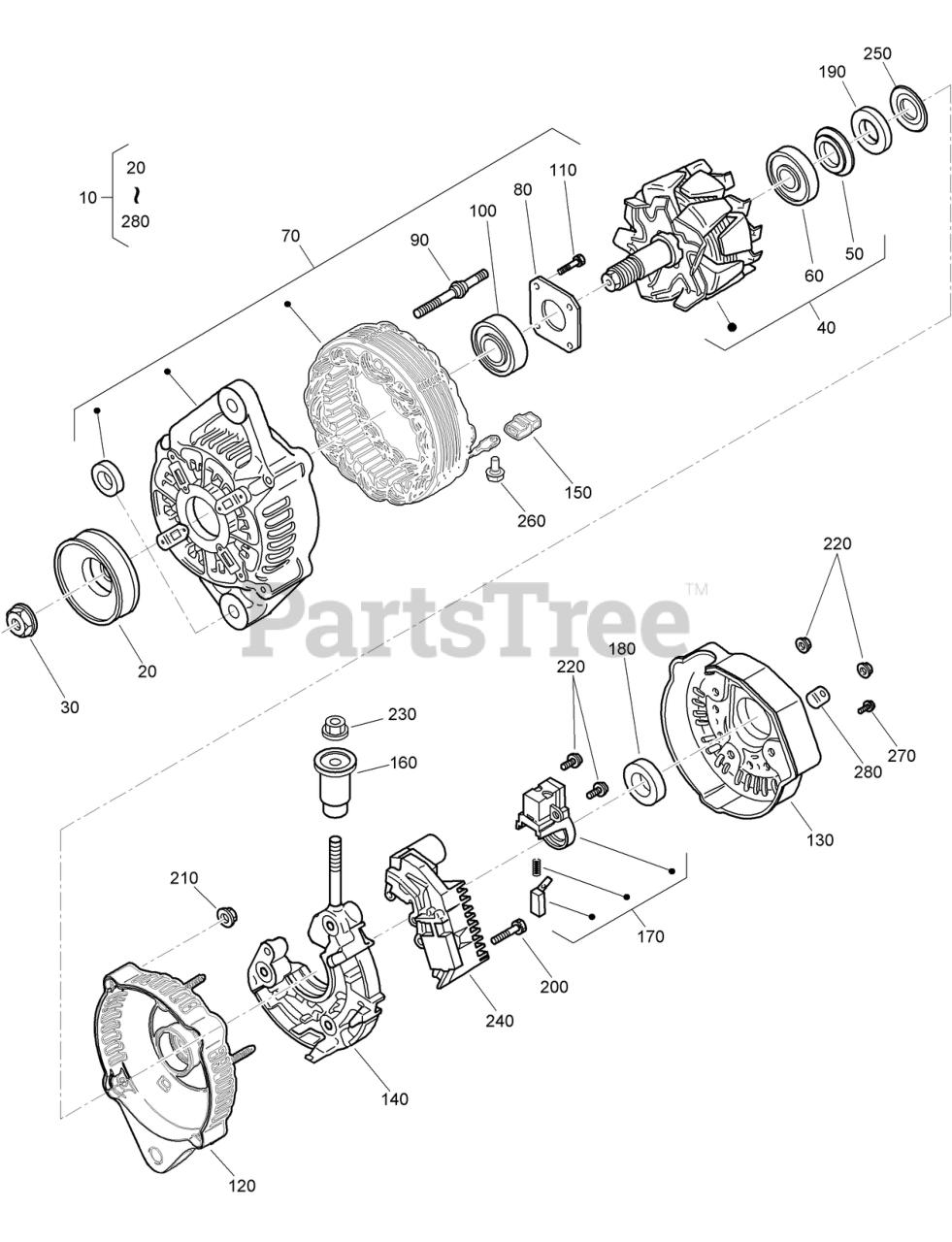

Alternator Components Assembly Parts Diagram

  • Title

10

Toro 139-9582

ALTERNATOR ASM

$1124.99

$

Usually ships in 3-6 days

0

20

Toro 139-9584

PULLEY-ALTERNATOR

$222.99

$

Usually ships in 3-6 days

0

30

Toro 139-9545

NUT

$10.99

$

Usually ships in 3-6 days

0

40

Toro 139-9585

ROTOR ASM

$1108.99

$

Usually ships in 3-6 days

0

50

Toro 139-9537

COVER-BEARING

$

$

Currently unavailable

60

Toro 139-4715

BEARING-BALL

$68.99

$

Usually ships in 3-6 days

0

70

Toro 139-9583

DRIVE END FRAME ASM

$1124.99

$

Usually ships in 3-6 days

0

80

Toro 139-9550

PLATE-RETAINER

$

$

Currently unavailable

90

Toro 139-9544

BOLT-THROUGH

$57.99

$

Usually ships in 3-6 days

0

100

Toro 139-9551

BEARING-BALL

$83.99

$

Usually ships in 3-6 days

0

110

Toro 139-9557

BOLT

$

$

Currently unavailable

120

Toro 139-9546

FRAME-END

$

$

Currently unavailable

130

Toro 139-9586

COVER-END, REAR

$

$

Currently unavailable

140

Toro 139-9587

RECTIFIER ASM

$

$

Currently unavailable

150

Toro 139-9552

BUSHING-INSULATION

$

$

Currently unavailable

160

Toro 139-9588

BUSHING-INSULATION

$

$

Currently unavailable

170

Toro 139-9547

HOLDER-BRUSH

$498.99

$

Usually ships in 3-6 days

0

180

Toro 139-9548

RING-SEAL

$48.99

$

Usually ships in 3-6 days

0

190

Toro 139-9549

RING-SEAL

$33.99

$

Usually ships in 3-6 days

0

200

Toro 139-9556

SCREW-HEAD, ROUND

$10.99

$

Usually ships in 3-6 days

0

210

Toro 139-9538

NUT

$

$

Currently unavailable

220

Toro 139-9539

SCREW-HEAD, ROUND

$

$

Currently unavailable

230

Toro 139-9555

NUT

$6.99

$

Usually ships in 3-6 days

0

240

Toro 139-9589

REGULATOR ASM

$910.99

$

Usually ships in 3-6 days

0

250

Toro 139-9554

WASHER

$28.99

$

Usually ships in 3-6 days

0

260

Toro 139-9558

SCREW-HEAD, ROUND

$3.49

$

Usually ships in 3-6 days

0

270

Toro 139-9559

SCREW-HEAD, ROUND

$3.49

$

Usually ships in 3-6 days

0

280

Toro 139-9553

PLATE-TERMINAL

$14.99

$

Usually ships in 3-6 days

0
