22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Auxiliary Manifold Assembly No. 136-4872 Parts Diagram

Dingo Compact Utility Loader

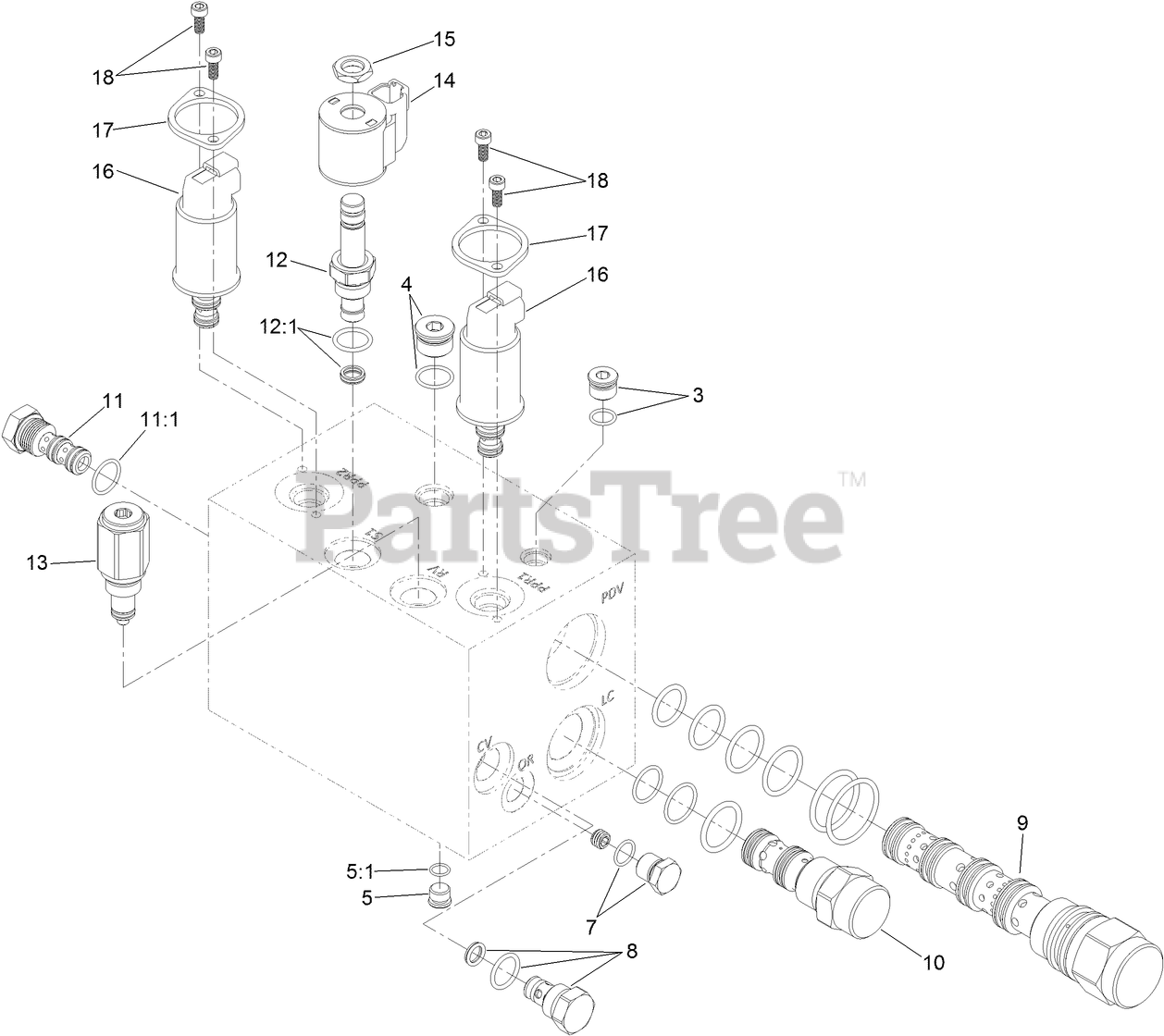

Auxiliary Manifold Assembly No. 136-4872 Parts Diagram

  • Title

1

BLOCK-MANIFOLD

Note: Not illustrated

$

$

Not available

1

BLOCK-MANIFOLD

Note: Not serviced separately

$

$

Not available

2

Plug-Expander

Note: Not illustrated

$

$

Not available

2

Plug-Expander

Note: Not serviced separately

$

$

Not available

3

Toro 112-9213

PLUG

$5.99

$

Usually ships in 3-6 days

0

4

Toro 106-1027

PLUG-HYD

$19.99

$

Usually ships in 3-6 days

0

5

Toro 353-990

PLUG ASM

$13.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

6

Toro 139-4832

ORIFICE-.035

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

7

Toro 353-509

DISCONTINUED

$2.99

$

Usually ships in 3-6 days

0

8

Toro 139-4833

VALVE-CHECK,

$57.99

$

Usually ships in 3-6 days

0

9

Toro 139-1214

VALVE-PROPORTIONAL, DIRECTIONAL

$504.99

$

Usually ships in 3-6 days

0

10

Toro 139-4834

CARTRIDGE-LOGIC,

$261.99

$

Usually ships in 3-6 days

0

11

Toro 131-6506

SHUTTLE-LOAD

$107.99

$

Usually ships in 3-6 days

0

11:1

Toro 110-8773

SEAL KIT

$24.99

$

Usually ships in 3-6 days

0

12

Toro 120-6562

VALVE-SOLENOID

$285.99

$

Usually ships in 3-6 days

0

12:1

Toro 105-9156

SEAL KIT

$23.99

$

Usually ships in 3-6 days

0

13

Toro 139-1217

VALVE-RELIEF

$283.99

$

Usually ships in 3-6 days

0

14

Toro 112-0197

E COIL-12V DC

$95.99

$

Usually ships in 3-6 days

0

15

Toro 110-2634

NUT-COIL

$7.99

$

Usually ships in 3-6 days

0

16

Toro 139-1218

VALVE-PROP PRESS REDUCING/RELIEVING

$261.99

$

Usually ships in 3-6 days

0

17

Toro 138-3825

PLATE-MOUNTING, STANDARD

$7.49

$

Usually ships in 3-6 days

0

18

Toro 138-3827

SCREW

$1.49

$

Usually ships in 3-6 days

0
