22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Control Console Assembly Parts Diagram

Dingo Compact Utility Loader

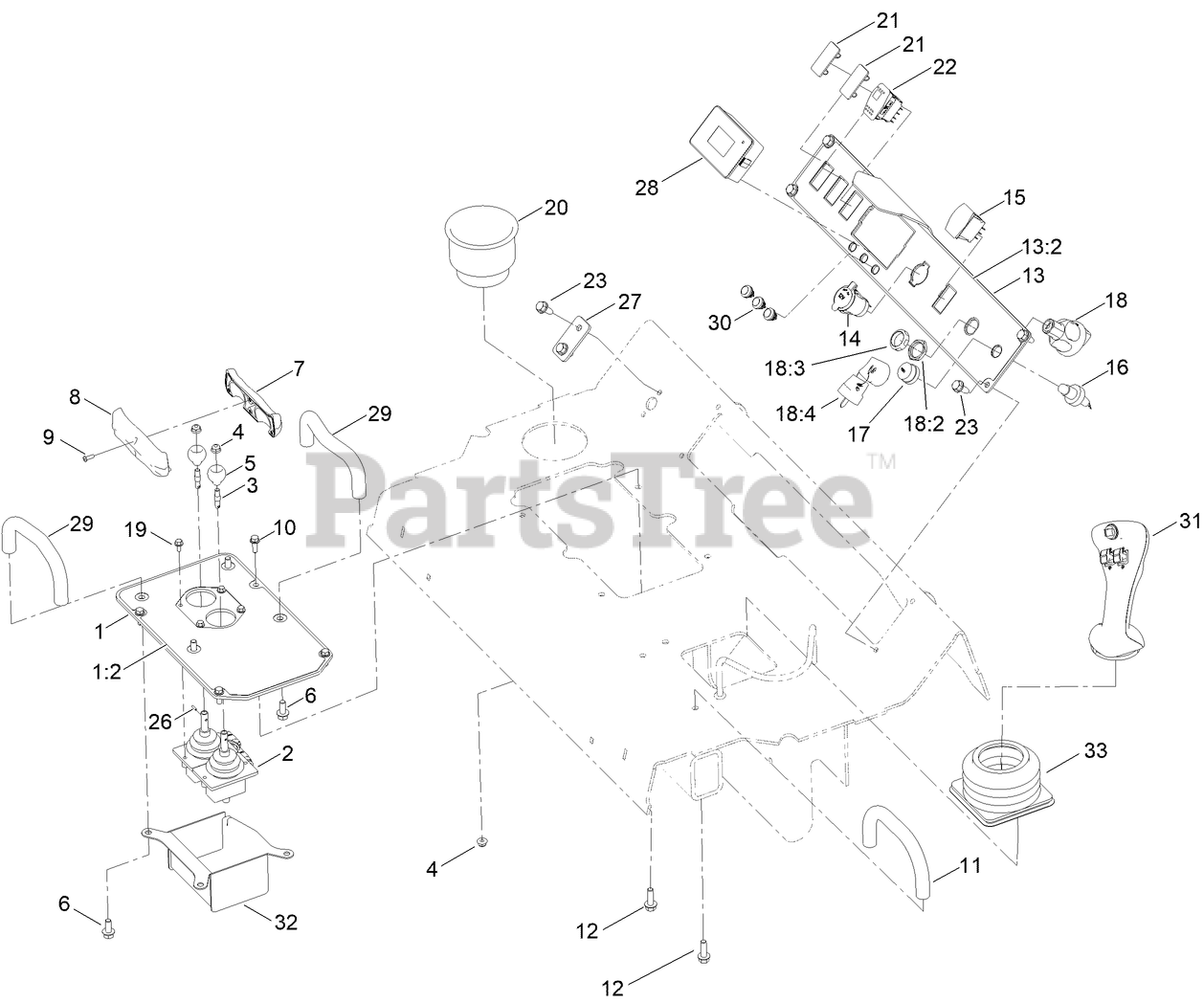

Control Console Assembly Parts Diagram

  • Title

1

Toro 138-4729

PLATE-CONTROLS, TRACTION

$77.99

$

Usually ships in 3-6 days

0

1:2

Toro 137-5420

DECAL-TRACTION

$

$

Currently unavailable

2

Toro 136-4784

LEVER-CONTROL

$1960.99

$

Usually ships in 3-6 days

0

3

Toro 137-0431

SHAFT-HANDLE

$23.99

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 130-7723

BALL-TRACTION

$13.99

$

In Stock, only 2 left!

0

6

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

7

Toro 139-1166

HANDLE-FRONT

$47.99

$

Usually ships in 3-6 days

0

8

Toro 139-1167

HANDLE-REAR

$47.99

$

Usually ships in 3-6 days

0

9

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

10

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

11

Toro 112-2620

BAR-REFERENCE

$71.99

$

Usually ships in 3-6 days

0

12

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 139-5745

PLATE-CONTROL, MAIN

$165.99

$

Usually ships in 3-6 days

0

13:2

Toro 139-5744

DECAL-CONTROLS

$29.99

$

Usually ships in 3-6 days

0

14

Toro 126-6499

PORT-POWER, 12V

$17.99

$

Usually ships in 3-6 days

0

15

Toro 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0

16

Toro 112-3324

SWITCH-HORN

$53.99

$

Usually ships in 3-6 days

0

17

Toro 112-3313

NUT-WEATHERPROOF

$8.49

$

Usually ships in 3-6 days

0

18

Toro 121-5159

IGNITION SWITCH ASM

$134.99

$

In Stock, only 2 left!

0

18:2

Toro 121-5160

NUT-HEX

$124.99

$

Usually ships in 3-6 days

0

18:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.99

$

Usually ships in 3-6 days

0

18:4

Toro 121-5162

SET-KEY, IGNITION

$37.99

$

In Stock, Qty 10

0

19

Toro 120-4579

SCREW-HFH

$1.99

$

Usually ships in 3-6 days

0

20

Toro AU8EO24121

CUP-HOLDER

$4.49

$

Usually ships in 3-6 days

0

21

Toro 99-7420

PLUG-HOLE

$9.49

$

Usually ships in 3-6 days

0

22

Toro 100-8072

SWITCH

$110.99

$

Usually ships in 3-6 days

0

23

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

26

Toro 137-0432

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

27

Toro 137-0439-01

PLATE-BLANK

$

$

Currently unavailable

28

Toro 122-1201

TDM 2002

$229.99

$

Usually ships in 3-6 days

0

29

Toro 138-4693

BAR-REFERENCE

$70.99

$

Usually ships in 3-6 days

0

30

Toro 136-9678

SWITCH-PUSHBUTTON

$63.99

$

Usually ships in 3-6 days

0

31

Toro 139-4853

HANDLE-JOYSTICK,

$3208.99

$

Usually ships in 3-6 days

0

32

Toro 138-2294-03

COVER-VALVE

$117.99

$

Usually ships in 3-6 days

0

33

Toro 140-1662

BOOT

$27.99

$

Usually ships in 3-6 days

0
