22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Hood and Access Panel Assembly Parts Diagram

Dingo Compact Utility Loader

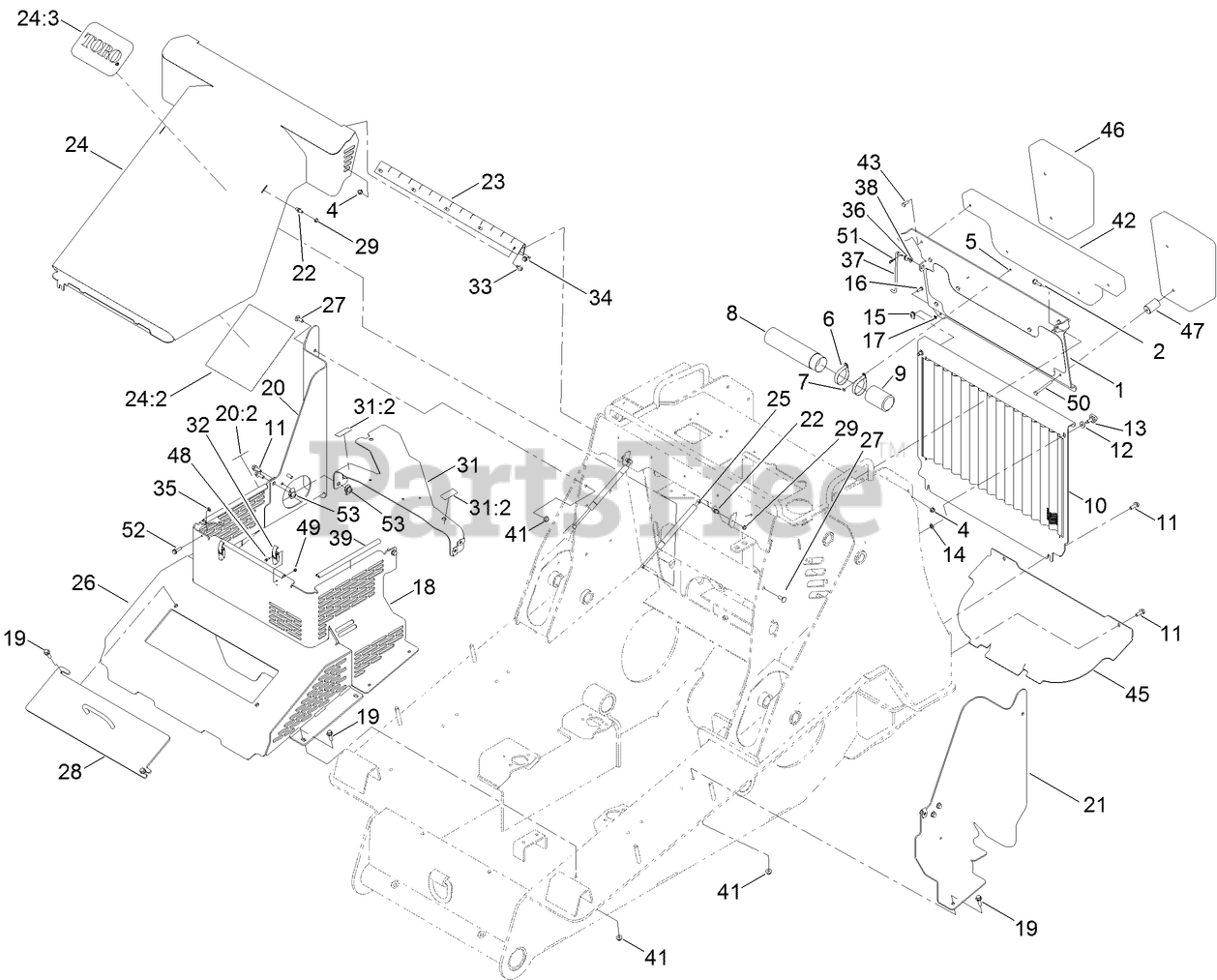

Hood and Access Panel Assembly Parts Diagram

  • Title

1

Toro 136-4854-03

PANEL-REAR

$529.99

$

Usually ships in 3-6 days

0

2

Toro 108-3744

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

6

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

7

Toro 3269-10

WASHER-BACK

$0.99

$

Usually ships in 3-6 days

0

8

Toro 104-7050

TUBE-MANUAL

$10.99

$

Usually ships in 3-6 days

0

9

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

10

Toro 133-9353-03

COVER-REAR

$906.99

$

Usually ships in 3-6 days

0

11

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

12

Toro 106-0565

WASHER-RUBBER

$6.49

$

In Stock, only 2 left!

0

13

Toro 95-9648

KNOB

$24.99

$

In Stock, only 1 left!

0

14

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

18

Toro 139-7063-03

GRILL-PANEL

$701.99

$

Usually ships in 3-6 days

0

19

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

20

Toro 140-4455

COVER-GRILLE, RH

$430.99

$

Usually ships in 3-6 days

0

20:2

Toro 115-2047

DECAL-SURFACE, HOT

$18.99

$

Usually ships in 3-6 days

0

21

Toro 139-7065-03

PANEL-SIDE, LH

$279.99

$

Usually ships in 3-6 days

0

22

Toro 103-5752

STUD-BALL

$8.49

$

Usually ships in 3-6 days

0

23

Toro 137-0378

HINGE-PIANO

$139.99

$

Usually ships in 3-6 days

0

24

Toro 138-4736

HOOD ASM

$1002.99

$

Usually ships in 3-6 days

0

24:2

Toro 137-5419

DECAL-SERVICE

$21.99

$

Usually ships in 3-6 days

0

24:3

Toro 92-1242

DECAL

$33.99

$

Usually ships in 3-6 days

0

25

Toro 114-5532

CYLINDER-GAS

$145.99

$

Usually ships in 3-6 days

0

26

Toro 138-2409-03

FRO0NT COVER ASM

$1022.99

$

Usually ships in 3-6 days

0

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 137-0440-03

COVER PLATE ASM

$219.99

$

Usually ships in 3-6 days

0

29

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

31

Toro 140-4456

BRACKET-AIR CLEANER

$175.99

$

Usually ships in 3-6 days

0

31:2

Toro 115-2047

DECAL-SURFACE, HOT

$18.99

$

Usually ships in 3-6 days

0

32

Toro 105-3912

LATCH-DRAW

$55.99

$

Usually ships in 3-6 days

0

33

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

34

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

35

Toro 109-5667

RING-RETAINING, BOLT

$7.99

$

In Stock, only 2 left!

0

36

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

37

Toro 137-5350

ROD-PROP

$58.99

$

Usually ships in 3-6 days

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 137-0393

LINER-FOAM

$14.99

$

Usually ships in 3-6 days

0

41

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

42

Toro 137-0405

CUSHION-PAD

$286.99

$

Usually ships in 3-6 days

0

43

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Toro 132-8485-01

COVER-ACCESS, BOTTOM

$168.99

$

Usually ships in 3-6 days

0

46

Toro 137-0536

PAD-REAR

$183.99

$

Usually ships in 3-6 days

0

47

Toro 138-2318

SPACER-PAD

$28.99

$

Usually ships in 3-6 days

0

48

Toro 112-3169

SCREW-HHF, SERRATED

$0.99

$

Usually ships in 3-6 days

0

49

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

50

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

51

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

52

Toro 32144-49

SCREW-HWHTF

$5.99

$

In Stock, only 2 left!

0

53

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0
