22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Piston and Crankshaft Assembly Parts Diagram

Dingo Compact Utility Loader

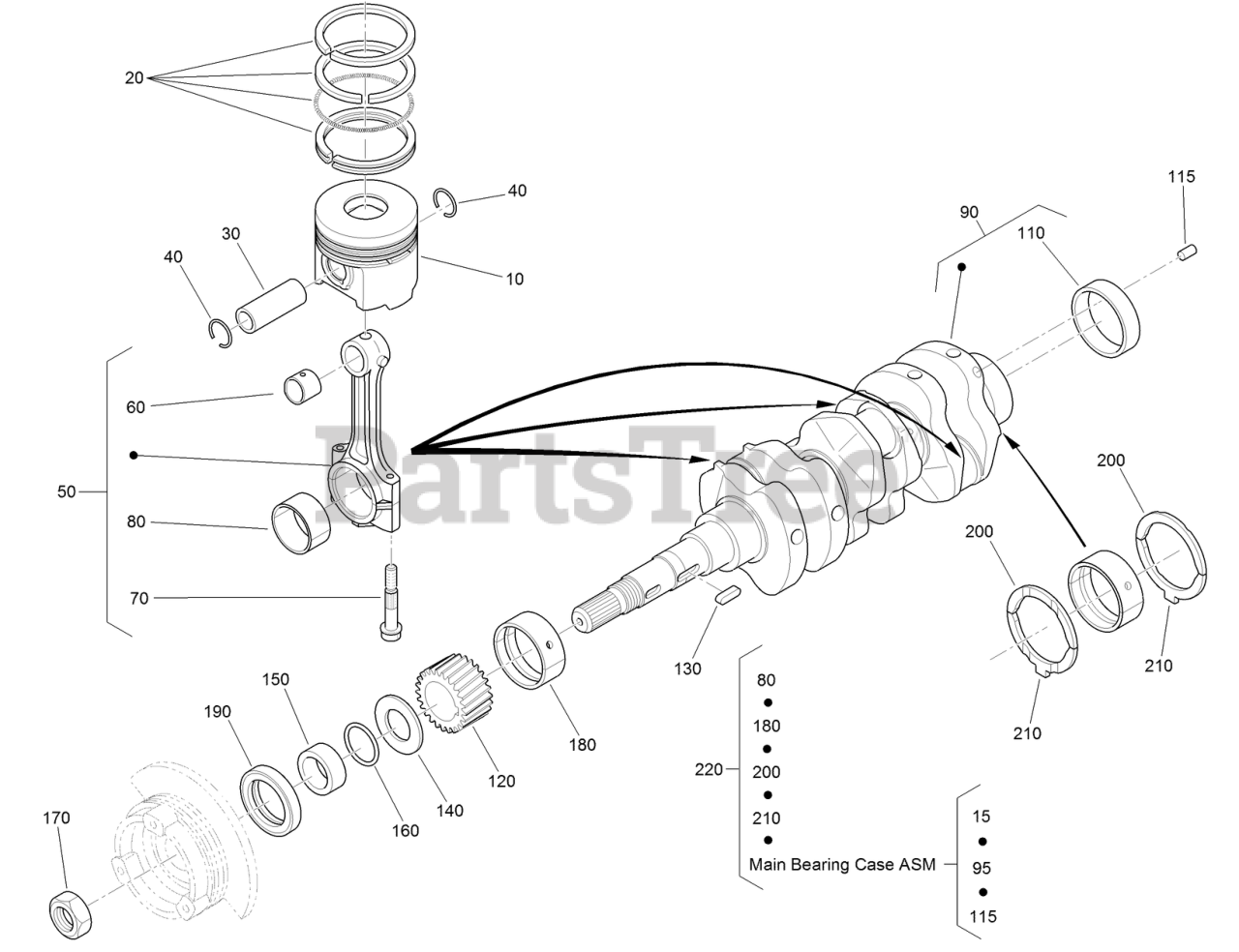

Piston and Crankshaft Assembly Parts Diagram

  • Title

10

Toro 139-9799

PISTON (05)

$342.99

$

Usually ships in 3-6 days

0

20

Toro 139-9674

PISTON RING ASM

$

$

Currently unavailable

20

Toro 139-9675

PISTON RING ASM

$

$

Currently unavailable

30

Toro 139-9594

PIN-PISTON

$

$

Currently unavailable

40

Toro 139-9634

CIRCLIP-INTERNAL

$

$

Currently unavailable

50

Toro 130-1470

CONNECTING ROD ASM

$969.99

$

Usually ships in 3-6 days

0

60

Toro 139-9676

BUSHING-PIN, PISTON

$

$

Currently unavailable

70

Toro 139-9694

BOLT-ROD, CONNECTING

$

$

Currently unavailable

80

Toro 139-9575

METAL-CRANKPIN

$

$

Currently unavailable

80

Toro 139-9576

METAL-CRANKPIN (02)

$

$

Currently unavailable

80

Toro 139-9577

METAL-CRANKPIN (04)

$

$

Currently unavailable

90

Toro 139-9653

CRANKSHAFT

$7569.99

$

Usually ships in 3-6 days

0

110

Toro 98-7474

SLEEVE-CRANKSHAFT

$82.99

$

Usually ships in 3-6 days

0

115

Toro 139-9595

PIN-STRAIGHT

$

$

Currently unavailable

120

Toro 139-4712

GEAR-CRANKSHAFT

$283.99

$

Usually ships in 3-6 days

0

130

Toro 115-8552

KEY-FEATHER

$2.99

$

Usually ships in 3-6 days

0

140

Toro 98-7476

SLINGER-OIL

$19.99

$

Usually ships in 3-6 days

0

150

Toro 98-7477

COLLAR-CRANKSHAFT

$84.99

$

Usually ships in 3-6 days

0

160

Toro 98-7478

O-RING

$3.99

$

Usually ships in 3-6 days

0

170

Toro 98-7479

NUT-CRANKSHAFT

$37.99

$

Usually ships in 3-6 days

0

180

Toro 139-9613

METAL-CRANKSHAFT

$

$

Currently unavailable

180

Toro 108-7076

METAL-CRANKSHAFT (-0.20MM)

$219.99

$

Usually ships in 3-6 days

0

180

Toro 108-7077

METAL-CRANKSHAFT (-0.40MM)

$89.99

$

Usually ships in 3-6 days

0

190

Toro 139-4709

SEAL-OIL

$26.99

$

Usually ships in 3-6 days

0

200

Toro 139-9615

METAL-SIDE

$

$

Currently unavailable

200

Toro 108-7079

METAL-SIDE (+0.20MM)

$37.99

$

Usually ships in 3-6 days

0

200

Toro 108-7080

METAL-SIDE (+0.40MM)

$56.99

$

Usually ships in 3-6 days

0

210

Toro 139-9616

METAL-SIDE

$

$

Currently unavailable

210

Toro 108-7082

METAL-SIDE (+0.20MM)

$37.99

$

Usually ships in 3-6 days

0

210

Toro 108-7083

METAL-SIDE (+0.40MM)

$37.99

$

Usually ships in 3-6 days

0

220

Toro 139-9655

ENGINE METAL KIT

$749.99

$

Usually ships in 3-6 days

0

220

Toro 108-7076

METAL-CRANKSHAFT (-0.20MM)

$219.99

$

Usually ships in 3-6 days

0

220

Toro 139-9656

ENGINE METAL KIT

$984.99

$

Usually ships in 3-6 days

0
