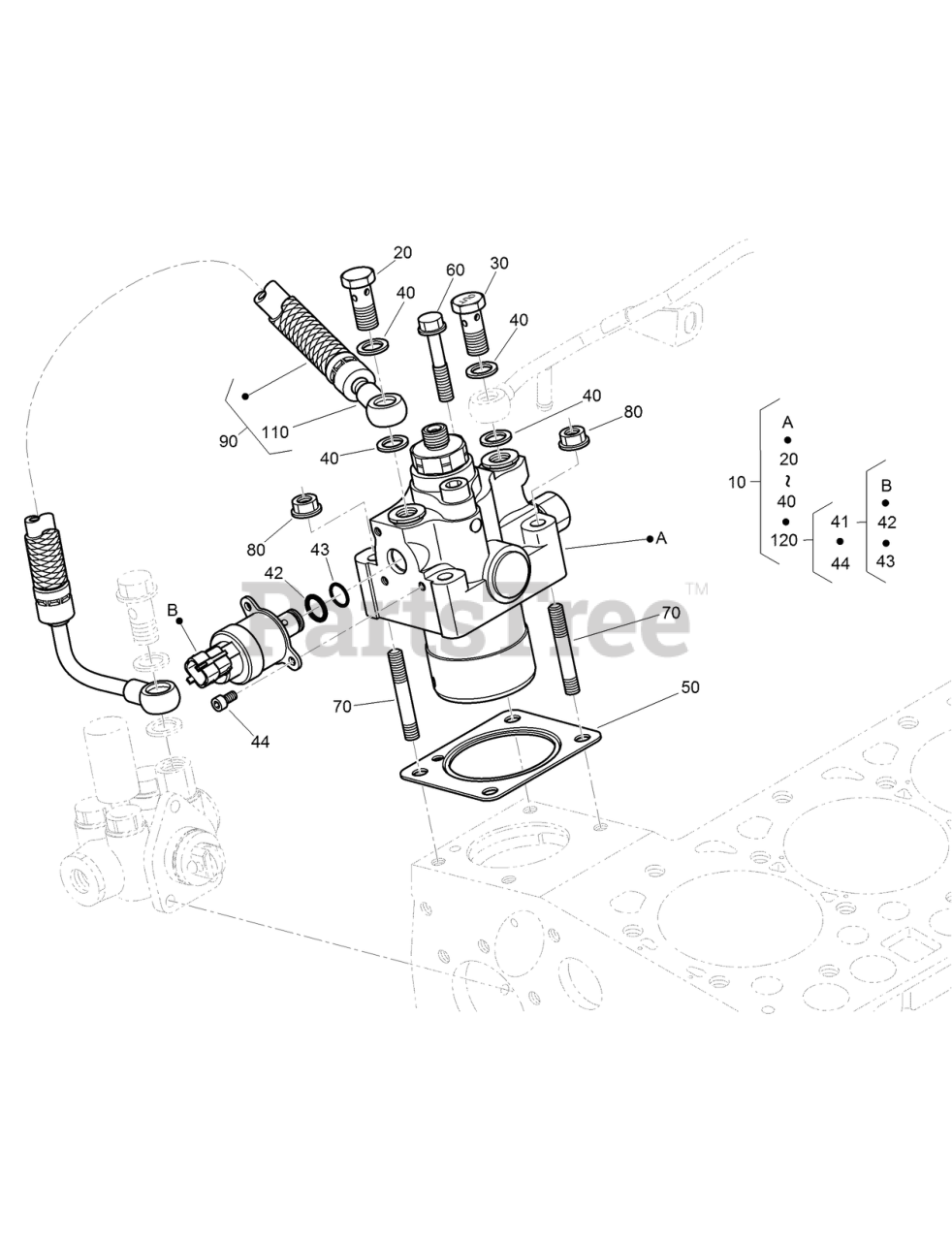

22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Supply Pump Assembly Parts Diagram

Dingo Compact Utility Loader

Supply Pump Assembly Parts Diagram

  • Title

10

Toro 139-9738

SUPPLY PUMP ASM

$7056.99

$

Usually ships in 3-6 days

0

20

Toro 139-9721

BOLT-JOINT

$124.99

$

Usually ships in 3-6 days

0

30

Toro 139-9722

BOLT-JOINT

$112.99

$

Usually ships in 3-6 days

0

40

Toro 139-9707

GASKET

$4.49

$

Usually ships in 3-6 days

0

41

Toro 139-9739

VALVE ASM

$2413.99

$

Usually ships in 3-6 days

0

42

Toro 139-9725

O-RING (SCV 1)

$19.99

$

Usually ships in 3-6 days

0

43

Toro 139-9726

O-RING (SCV 2)

$18.99

$

Usually ships in 3-6 days

0

44

Toro 139-9718

BOLT

$24.99

$

Usually ships in 3-6 days

0

50

Toro 139-9709

GASKET-PUMP

$7.99

$

Usually ships in 3-6 days

0

60

Toro 139-9717

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

70

Toro 139-9719

STUD

$4.49

$

Usually ships in 3-6 days

0

80

Toro 112-2492

NUT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

90

Toro 139-4707

FUEL HOSE ASM

$763.99

$

Usually ships in 3-6 days

0

110

Toro 139-9632

FUEL HOSE

$267.99

$

Usually ships in 3-6 days

0

120

Toro 139-9745

VALVE KIT

$2159.99

$

Usually ships in 3-6 days

0
