22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Track Mount Assembly Parts Diagram

Dingo Compact Utility Loader

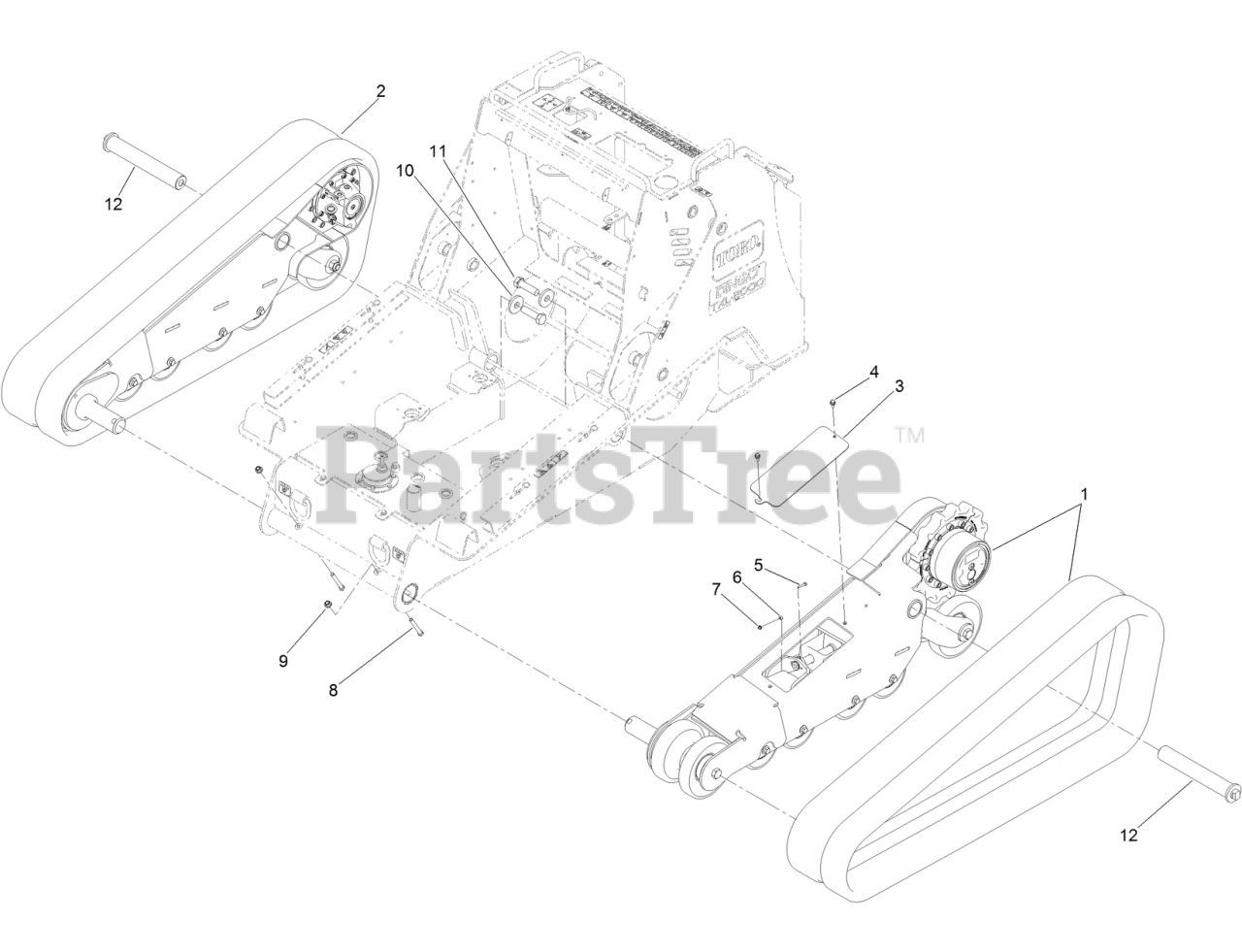

Track Mount Assembly Parts Diagram

  • Title

1

LH TRACK ASM

Note: Not serviced separately

$

$

Not available

2

RH TRACK ASM

Note: Not serviced separately

$

$

Not available

3

Toro 137-0513-03

COVER

$53.99

$

Usually ships in 3-6 days

0

4

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

5

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

6

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

7

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

8

Toro 116-3114

BOLT-TAP

$17.99

$

Usually ships in 3-6 days

0

9

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

10

Toro 133-0287

WASHER-WHEEL

$13.99

$

Usually ships in 3-6 days

0

11

Toro AU426-1656

SCREW-CAP, HH

$21.99

$

Usually ships in 3-6 days

0

12

Toro 138-2308

SHAFT-MOUNT, REAR

$381.99

$

Usually ships in 3-6 days

0
