22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 414400000 - 415299999) Platform Assembly Parts Diagram

Dingo Compact Utility Loader

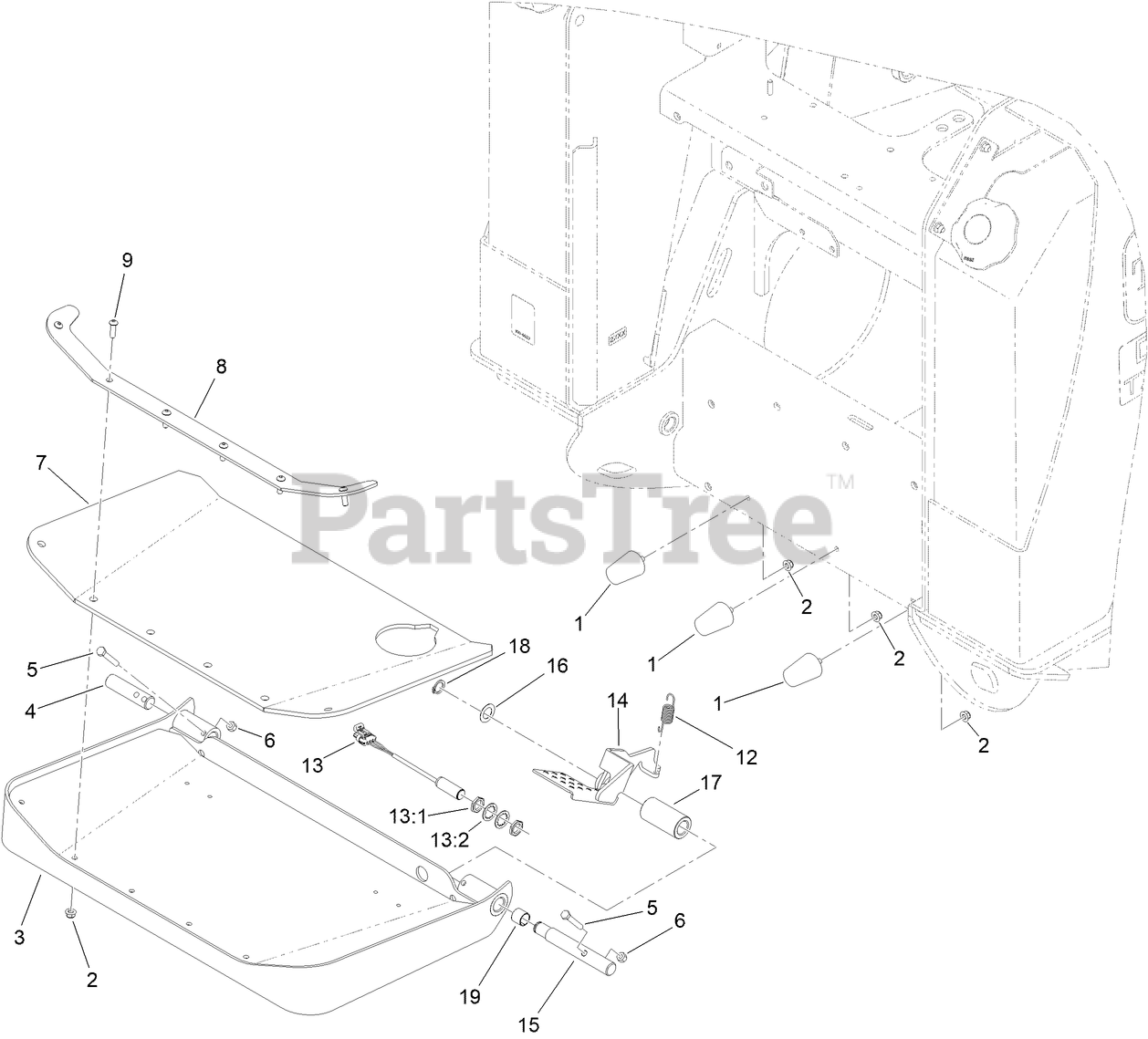

Platform Assembly Parts Diagram

  • Title

1

Toro 110-5070

BUMPER

$15.99

$

In Stock, only 2 left!

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 138-4672-03

PLATFORM

$661.99

$

Usually ships in 3-6 days

0

4

Toro 125-3749

PIN-PIVOT

$40.99

$

Usually ships in 3-6 days

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 138-4674

PAD-PLATFORM

$133.99

$

Usually ships in 3-6 days

0

8

Toro 138-4677-03

BRACKET-CLAMP, PLATFORM

$83.99

$

Usually ships in 3-6 days

0

9

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

12

Toro 137-6189

SPRING-EXTENSION

$3.99

$

In Stock, Qty 10

0

13

Toro 115-5300

PROXIMITY SWITCH ASM

$166.99

$

In Stock, Qty 20+

0

13:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

13:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$12.99

$

In Stock, only 4 left!

0

14

Toro 144-0735-03

PEDAL ASM, [BLACK]

$155.99

$

Usually ships in 3-6 days

0

15

Toro 144-0794

PIN-PIVOT

$79.99

$

Usually ships in 3-6 days

0

16

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

17

Toro 144-0737

SPACER

$84.99

$

Usually ships in 3-6 days

0

18

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

19

Toro 94-9609

BUSHING-STRAIGHT

$9.99

$

Usually ships in 3-6 days

0
