22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 405539999) Lift Valve and Pump Assembly Parts Diagram

Dingo Compact Utility Loader

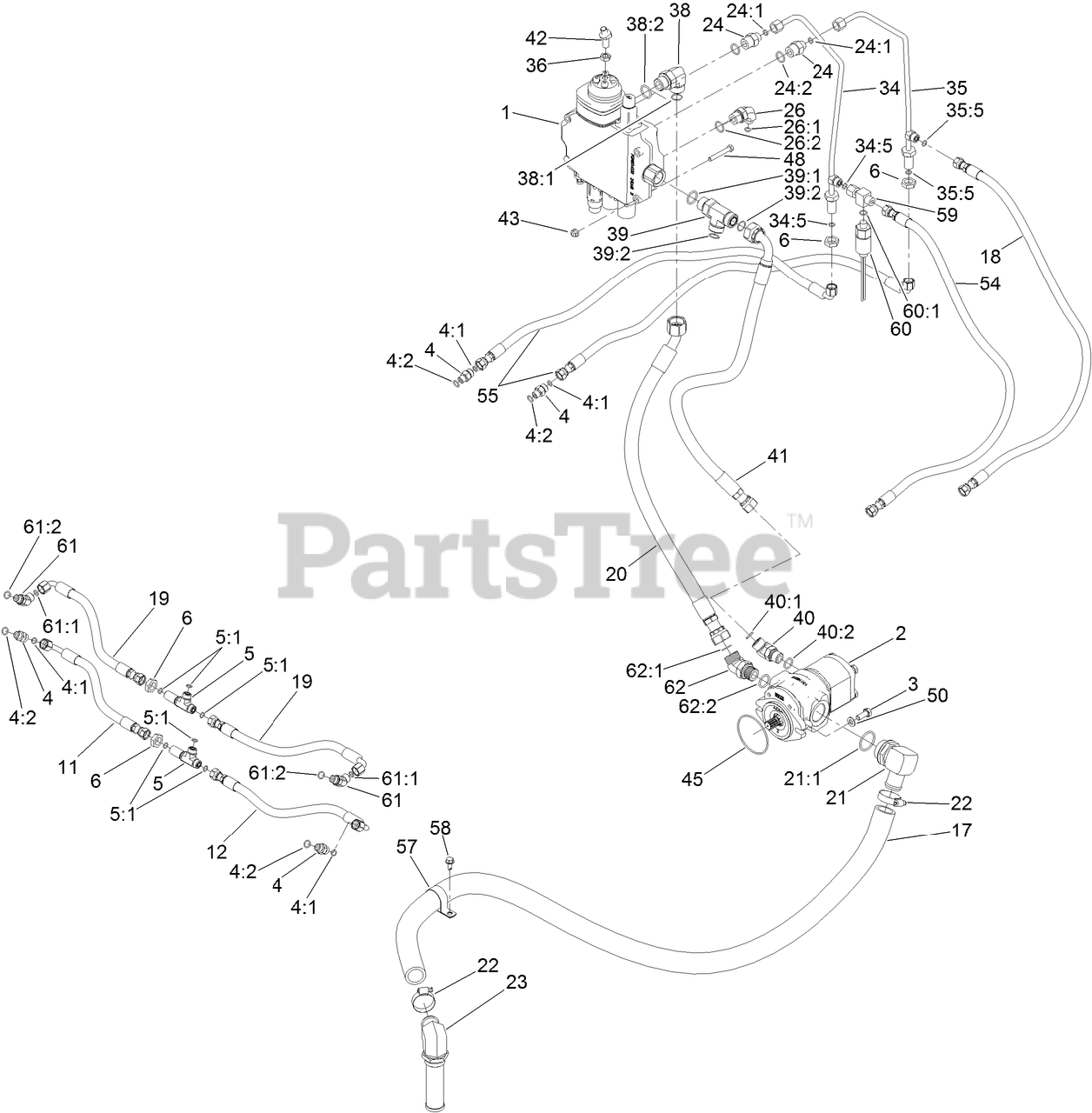

Lift Valve and Pump Assembly Parts Diagram

  • Title

1

Toro 136-4783

LIFT VALVE ASM

$4616.99

$

Usually ships in 3-6 days

0

2

Toro 133-0281

GEAR PUMP ASM

$1953.99

$

Usually ships in 3-6 days

0

3

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 340-68

FITTING-TEE, BULKHEAD

$57.99

$

In Stock, only 2 left!

0

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

6

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

11

Toro 139-1150

HYD HOSE ASM

$85.99

$

Usually ships in 3-6 days

0

12

Toro 139-1151

HYD HOSE ASM

$88.99

$

Usually ships in 3-6 days

0

17

Toro 133-9377

HOSE

$231.99

$

Usually ships in 3-6 days

0

18

Toro 133-9372

HYD HOSE ASM

$96.99

$

Usually ships in 3-6 days

0

19

Toro 139-1152

HYD HOSE ASM

$80.99

$

Usually ships in 3-6 days

0

20

Toro 133-9394

HYD HOSE ASM

$180.99

$

Usually ships in 3-6 days

0

21

Toro 92-7526

FITTING-HYD 90 SPCL

$191.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-101

O-RING

$3.99

$

Usually ships in 3-6 days

0

22

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

23

Toro 130-7582

STRAINER-SUCTION
(Superseded to 145-0622)

$175.99

$

Usually ships in 3-6 days

0

24

Toro 340-141

FITTING-STR

$33.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

24:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

26

Toro 340-130

FITTING-ELBOW 90

$132.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

26:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

34

Toro 136-6080

HYD TUBE ASM

$110.99

$

Usually ships in 3-6 days

0

34:5

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

35

Toro 136-6081

HYD TUBE ASM

$112.99

$

Usually ships in 3-6 days

0

35:5

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

36

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

38

Toro 340-142

FITTING-ELBOW-90

$105.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

38:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

39

Toro 340-148

FITTING-TEE

$297.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

39:2

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

40

Toro 340-14

FITTING-HYD, 45 DEG

$56.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

40:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

41

Toro 138-0233

HYD HOSE ASM

$153.99

$

Usually ships in 3-6 days

0

42

Toro 138-2343

SHAFT-CONTROL

$114.99

$

Usually ships in 3-6 days

0

43

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro 237-161

O-RING

$9.99

$

In Stock, only 2 left!

0

48

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

50

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

54

Toro 138-4702

HYD HOSE ASM

$96.99

$

Usually ships in 3-6 days

0

55

Toro 138-4701

HYD HOSE ASM

$114.99

$

Usually ships in 3-6 days

0

57

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

58

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

59

Toro 95-5658

FITTING-HYD, SPECIAL

$660.99

$

Usually ships in 3-6 days

0

60

Toro 136-4875

SWITCH-PRESSURE

$699.99

$

Usually ships in 3-6 days

0

60:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

61

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

0

61:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

61:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

62

Toro 100-5530

FITTING-45 DEG

$175.99

$

Usually ships in 3-6 days

0

62:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

62:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0
