22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 405539999) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

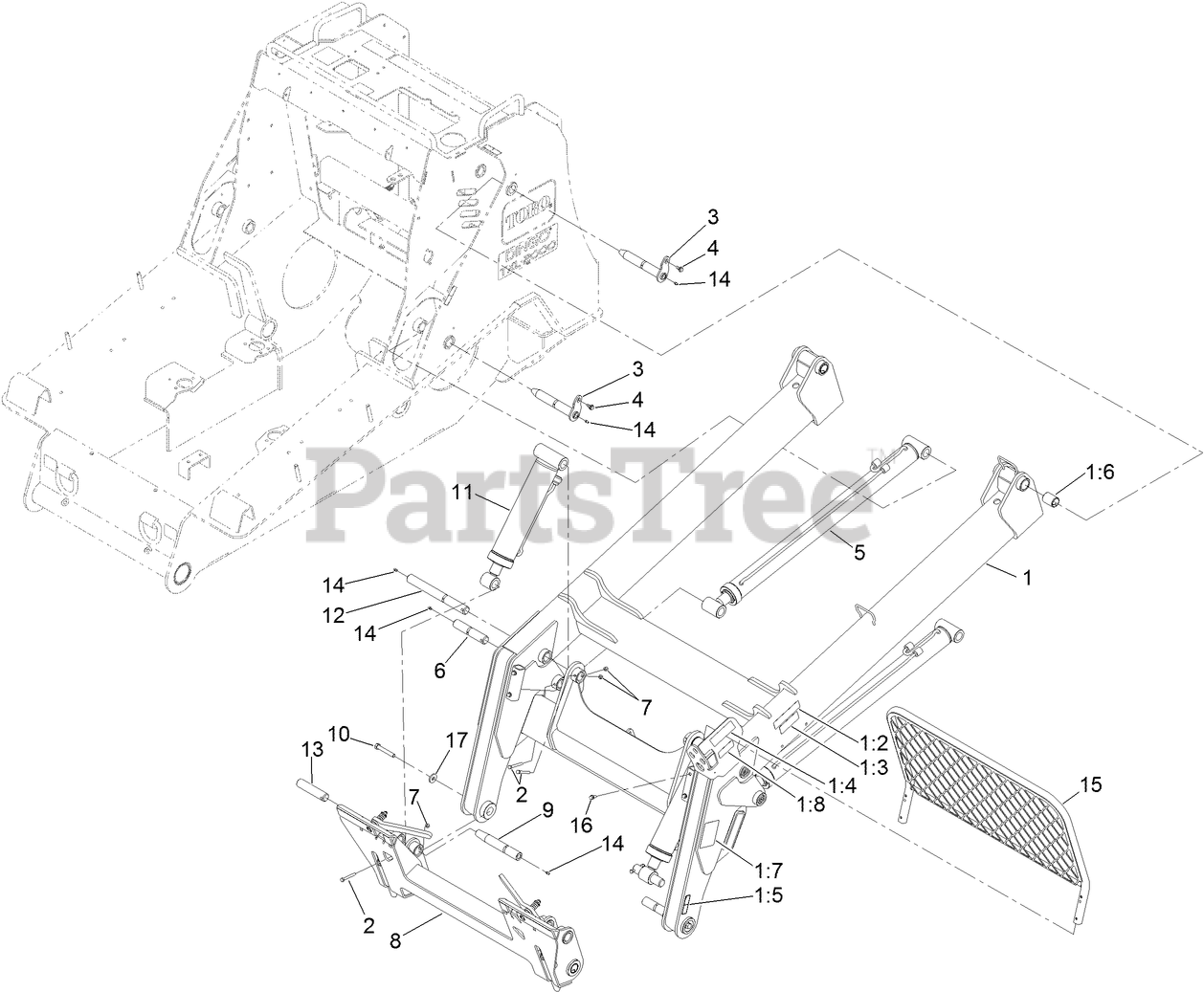

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 138-4732

LOADER ARM ASM

$8850.99

$

Usually ships in 3-6 days

0

1:2

Toro 139-1158

DECAL-WARNING, CRUSHING

$8.99

$

Usually ships in 3-6 days

0

1:3

Toro 139-1159

DECAL-WARNING, BYSTANDERS

$13.99

$

Usually ships in 3-6 days

0

1:4

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

1:5

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.99

$

Usually ships in 3-6 days

0

1:6

Toro 137-0126

BUSHING-SPRING

$32.99

$

Usually ships in 3-6 days

0

1:7

Toro 139-1164

DECAL-WARNING, BUCKET

$15.99

$

Usually ships in 3-6 days

0

1:8

Toro 139-1173

DECAL-WARNING, HYD PRESSURE

$6.49

$

Usually ships in 3-6 days

0

2

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

3

Toro 137-0132

PIVOT PIN ASM

$134.99

$

Usually ships in 3-6 days

0

4

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

5

Toro 132-1685

HYD CYL ASM

$1840.99

$

Usually ships in 3-6 days

0

6

Toro 132-8427

PIN-LINK

$87.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 132-8468

QTACH ASM

$3407.99

$

Usually ships in 3-6 days

0

9

Toro 139-1169

PIN-LINK, TAPER
(Superseded to 139-5731)

$161.99

$

Usually ships in 3-6 days

0

10

Toro 112-7264

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

11

Toro 132-1701

HYD CYL ASM

$1500.99

$

In Stock, only 1 left!

0

12

Toro 132-8445

PIN-LINK

$161.99

$

Usually ships in 3-6 days

0

13

Toro 139-1170

PIN-LINK

$62.99

$

In Stock, only 2 left!

0

14

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

15

Toro 139-1195-03

SCREEN-DEBRIS

$974.99

$

Usually ships in 3-6 days

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

17

Toro 92-2651

WASHER

$5.49

$

In Stock, Qty 10

0
