22533 - Toro Trencher Head for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) Trencher Head Assembly Parts Diagram

Trencher Head for TXL 2000 Compact Utility Loader

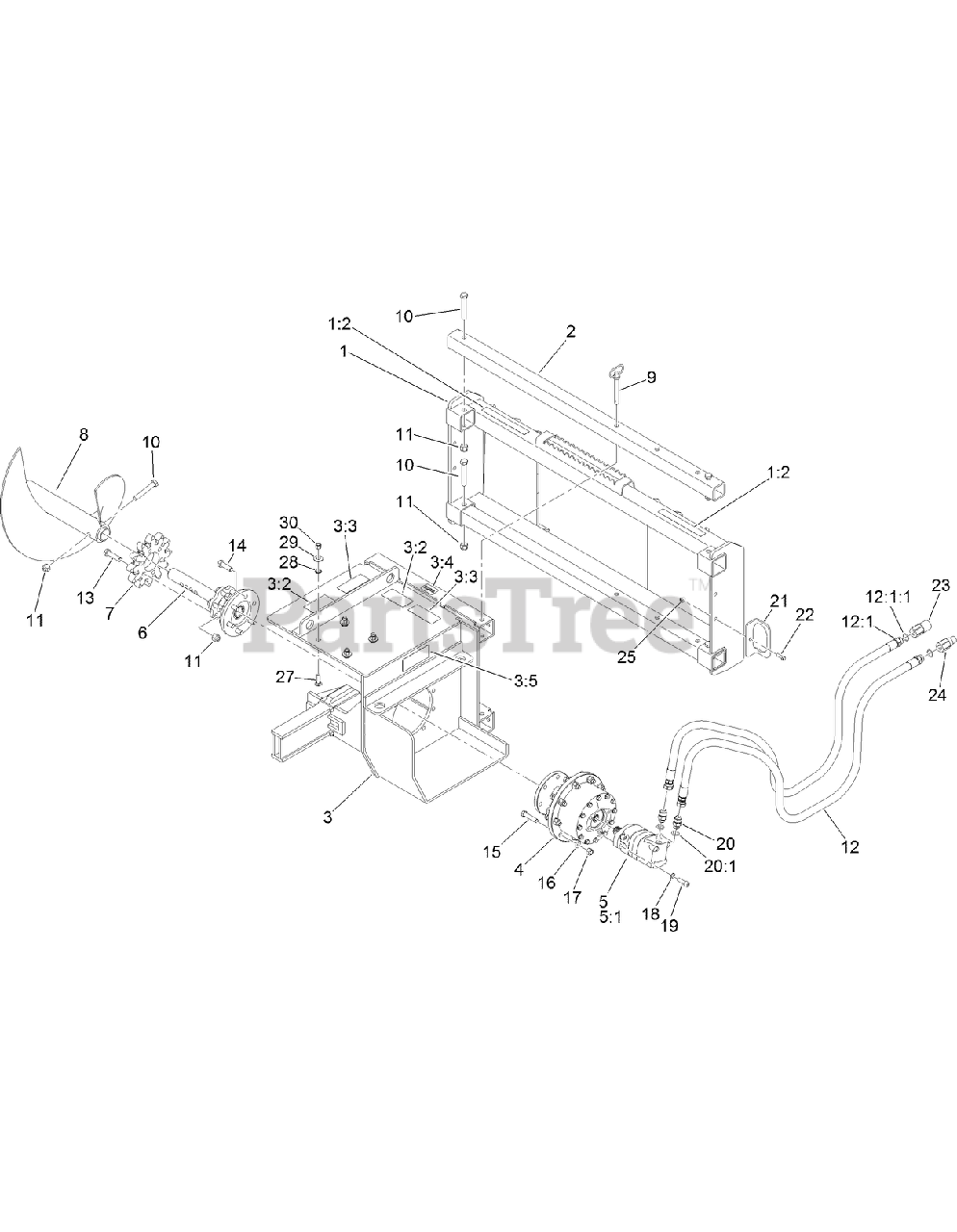

Trencher Head Assembly Parts Diagram

  • Title

1

Toro 139-2780

FRAME ASM

$1841.99

$

Usually ships in 3-6 days

0

1:2

Toro 139-2804

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

2

Toro 137-8918

TUBE-ADJUSTMENT

$265.99

$

Usually ships in 3-6 days

0

3

Toro 139-2779

HEAD FRAME ASM

$2366.99

$

Usually ships in 3-6 days

0

3:2

Toro 131-0711

DECAL-WARNING, PINCH POINT

$9.99

$

Usually ships in 3-6 days

0

3:3

Toro 131-2539

DECAL-DANGER

$2.99

$

Usually ships in 3-6 days

0

3:4

Toro 98-3206

DECAL

$2.49

$

In Stock, only 1 left!

0

3:5

Toro 125-6128

DECAL-WARNING

$

$

Currently unavailable

4

Toro 137-8922

PLANETARY ASM

$

$

Currently unavailable

5

Toro 137-8923

HYD MOTOR ASM
(Superseded to 100-4657)

$

$

Not available

5:1

Toro 139-1406

SEAL KIT

$452.99

$

Usually ships in 3-6 days

0

6

Toro 137-8924

SHAFT-DRIVE

$422.99

$

Usually ships in 3-6 days

0

7

Toro 137-8925

SPROCKET-DRIVE

$864.99

$

Usually ships in 3-6 days

0

8

Toro 137-8928

AUGER-SPOIL

$766.99

$

Usually ships in 3-6 days

0

9

Toro 137-8943

PIN-HITCH

$49.99

$

Usually ships in 3-6 days

0

10

Toro HDW01706

SCREW-HHCS

$4.99

$

Usually ships in 3-6 days

0

11

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

12

Toro 137-9019

HOSE ASM

$450.99

$

Usually ships in 3-6 days

0

12:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

12:1:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

13

Toro 327-7

SCREW-HH

$14.99

$

In Stock, only 1 left!

0

14

Toro 327-6

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

15

Toro 119-1042

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

16

Toro 137-8944

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

17

Toro 99-4371

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

18

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

19

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

20

Toro 01-201-3290

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

21

Toro 137-8936

GUIDE-HOSE

$31.99

$

Usually ships in 3-6 days

0

22

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

23

Toro 137-9006

FITTING-ADAPTER

$180.99

$

Usually ships in 3-6 days

0

24

Toro 137-9007

FITTING-ADAPTER

$107.99

$

Usually ships in 3-6 days

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 3233-14

SCREW-CARR

$18.99

$

In Stock, Qty 20+

0

28

Toro 1-323142

NUT-PUSH

$2.99

$

Usually ships in 3-6 days

0

29

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

30

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
