22534 - Toro Brush Cutter for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) Brush Cutter Assembly Parts Diagram

Brush Cutter for TXL 2000 Compact Utility Loader

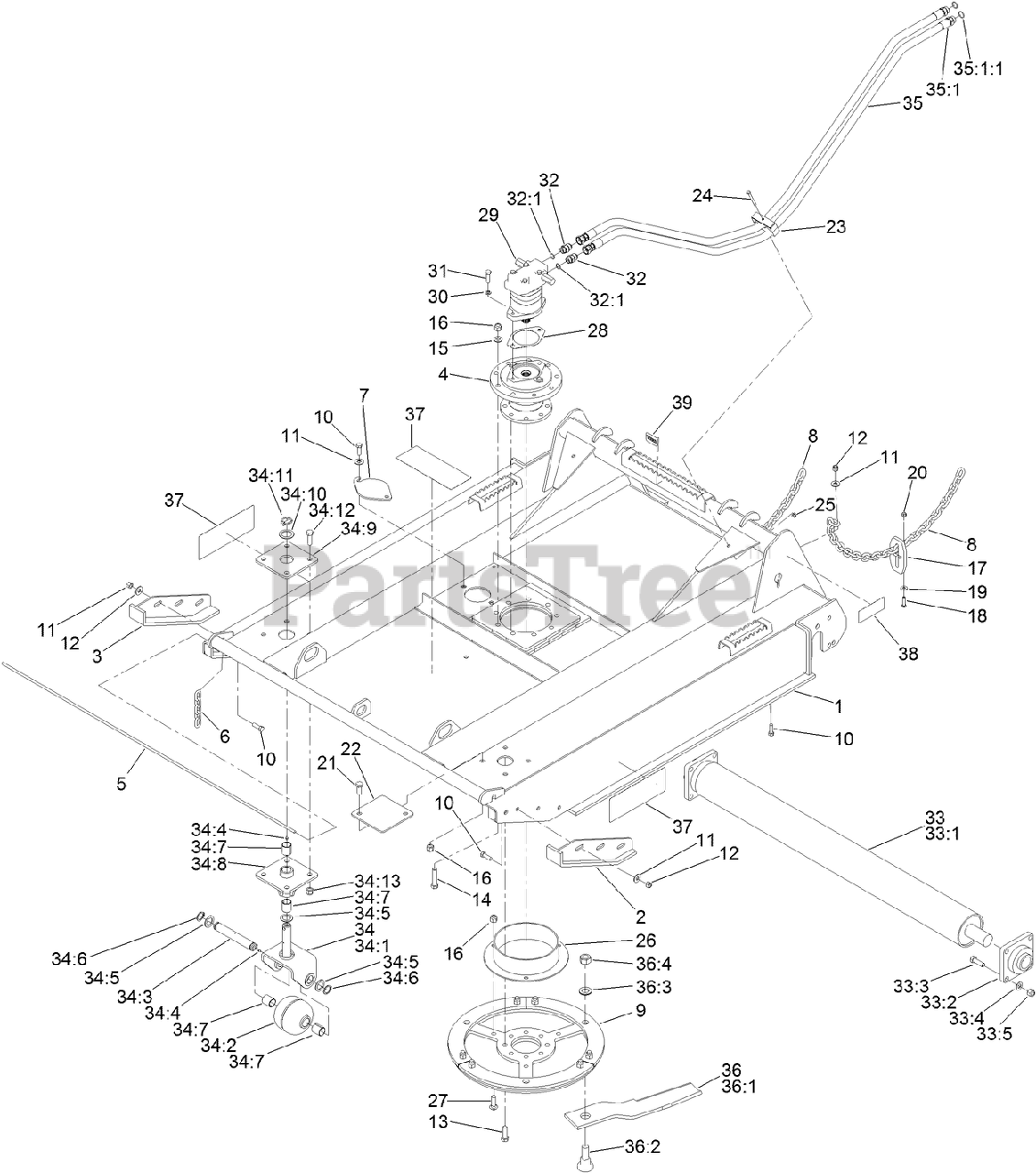

Brush Cutter Assembly Parts Diagram

  • Title

1

DECK ASM

Note: Not serviced separately

$

$

Not available

2

Toro 138-4313

PLATE-SKID, LH

$178.99

$

Usually ships in 3-6 days

0

3

Toro 138-4314

PLATE-SKID, RH

$

$

Currently unavailable

4

Toro 138-4315

ADAPTER-BEARING

$6103.99

$

Usually ships in 3-6 days

0

5

Toro 138-4317

ROD-SUPPORT, CHAIN

$19.99

$

Usually ships in 3-6 days

0

6

Toro 138-4316

CHAIN-LINK

$8.99

$

Usually ships in 3-6 days

0

7

Toro 138-4318

COVER-ACCESS, BLADE BOLT

$22.99

$

Usually ships in 3-6 days

0

8

Toro 138-4319

CHAIN-LIMITING, LIFT

$144.99

$

Usually ships in 3-6 days

0

9

Toro 138-4324

BLADE CARRIER ASSEMBLY

$1055.99

$

Usually ships in 3-6 days

0

10

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

11

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 327-6

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

14

Toro 104-5895

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

17

Toro 138-4330

PLATE-LIMITING, LIFT

$29.99

$

Usually ships in 3-6 days

0

18

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 138-4332

PLATE-COVER, CASTER

$29.99

$

Usually ships in 3-6 days

0

23

Toro 137-8969

CLAMP-HOSE

$26.99

$

Usually ships in 3-6 days

0

24

Toro 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 138-4333

GUARD-SPINDLE

$207.99

$

Usually ships in 3-6 days

0

27

Toro HDW05603

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

28

Toro 138-4334

GASKET

$15.99

$

Usually ships in 3-6 days

0

29

Toro 138-4329

HYDRAULIC MOTOR ASM

$4658.99

$

Usually ships in 3-6 days

0

29:1

Toro 139-1406

SEAL KIT

Note: Not illustrated

$452.99

$

Usually ships in 3-6 days

0

30

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

31

Toro 121-1524

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

32

Toro 01-201-3290

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

33

Toro 138-4337

BRUSH CUTTER ROLLER ASM

$2199.99

$

Usually ships in 3-6 days

0

33:1

Toro 138-4336

ROLLER ASM

$1792.99

$

Usually ships in 3-6 days

0

33:2

Toro 137-9016

BEARING-FLANGED

$148.99

$

Usually ships in 3-6 days

0

33:3

Toro 327-6

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

33:4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

33:5

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

34

Toro 138-4340

BRUSH CUTTER CASTER ASM

Note: Optional Equipment

$2964.99

$

Usually ships in 3-6 days

0

34:1

Toro 138-4339

SWIVEL-CASTER

$668.99

$

Usually ships in 3-6 days

0

34:2

Toro 138-4338

WHEEL-CASTER
(Superseded to 138-4339)

$668.99

$

Usually ships in 3-6 days

0

34:3

Toro 137-3895

PIN-PIVOT

$53.99

$

Usually ships in 3-6 days

0

34:4

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

34:5

Toro 137-3897

WASHER

$4.49

$

Usually ships in 3-6 days

0

34:6

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

34:7

Toro 137-4896

BUSHING

$13.99

$

Usually ships in 3-6 days

0

34:8

Toro 138-4341

MOUNT-LOWER, CASTER

$298.99

$

Usually ships in 3-6 days

0

34:9

Toro 139-1417

PLATE-CASTER

$43.99

$

Usually ships in 3-6 days

0

34:10

Toro 137-4898

WASHER

$8.49

$

Usually ships in 3-6 days

0

34:11

Toro 283-71

PIN-LYNCH

$6.49

$

In Stock, only 4 left!

0

34:12

Toro 327-6

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

34:13

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

35

Toro 138-5193

HYD HOSE ASM

$369.99

$

Usually ships in 3-6 days

0

35:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

35:1:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

36

Toro 138-5237

60IN ROTARY BLADE KIT

$699.99

$

Usually ships in 3-6 days

0

36:1

Toro 138-4325

BLADE
(Superseded to 138-5237)

$699.99

$

Usually ships in 3-6 days

0

36:2

Toro 138-4326

BOLT-BLADE

$67.99

$

Usually ships in 3-6 days

0

36:3

Toro 138-4327

WASHER-LOCK

$52.99

$

Usually ships in 3-6 days

0

36:4

Toro 138-4328

NUT-LOCK

$29.99

$

Usually ships in 3-6 days

0

37

Toro 138-0538

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

38

Toro 125-6128

DECAL-WARNING

$

$

Currently unavailable

39

Toro 98-3206

DECAL

$2.49

$

In Stock, only 1 left!

0
