22585 - Toro Snow Thrower for Dingo Compact Utility Loader (SN: 320000001 - 320999999) (2020) Chute Assembly Parts Diagram

Snow Thrower for Dingo Compact Utility Loader

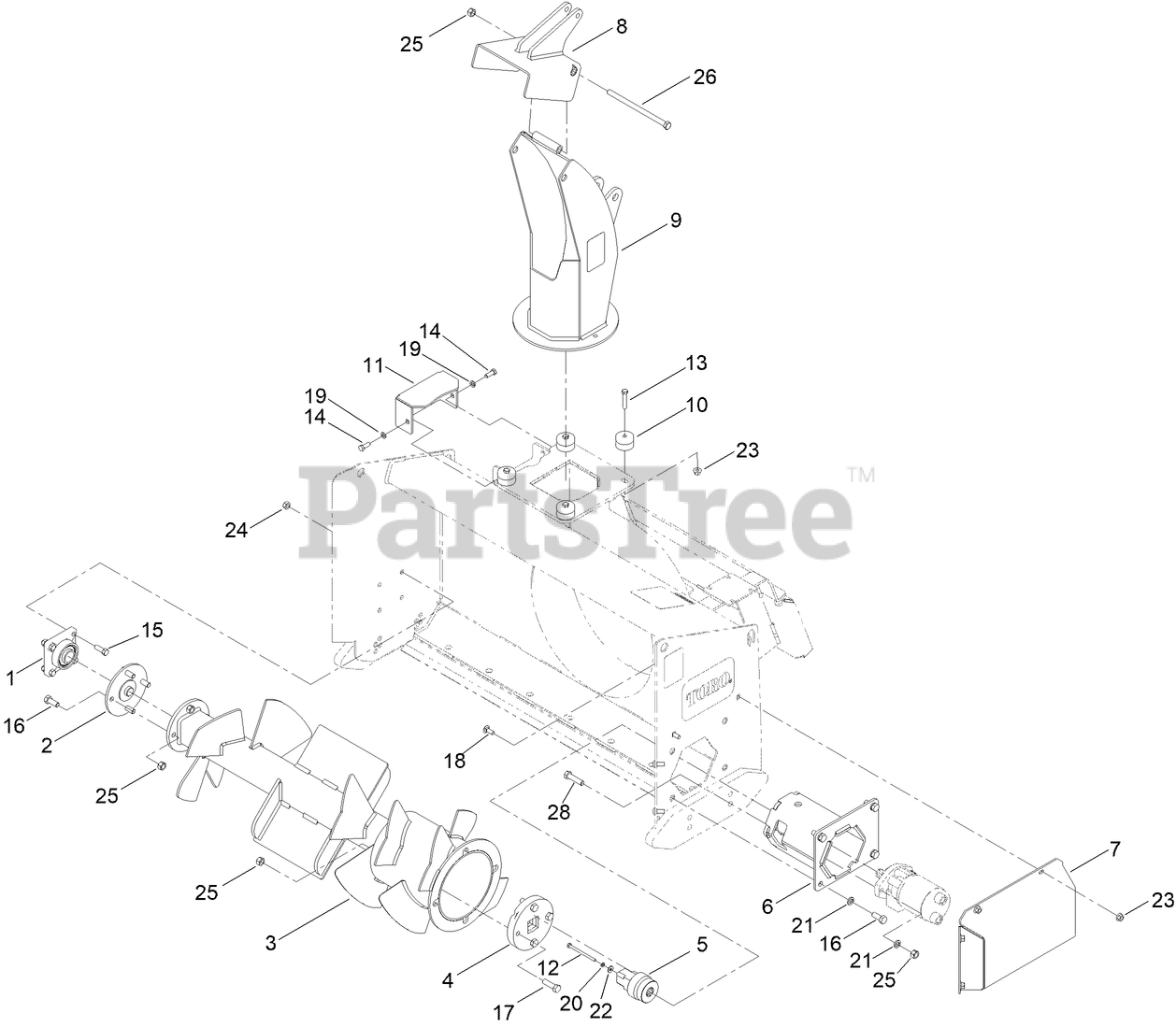

Chute Assembly Parts Diagram

  • Title

1

Toro 144-1252

BEARING

$192.99

$

Usually ships in 3-6 days

0

2

Toro 144-1257

PLATE

$212.99

$

Usually ships in 3-6 days

0

3

Toro 144-1258

PADDLE ASM

$1627.99

$

Usually ships in 3-6 days

0

4

Toro 144-1263

COUPLER-PADDLE/MOTOR

$

$

Currently unavailable

5

Toro 144-1262

ADAPTER- MOTOR

$399.99

$

Usually ships in 3-6 days

0

6

Toro 144-1259

HOUSING-PADDLE MOTOR

$468.99

$

Usually ships in 3-6 days

0

7

Toro 144-1261

HOUSING- HOSE PROTECTOR

$222.99

$

Usually ships in 3-6 days

0

8

Toro 144-1253

DEFLECTOR

$454.99

$

Usually ships in 3-6 days

0

9

Toro 144-2518

CHUTE

$1475.99

$

Usually ships in 3-6 days

0

10

Toro 144-1268

MOUNT-DEFLECTOR

$72.99

$

Usually ships in 3-6 days

0

11

Toro 144-1270

COVER-CHUTE MOTOR SHAFT

$84.99

$

Usually ships in 3-6 days

0

12

Toro 321-28

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

13

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 325-7

SCREW-HH

$2.49

$

In Stock, Qty 15

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

20

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

23

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

24

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

25

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 8

0

26

Toro 9114314

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

28

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0
