22588 HD (TX 1000) - Toro Turbo Wide Track Dingo Compact Utility Loader (SN: 417200000 - 418299999) Loader Arm Assembly Parts Diagram

Turbo Wide Track Dingo Compact Utility Loader

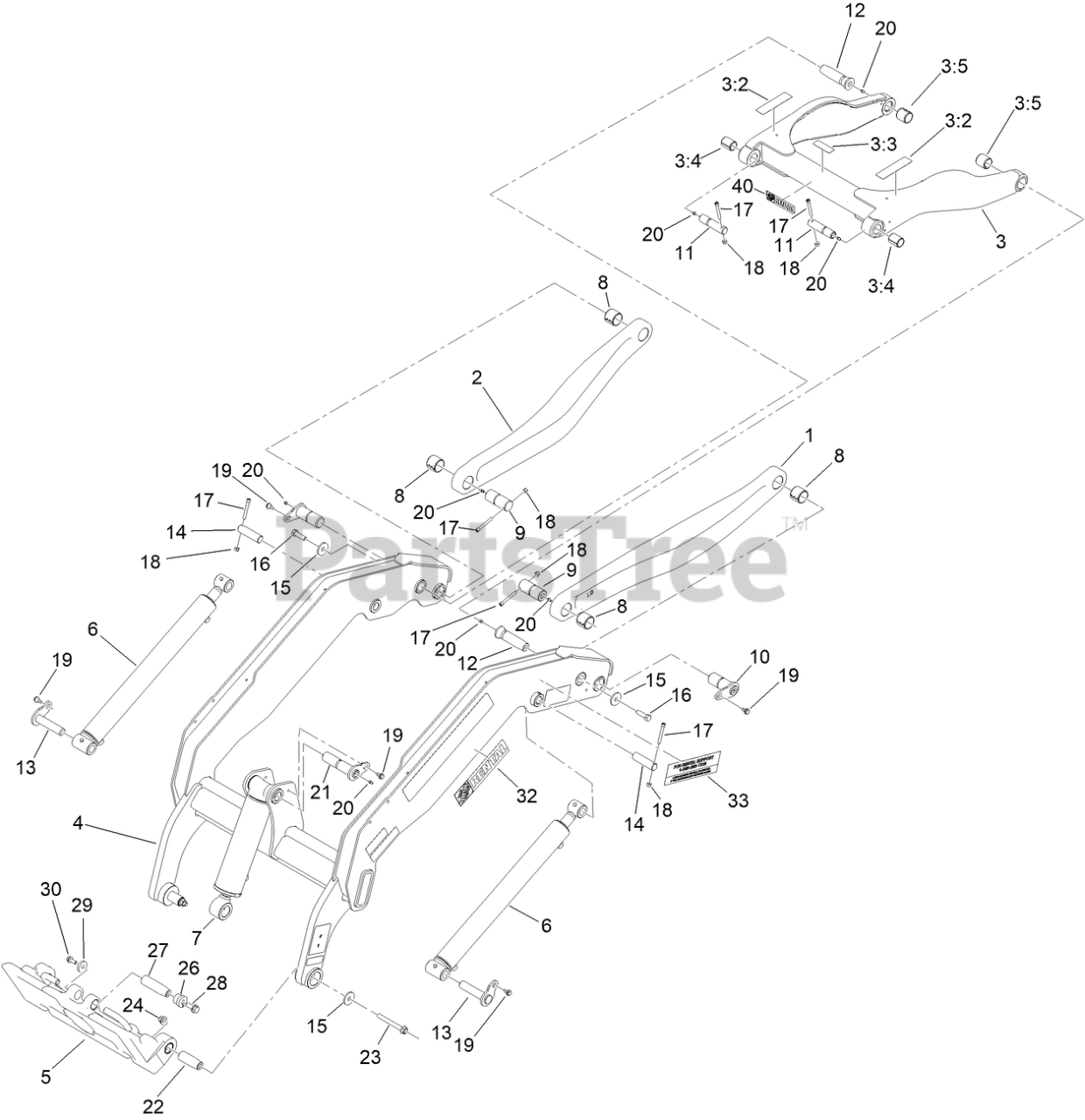

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 147-6797-05

LINK-LOWER, LH [BLK-TXT]

$471.99

$

Usually ships in 3-6 days

0

2

Toro 147-6799-05

LINK-LOWER, RH [BLK-TXT]

$471.99

$

Usually ships in 3-6 days

0

3

Toro 145-4314

UPPER LINK ASM-LOADER

$1276.99

$

Usually ships in 3-6 days

0

3:2

Toro 139-1158

DECAL-WARNING, CRUSHING

$8.99

$

Usually ships in 3-6 days

0

3:3

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.99

$

Usually ships in 3-6 days

0

3:4

Toro 130-5200

BUSHING-SPRING

$21.99

$

In Stock, only 1 left!

0

3:5

Toro 139-5737

BUSHING-SPRING

$28.99

$

Usually ships in 3-6 days

0

4

Toro 145-4307

LOADER ARM ASM-WT

$5485.99

$

Usually ships in 3-6 days

0

5

Toro 140-6017

ATTACHMENT PLATE ASM

$1552.99

$

Usually ships in 3-6 days

0

6

Toro 140-7634

CYLINDER HYD (2.25X20.16 DOUBLE ACTION)

$798.99

$

Usually ships in 3-6 days

0

7

Toro 147-6889

CYL-HYD

$940.99

$

In Stock, only 1 left!

0

8

Toro 130-5199

BUSHING-SPRING

$28.99

$

In Stock, only 2 left!

0

9

Toro 125-3748

PIN-ARM

$71.99

$

Usually ships in 3-6 days

0

10

Toro 136-4708

PIN-PIVOT

$100.99

$

In Stock, only 1 left!

0

11

Toro 125-3695

PIN-LINK

$68.99

$

Usually ships in 3-6 days

0

12

Toro 145-4312

PIN-TAPER

$36.99

$

Usually ships in 3-6 days

0

13

Toro 147-6705

PIN-FLAG

$37.99

$

Usually ships in 3-6 days

0

14

Toro 130-5178

PIN-PIVOT

$46.99

$

In Stock, only 1 left!

0

15

Toro 106-2008

WASHER-THRUST

$8.49

$

Usually ships in 3-6 days

0

16

Toro 121-1524

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

17

Toro 3274-40

SCREW-HSH

$7.49

$

Usually ships in 3-6 days

0

18

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

20

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

21

Toro 137-0134

FLAG PIN ASM

$123.99

$

Usually ships in 3-6 days

0

22

Toro 140-6019

PIN-LINK,TAPER

$71.99

$

Usually ships in 3-6 days

0

23

Toro 117-3176

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

24

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

26

Toro 181-1002

INSERT-TAPERED

$35.99

$

Usually ships in 3-6 days

0

27

Toro 140-6076

PIN-TAPERED

$87.99

$

Usually ships in 3-6 days

0

28

Toro 137-4653

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

29

Toro 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

30

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

32

Toro 161-2307

DECAL - HDHLW3X10

$

$

Currently unavailable

33

Toro 131-0715

DECAL-CPER0002

$

$

Currently unavailable

40

Toro 161-2308

DECAL - HDHLW1X5

$

$

Currently unavailable
