22588 (TX 1000) - Toro Turbo Wide Track Dingo Compact Utility Loader (SN: 417036414 - 417375292) Cooling Water System Assembly Parts Diagram

Turbo Wide Track Dingo Compact Utility Loader

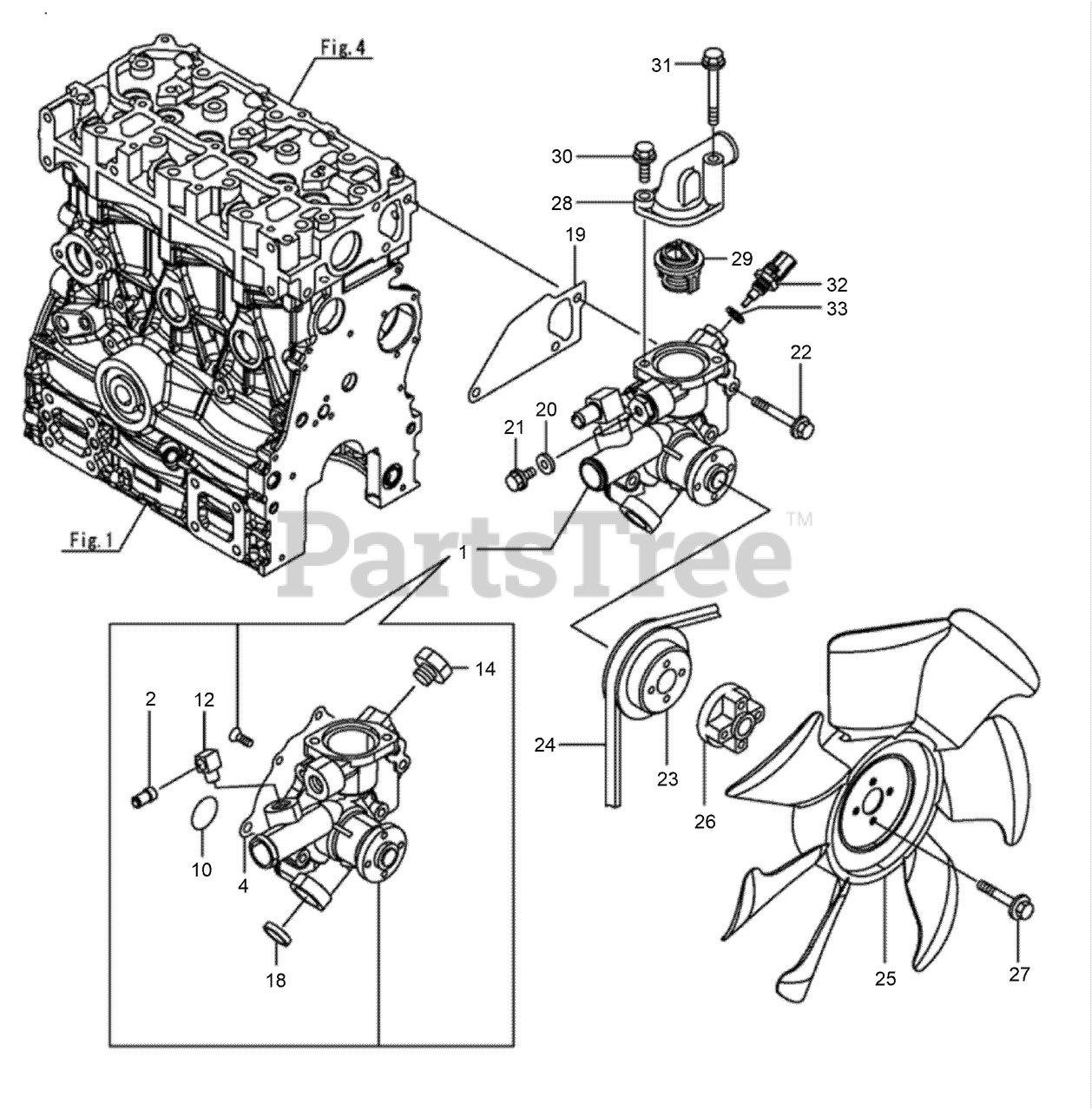

Cooling Water System Assembly Parts Diagram

  • Title

1

Toro 163-1104

PUMP ASSY, CW

$1437.99

$

Usually ships in 3-6 days

0

2

Toro 135-4191

JOINT-PIPE

$85.99

$

Usually ships in 3-6 days

0

4

Toro 135-4188

GASKET

$70.99

$

Usually ships in 3-6 days

0

10

Toro 135-4190

O-RING

$12.99

$

Usually ships in 3-6 days

0

12

Toro 163-1105

JOINT, WATER RETURN

$

$

Currently unavailable

14

Toro 135-4203

JOINT

$26.99

$

Usually ships in 3-6 days

0

18

Toro 163-1106

PLUG, 25

$

$

Currently unavailable

19

Toro 135-4193

GASKET-WATER PUMP

$22.99

$

Usually ships in 3-6 days

0

20

Toro 125-7192

GASKET

$1.49

$

Usually ships in 3-6 days

0

21

Toro 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

22

Toro 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0

23

Toro 134-1417

V-PULLEY

$106.99

$

Usually ships in 3-6 days

0

24

Toro 163-1107

V-BELT, A36

$88.99

$

Usually ships in 3-6 days

0

25

Toro 135-4196

FAN-COOLING 1

$85.99

$

Usually ships in 3-6 days

0

26

Toro 127-4768

SPACER

$141.99

$

Usually ships in 3-6 days

0

27

Toro 135-4147

BOLT

$3.49

$

Usually ships in 3-6 days

0

28

Toro 135-4199

COVER-THERMOSTAT

$186.99

$

Usually ships in 3-6 days

0

29

Toro 135-4200

THERMOSTAT

$95.99

$

Usually ships in 3-6 days

0

30

Toro 135-4201

BOLT

$2.99

$

Usually ships in 3-6 days

0

31

Toro 135-4202

BOLT

$3.99

$

Usually ships in 3-6 days

0

32

Toro 125-7124

SENSOR-THERMOSTAT, CW

$124.99

$

Usually ships in 3-6 days

0

33

Toro 125-7176

WASHER-SEAL

$8.99

$

Usually ships in 3-6 days

0
