22588 (TX 1000) - Toro Turbo Wide Track Dingo Compact Utility Loader (SN: 417036414 - 417375292) Lube Oil System Assembly Parts Diagram

Turbo Wide Track Dingo Compact Utility Loader

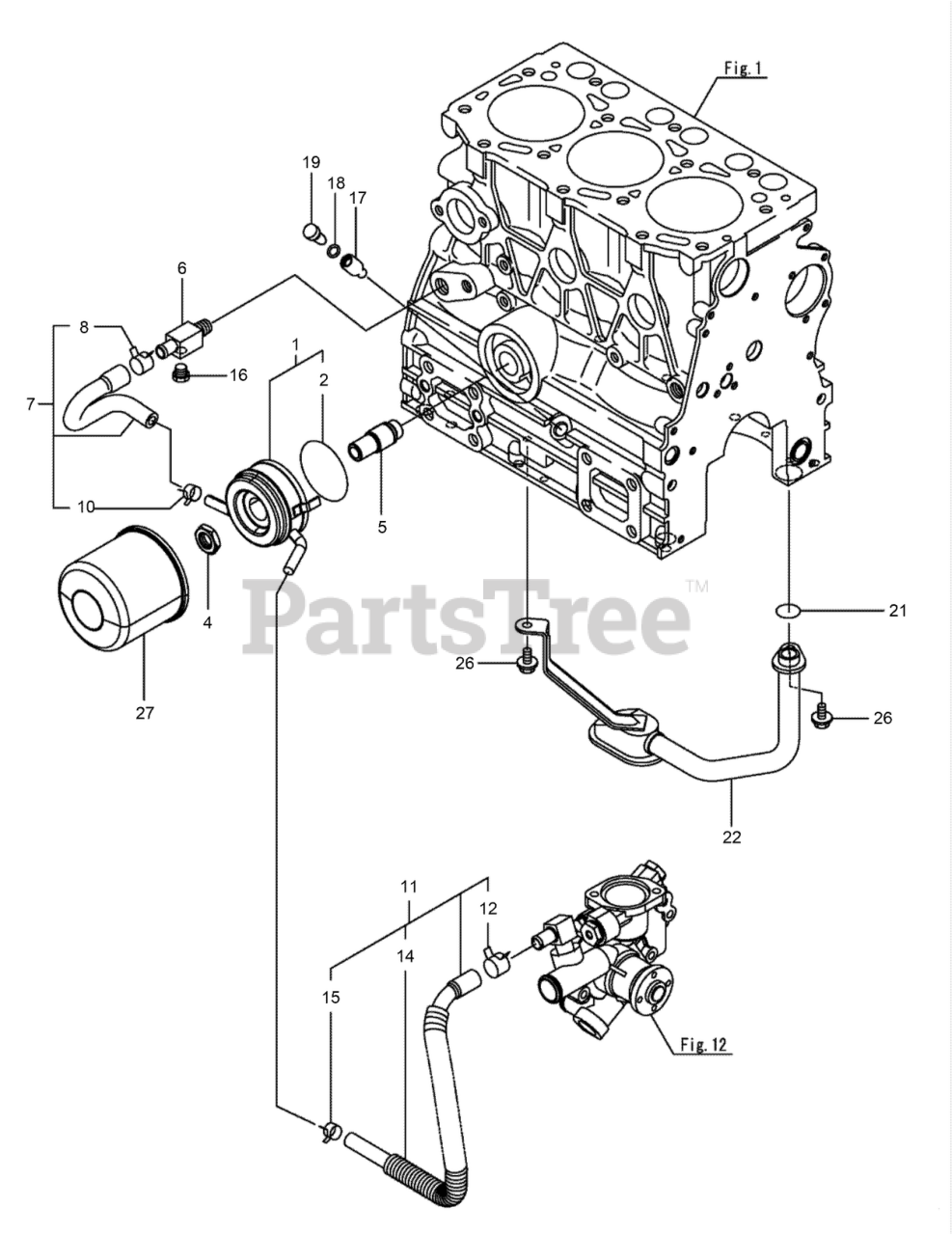

Lube Oil System Assembly Parts Diagram

  • Title

1

Toro 163-1102

COOLER ASSY, OIL

$2714.99

$

Usually ships in 3-6 days

0

2

Toro 135-4019

PACKING-OIL COOLER

$19.99

$

Usually ships in 3-6 days

0

4

Toro 135-4020

NUT

$12.99

$

Usually ships in 3-6 days

0

5

Toro 163-1103

STUD, LO FILTER

$

$

Currently unavailable

6

Toro 125-6990

JOINT

$76.99

$

Usually ships in 3-6 days

0

7

Toro 135-4176

PIPE ASM-COOLER IN

$92.99

$

Usually ships in 3-6 days

0

8

Toro 125-7162

CLIP

$7.99

$

Usually ships in 3-6 days

0

10

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

11

Toro 125-7079

PIPE ASM

$48.99

$

Usually ships in 3-6 days

0

12

Toro 125-7162

CLIP

$7.99

$

Usually ships in 3-6 days

0

14

Toro 125-6946

TUBE

$51.99

$

Usually ships in 3-6 days

0

15

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

16

Toro 125-7171

PLUG-DRAIN

$27.99

$

Usually ships in 3-6 days

0

17

Toro 145-7837

GUIDE, DIPSTICK

$72.99

$

Usually ships in 3-6 days

0

18

Toro 145-7887

O-RING, 4DP10A

$

$

Currently unavailable

19

Toro 137-5132

PLUG-DIPSTICK

$13.99

$

Usually ships in 3-6 days

0

21

Toro 135-4178

O-RING

$5.99

$

Usually ships in 3-6 days

0

22

Toro 134-1414

OIL INLET PIPE ASM

$128.99

$

Usually ships in 3-6 days

0

26

Toro 125-7205

BOLT

$3.49

$

Usually ships in 3-6 days

0

27

Toro 135-4181

FILTER ENGINE OIL

$20.99

$

In Stock, only 4 left!

0
