22590 - Toro Grapple Bucket for Dingo Compact Utility Loader (SN: 320000001 - 320999999) (2020) Grapple Bucket Assembly Parts Diagram

Grapple Bucket for Dingo Compact Utility Loader

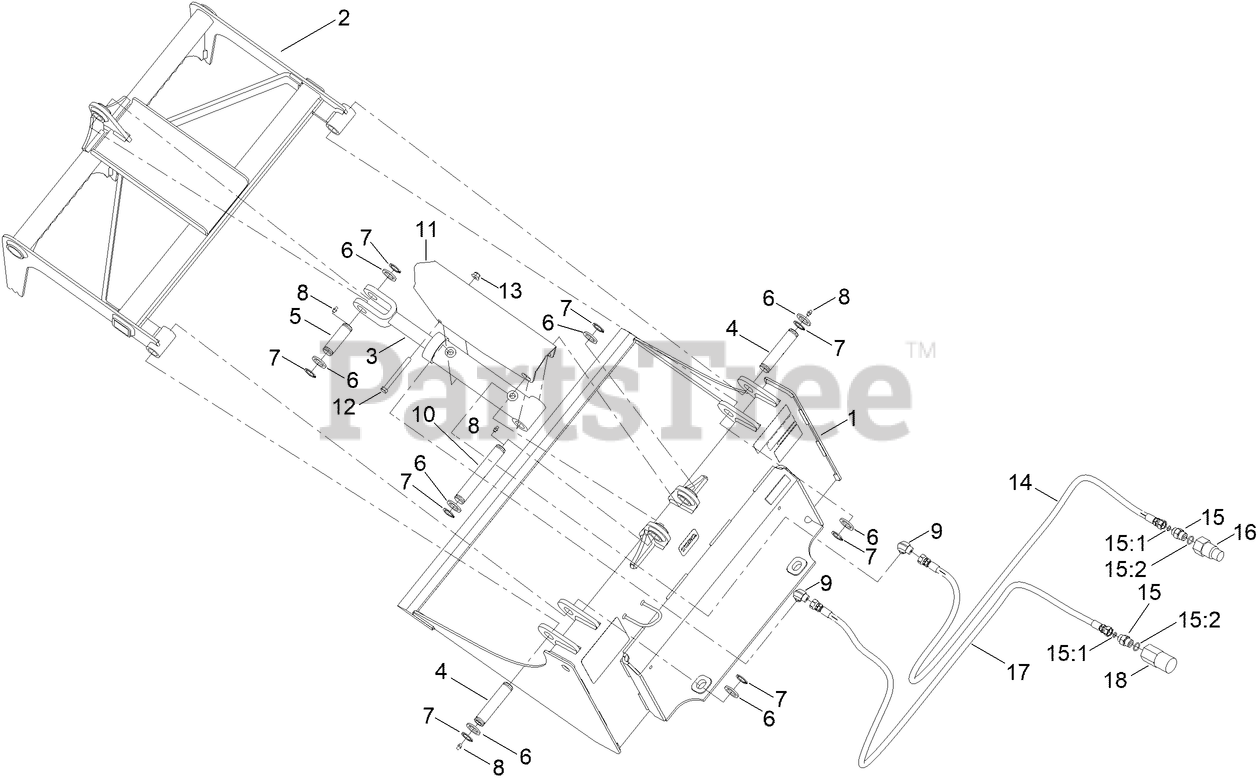

Grapple Bucket Assembly Parts Diagram

  • Title

1

Toro 137-6577

BCKT-GRPL BCKT

$2028.99

$

Usually ships in 3-6 days

0

2

Toro 140-3006

GRAPPLE-BUCKET

$1078.99

$

Usually ships in 3-6 days

0

3

Toro 139-7173

CYLINDER-HYD

$1199.99

$

Usually ships in 3-6 days

0

4

Toro 139-7175

PIN-PIVOT

$36.99

$

Usually ships in 3-6 days

0

5

Toro 139-7176

PIN-PIVOT

$34.99

$

Usually ships in 3-6 days

0

6

Toro 131-8570

SPACER-HARDENED

$3.99

$

In Stock, only 2 left!

0

7

Toro 32151-36

RING-RETAINING

$5.49

$

In Stock, Qty 20+

0

8

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

9

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-22

O-RING

Note: Not illustrated

$2.99

$

In Stock, Qty 16

0

9:2

Toro 237-42

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 14

0

10

Toro 137-8968

PIN-HINGE

$45.99

$

Usually ships in 3-6 days

0

11

Toro 138-9935

GUARD - GRPL BUCKET

$

$

Currently unavailable

12

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 2 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 140-3004

HOSE-HYD ASM

$

$

Currently unavailable

15

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

15:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

16

Toro 139-7168

COUPLER-MALE

$

$

Not available

17

Toro 140-3005

HOSE-HYD ASM

$

$

Currently unavailable

18

Toro 139-7167

COUPLER-FEMALE

$

$

Not available
