22615 (SGR-13) - Toro Stump Grinder (SN: 407000000 - 412999999) Wheel and Brake Assembly Parts Diagram

Stump Grinder

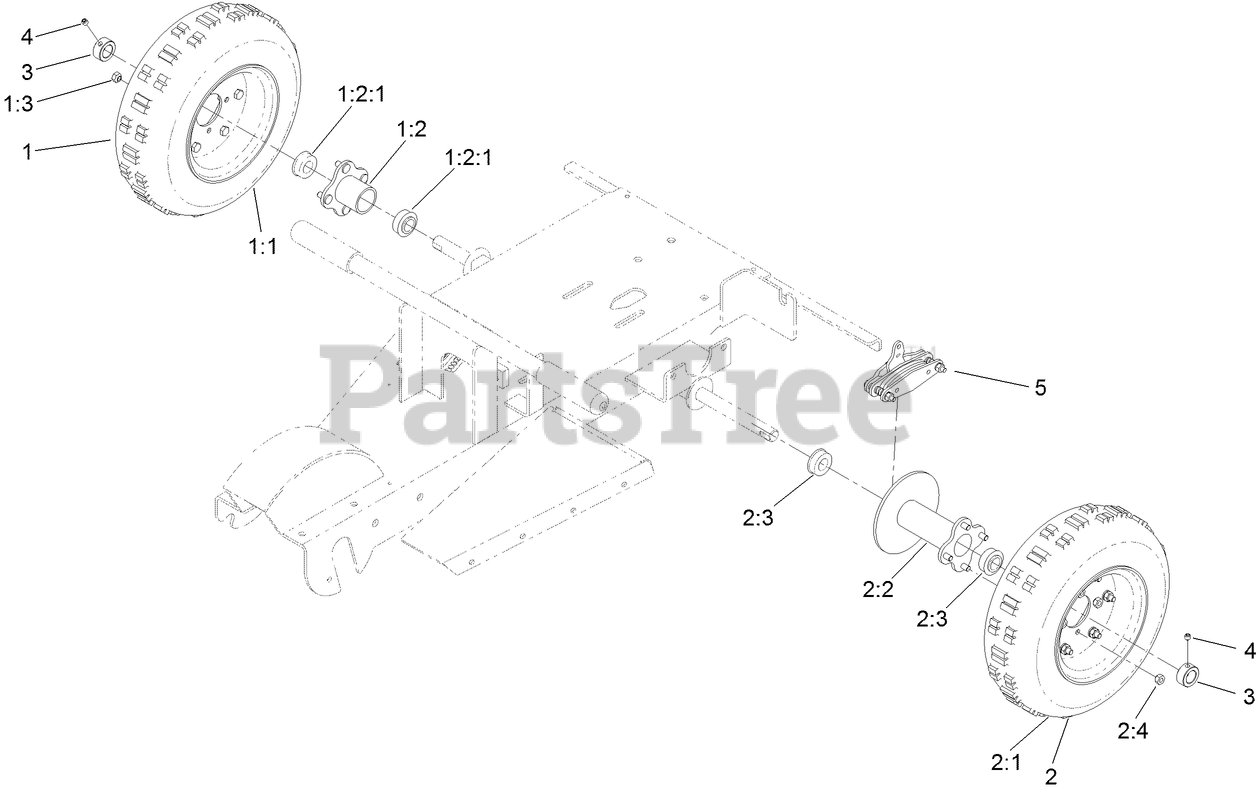

Wheel and Brake Assembly Parts Diagram

  • Title

1

Toro 120-1216

TIRE ASM (W/ HUB)

$167.99

$

Usually ships in 3-6 days

0

1:1

Toro 120-1287

TIRE ASM
(Superseded to 147-7017)

$186.99

$

Usually ships in 3-6 days

0

1:2

Toro 120-1295

HUB

$45.99

$

Usually ships in 3-6 days

0

1:2:1

Toro 120-1296

BEARING-WHEEL

$6.49

$

In Stock, only 4 left!

0

1:3

Toro 120-1304

NUT-WHEEL

$1.99

$

Usually ships in 3-6 days

0

2

Toro 120-1214

TIRE ASM (W/ HUB AND BRAKE)

$196.99

$

Usually ships in 3-6 days

0

2:1

Toro 120-1287

TIRE ASM
(Superseded to 147-7017)

$186.99

$

Usually ships in 3-6 days

0

2:2

Toro 120-1297

HUB

$96.99

$

Usually ships in 3-6 days

0

2:3

Toro 120-1296

BEARING-WHEEL

$6.49

$

In Stock, only 4 left!

0

2:4

Toro 120-1304

NUT-WHEEL

$1.99

$

Usually ships in 3-6 days

0

3

Toro 120-1294

COLLAR-SET

$19.99

$

Usually ships in 3-6 days

0

4

Toro 3246-2

SCREW-SET, HSH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$0.99

$

In Stock, Qty 10

0

5

Toro 120-1773

BRAKE-CALIPER

$163.99

$

In Stock, only 2 left!

0
