22623 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) Handle Assembly Parts Diagram

Walk-Behind Mower

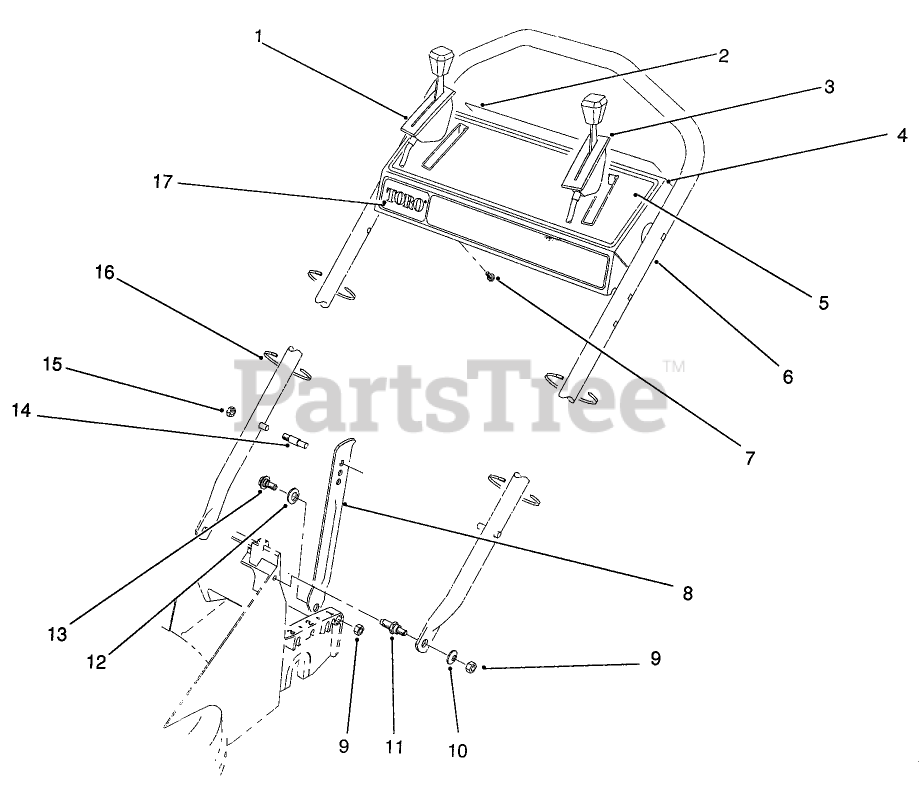

Handle Assembly Parts Diagram

  • Title

1

Toro 48-2750

DISCONTINUED

$

$

Not available

2

Toro 46-7950

See Supercession: 66-5350
(Superseded to 66-5350)

$16.99

$

Usually ships in 3-6 days

0

3

Toro 256-276

SPACER-NYLON

$3.49

$

Usually ships in 3-6 days

0

4

Toro 61-8270

See Supercession: 61-8270-03
(Superseded to 61-8270-03)

$123.99

$

Usually ships in 3-6 days

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

7

Toro 49-1630

SPACER-SUPPORT

$10.99

$

Usually ships in 3-6 days

0

8

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

9

Toro 53-7834

DISCONTINUED

$

$

Not available

10

Toro 321-11

SCREW-HH

$0.99

$

In Stock, only 1 left!

0

11

Toro 61-8260

DISCONTINUED

$

$

Not available

12

Toro 48-2810

ROD-SUPPORT, BAG

$35.99

$

Usually ships in 3-6 days

0

13

Toro 32111-7

NUT-CAP

$8.49

$

Usually ships in 3-6 days

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 27-7211

SCREW-SHOULDER

$

$

Not available

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 53-7820

See Supercession: 65-5830-03
(Superseded to 65-5830-03)

$

$

Not available

21

Toro 55-8030

TRACTION CABLE

$243.99

$

Usually ships in 3-6 days

0

22

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 3 left!

0

23

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 7

0

24

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 61-8340

See Supercession: 77-5270
(Superseded to 77-5270)

$35.99

$

Usually ships in 3-6 days

0

27

Toro 2412-99

R CLAMP

$5.99

$

Usually ships in 3-6 days

0

28

Toro 63-5040

DISCONTINUED

$

$

Not available

29

Toro 46-8081

GUIDE-ROPE

$27.99

$

Usually ships in 3-6 days

0

30

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

31

Toro 61-8290

DISCONTINUED

$

$

Not available
