22700 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Handle Assembly Parts Diagram

Walk-Behind Mower

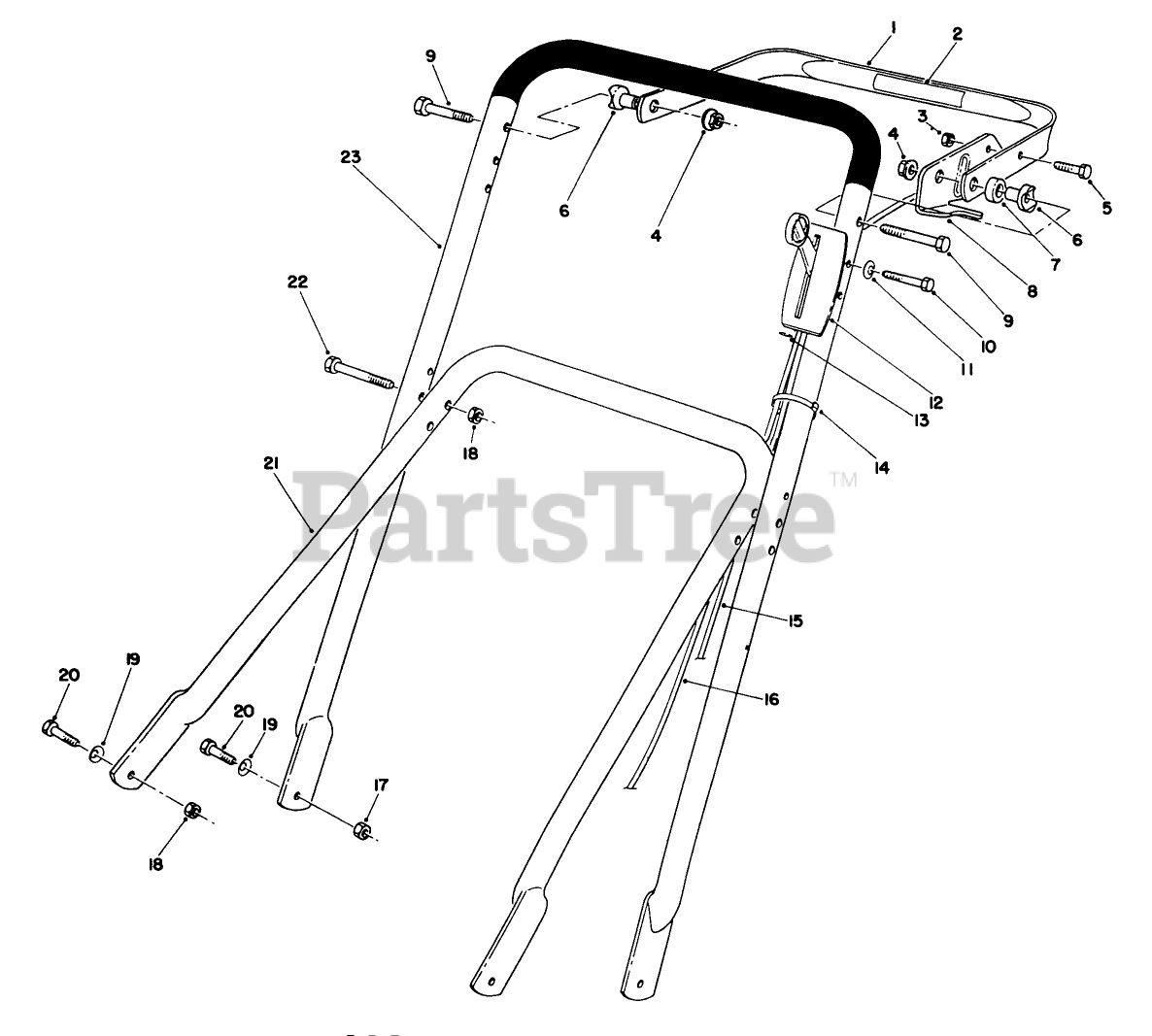

Handle Assembly Parts Diagram

  • Title

1

Toro 61-8270

See Supercession: 61-8270-03
(Superseded to 61-8270-03)

$123.99

$

Usually ships in 3-6 days

0

2

Toro 62-7590

DISCONTINUED

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 49-1630

SPACER-SUPPORT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 256-276

SPACER-NYLON

$3.49

$

Usually ships in 3-6 days

0

8

Toro 74-1820

CONTROL LEVER

$

$

Not available

9

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

10

Toro 321-13

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

11

Toro 3-7501

WASHER

$6.99

$

In Stock, Qty 8

0

12

Toro 82-9953

THROTTLE CONTROL BRKT

$

$

Not available

13

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 15

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 74-1791

CABLE-TRACTION

$55.99

$

In Stock, only 2 left!

0

16

Toro 70-1061

See Supercession: 106-0888
(Superseded to 106-0888)

$22.99

$

In Stock, only 3 left!

0

17

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 17

0

20

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 66-6150

See Supercession: 66-6150-03
(Superseded to 66-6150-03)

$209.99

$

Usually ships in 3-6 days

0

22

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

23

Toro 66-7420

See Supercession: 98-2000-03
(Superseded to 98-2000-03)

$147.99

$

Usually ships in 3-6 days

0
