22701 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Handle Assembly Parts Diagram

Walk-Behind Mower

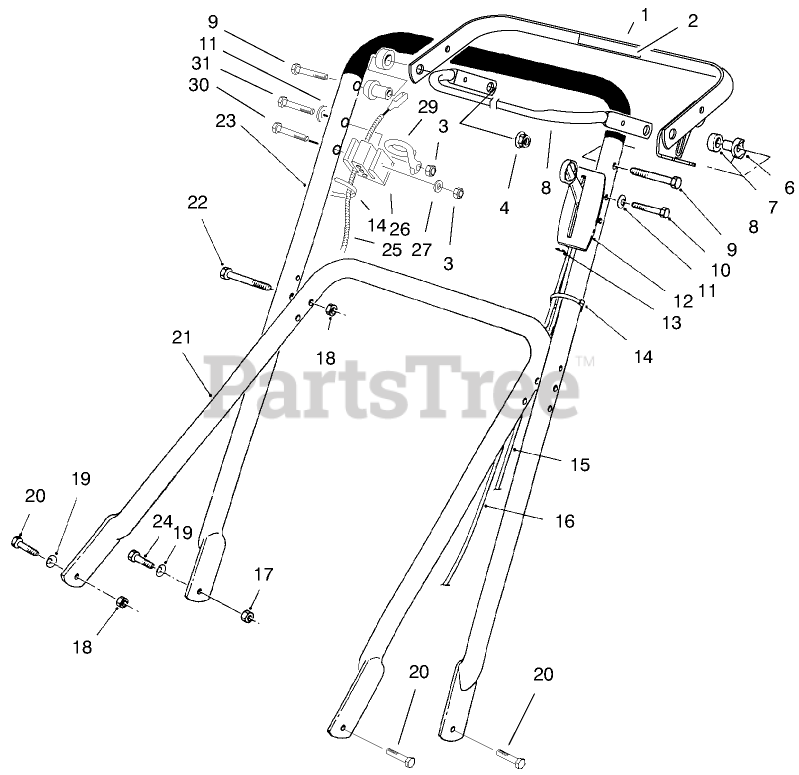

Handle Assembly Parts Diagram

  • Title

1

Toro 94-4371

See Supercession: 94-4371-03
(Superseded to 94-4371-03)

$

$

Not available

2

Toro 94-6046

DECAL-OPERATION

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 49-1631

SPACER-SUPPORT

$7.49

$

Usually ships in 3-6 days

0

7

Toro 256-276

SPACER-NYLON

$3.49

$

Usually ships in 3-6 days

0

8

Toro 94-4370

See Supercession: 94-4370-03
(Superseded to 94-4370-03)

$

$

Not available

9

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

10

Toro 321-13

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

11

Toro 3-7501

WASHER

$6.99

$

In Stock, Qty 8

0

12

Toro 82-9952

BRACKET-CONTROL, THROTTLE

$108.99

$

Usually ships in 3-6 days

0

13

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 15

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 74-1791

CABLE-TRACTION

$55.99

$

In Stock, only 2 left!

0

16

Toro 70-1061

See Supercession: 106-0888
(Superseded to 106-0888)

$22.99

$

In Stock, only 3 left!

0

17

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

20

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 66-6150

See Supercession: 66-6150-03
(Superseded to 66-6150-03)

$209.99

$

Usually ships in 3-6 days

0

22

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

23

Toro 94-4372

Handle

$

$

Currently unavailable

24

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 94-5829

CABLE - BRAKE

$

$

Not available

26

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 46-8081

GUIDE-ROPE

$27.99

$

Usually ships in 3-6 days

0

30

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

0

31

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0
